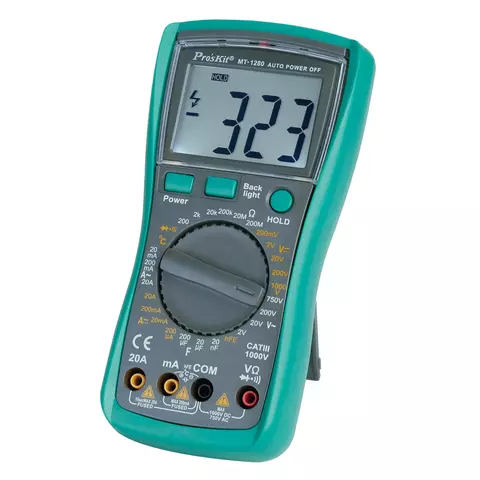

Pro'sKit MT-1280 Professional Digital Multimeter
id: 813129
Pro'sKit MT-1280 Professional Digital Multimeter
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
You may also like
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Availability in stock:
HK
ID: 834629 0.82 kg
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and can be used for continuity, transistor and diode tests.
Availability in stock:
HK
ID: 891501 0.65 kg
Frequently bought together
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
Digital multimeter Proskit MT-1280 with capacitance and temperature measurement function.
SPECIFICATIONS
| Model name | MT-1280 Digital Multimeter |
| Size (HxWxD) | 175x93x55 mm |
| Weight | 400g |
| Counts | 1999 |
| Digits | 3 1/2 |
| Auto/manual ranging | Manual |
| DC Voltage | 200mV/2V/20V/200V ±(0.5%+3d) |
1000V ±(0.8%+10d) |
|
| AC Voltage | 2V/20V/200V ±(0.8%+5d) |
750V ±(1.2%+10d) |
|
| DC Current | 200µA/20mA±(0.8%+10d) |
200mA ±(1.2%+10d) |
|
20A±(2.0%+5d) |
|
| AC Current | 20mA±(1.0%+5d) |
200mA ±(2.0%+5d) |
|
20A±(3.0%+10d) |
|
| Resistance | 200Om±(0.8%+5d) |
2/20/200KOm±(0.8%+3d) |
|
20MOm±(1.0%+25d) |
|
| Capacitance | 20nF±(2.5%+20d) |
20uF±(2.5%+20d) |
|
200uF±(5.0%+20d) |
|
| Temperature °C | (-20 °C ~1000 °C)<400±(1.0%+5d) |
(-20 °C ~1000 °C)>400 °F±(1.5%+15d) |
|
| Continuity with beeper | Yes |
| Diode | Yes |
| Transistor | Yes |
| Automatic power off | Yes |
| Low battery indication | Yes |
| ENH61010-1 CAT II/CAT III | CAT II 1000V |
| Battery | 9V(6F22) |
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| DC |
|
| AC |
|
| Frequency |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
