6.3 kg 110, 220 V Warranty: 6 months
AC/DC root-mean-square measurement. PC interface. Display counts - 53000. Software automatic calibration. High sensitivity. Storage of 30 measurements.
Description

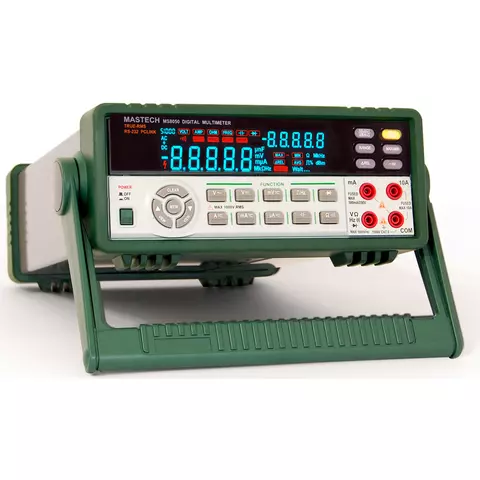

MASTECH MS8050 Professional high-accuracy digital multimeter. AC/DC root-mean-square measurement. PC interface. Display counts – 53000. Software automatic calibration. High sensitivity. Storage of 30 measurements. This model is compatible with Test Leads MASTECH T3009
Video
You'll find even more video reviews in the Video tab. Go and check it out!
MASTECH MS8050 Professional Digital Multimeter Technical Specifications
| Counts | 53 000 |
| DC voltage | 50/500mV/5/50/500/1000V ± 0.03% |
| DC + AC voltage | 50/500mV/5/50/500/1000V ± 0.5% |
| DC current | 500/5000µA/50/500mA/5/10A ± 0.15% |
| AC current | 500/5000µA/50/500mA/5A ±0.75%, 10A ±1.5% |
| Frequency | 5Hz ~ 2MHz ± 0.006%, |
| Resistance | 500Ω/5/50/500kΩ/5MΩ ±0.1%, 50MΩ ± 0.5% |
| Capacitance | 50/500nF/5/50µF ±1%, 500/5000µF ±2.0% |
| Conductivity wire identification | yes |
| Diode test | yes |
| Data Hold | yes |
| Relative measurement mode | yes |
| Pulse ratio | 10%~90%, 5Hz~500KHz |
| Power source | ~220V ± 10% or ~110V ± 10% |
| Dimensions | 350 × 250 × 100 mm |
| PC interface connection | yes |
Read more
Description
MASTECH MS8050 Professional high-accuracy digital multimeter. AC/DC root-mean-square measurement. PC interface. Display counts – 53000. Software automatic calibration. High sensitivity. Storage of 30 measurements. This model is compatible with Test Leads MASTECH T3009
Video
You'll find even more video reviews in the Video tab. Go and check it out!
MASTECH MS8050 Professional Digital Multimeter Technical Specifications
| Counts | 53 000 |
| DC voltage | 50/500mV/5/50/500/1000V ± 0.03% |
| DC + AC voltage | 50/500mV/5/50/500/1000V ± 0.5% |
| DC current | 500/5000µA/50/500mA/5/10A ± 0.15% |
| AC current | 500/5000µA/50/500mA/5A ±0.75%, 10A ±1.5% |
| Frequency | 5Hz ~ 2MHz ± 0.006%, |
| Resistance | 500Ω/5/50/500kΩ/5MΩ ±0.1%, 50MΩ ± 0.5% |
| Capacitance | 50/500nF/5/50µF ±1%, 500/5000µF ±2.0% |
| Conductivity wire identification | yes |
| Diode test | yes |
| Data Hold | yes |
| Relative measurement mode | yes |
| Pulse ratio | 10%~90%, 5Hz~500KHz |
| Power source | ~220V ± 10% or ~110V ± 10% |
| Dimensions | 350 × 250 × 100 mm |
| PC interface connection | yes |
