Overview

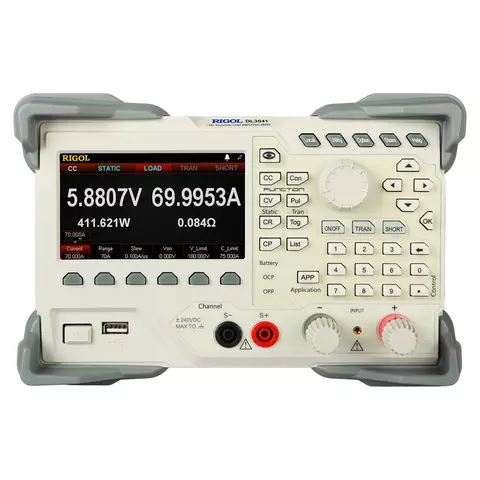

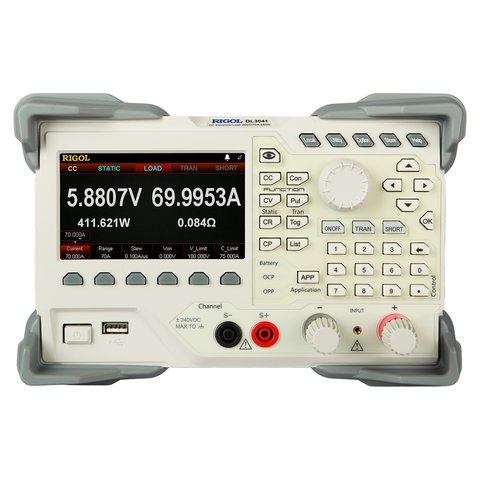

Programmable DC Electronic Load RIGOL DL3041

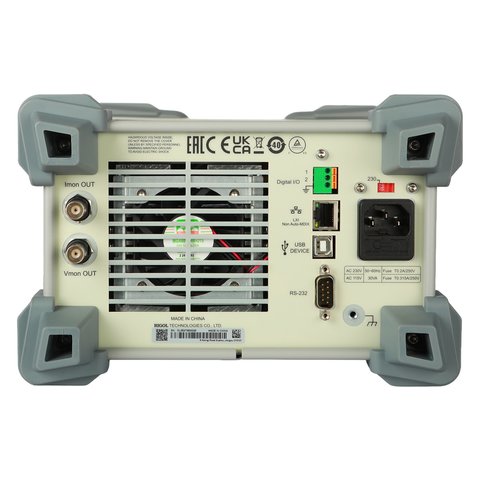

Programmable DC Electronic Load RIGOL DL3041 Preview 1

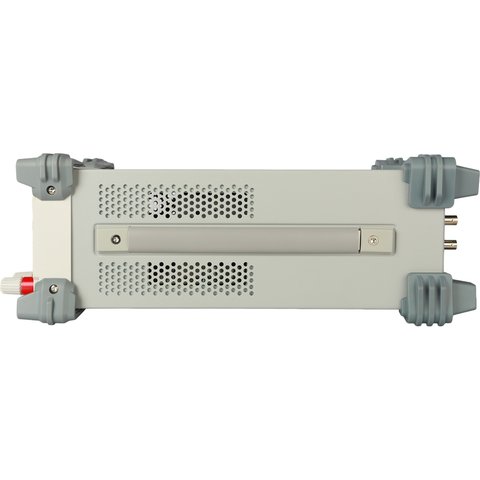

Programmable DC Electronic Load RIGOL DL3041 Preview 2

Brand:

7.8 kg Warranty: 36 months

Electronic DC load for max. 200 V, 70 A, 450 W. Equipped with USB Host, USB Device, RS232 interface and 10.9 cm (4.3") TFT LCD Read more

Price coming soon

Impossible to estimate the shipping cost

Description

RIGOL DL3041 is a cost-effective programmable DC electronic load with performance specifications that rival any instrument in its class. With a user-friendly interface including graphical charting, the DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. Test power systems and batteries with configurable static, transient, and advanced application modes.

Features

Single channel, DC 200 V/70 A, total power up to 450 W
Dynamic mode: up to 30 kHz
Adjustable current rising speed: 0.001 A/μs to 5 A/μs
Min. readback resolution: 0.1 mV，0.1 mA
4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
4 static modes: CC, CV, CR, CP
3 dynamic modes: continuous, pulsed, toggled
List function supports editing as many as 512 steps
Battery test function, OCP test, OPP test, factory test function, etc.
Short-circuit test function
Power-off memory function
Built-in RS232/USB/LAN communication interface
USB-GPIB module (optional)

Technical Specifications

Voltage		0~200 V
Current		0~70 A
Maximum Power		450 W
Minimum Operating Voltage (DC)		1.5 V@70 A
CC Mode	Range	0~7 A / 0~70 A
	Programmable Resolution	1 mA
	Programmable Accuracy	±(0.05%+0.05%FS)
	Temperature Coefficient	100 ppm/°C
CV Mode	Range	0~25 V / 0~200 V
	Programmable Resolution	1 mV / 5 mV
	Programmable Accuracy	±(0.05%+0.025%FS)
	Temperature Coefficient	50 ppm/°C
CR Mode	Range	0.08 Ω~15 Ω (0.0667 S~12.5 S) / 2 Ω~15 kΩ (0.0000667 S~0.5 S)
	Programmable Resolution	2 mA/Vsense
	Programmable Accuracy	Vin/Rset*(0.2%)+0.2%IFS
CP Mode	Range	0~450 W
CP Mode	Programmable Resolution	100 mW
Con Mode	Frequency Range	0.001 Hz~30 kHz
	Frequency Resolution	0.8%
	Frequency Accuracy	±0.5%
	Duty Cycle Range	5%~95%，1%
Current Slew Rate	Range	0.001 A/μs~5 A/μs
	Resolution	0.001 A/μs
	Accuracy	5%+10 μs
Readback Current	Range	0~70 A
	Resolution	0.1 mA
	Accuracy	±(0.05%+0.05%FS)
	Temperature Coefficient	50 ppm/°C
Readback Voltage	Range	0~200 V
	Resolution	0.1 mV
	Accuracy	±(0.05%+0.02%FS)
	Temperature Coefficient	20 ppm/℃
Readback Resistance	Range	0.08 Ω~15 kΩ (0.0000667 S ~12.5 S)
Readback Resistance	Resolution	2 mA/Vsense
Readback Power	Range	0~450 W
Readback Power	Resolution	100 mW
Protection Function		Overcurrent protection (OCP), overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), as well as local/remote reverse voltage (LRV/RRV) protection
Stability (Current / Voltage)		±(0.01%+10 mA) / ±(0.01%+10 mV)
Input Resistance		350 kΩ
Display		4.3-inch TFT LCD
Interfaces		USB Device, USB Host, LAN (optional), RS232, Digital I/O (optional), GPIB (optional)
Power	AC Input (50 Hz~60 Hz)	115 Vac±10%, 230 Vac±10% (max: 250 Vac)
Power	Maximum Input Power	<30 VA
Dimensions		239 mm(W) × 157 mm(H) × 442 mm(D)
Weight		7.80 kg
Environment	Cooling Method	Fan Cooled
	Operating Temperature	0℃ ~40℃
	Storage Temperature	-40℃ ~70℃
	Humidity	5%~80% RH (without condensation)
	Altitude	Below 2,000 m
