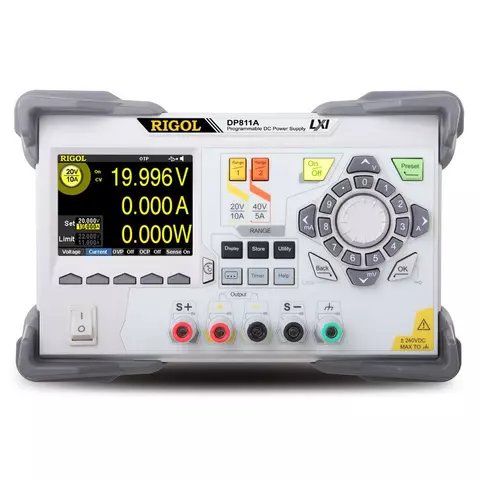

Programmable DC Power Supply Rigol DP811A

id: 844212
12 kg 110, 220 V Warranty: 36 month (s)
Single-channel programmable DC power supply. Dual range with remote control. Various analysis functions, low ripple and noise.
USD 829.00
Notify
when in stock
USD 829.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Rigol DP811A is a single-channel programmable DC power supply.

Features

  • Single channel, dual range with remote control.
  • Fast transient responce time: < 50 μs.
  • 3.5-inch TFT display.
  • Low Ripple Noise: <350 μVrms / 2 mArms
  • Fan cooling method.
  • Connectivity including USB Host & Device, LAN, RS232 and Digital IO.
  • Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.

Manuals

Download Rigol DP800A Series User's Guide.

Download Rigol DP800A Series Quick Guide.

Software

Download UltraSigma communication software.

Technical Specifications

Channels 1 (2 output scales)
Output Scale 20 V / 10 A (Low Range) 40 V / 5 A (High Range)
DC Output (measurement accuracy at 0℃ to 40℃)
Voltage 0 ~ +20 V 0 ~ +40 V
Current 0 ~ 10 A 0 ~ 5 A
OVP 0.1 V ~ 22 V 0.1 V ~ 44 V
OCP 0.1 A ~ 11 A 0.1 A ~ 5.5 A
Load Regulation Rate ±(Output Percentage + Offset)
Voltage < 0.01%+2 mV
Current <0.01%+250 μA
Linear Regulation Rate ±(Output Percentage + Offset)
Voltage <0.01%+2 mV
Current <0.01%+250 μA
Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage <350 μVrms / 2 mVpp
Normal Mode Current <2 mArms
Annual Accuracy (25℃±5℃) ±(Output Percentage + Offset)
Programming Voltage 0.05%+10 mV
Current 0.1%+10 mA
Readback Voltage 0.05% + 10 mV
Current 0.1% + 10 mA
Resolution
Programming Voltage 1 mV
Current 0.5 mA
Readback Voltage 0.1 mV
Current 0.1 mA
Display Voltage 1 mV
Current 1 mA
Command Processing Time <100 ms
Temperature Coefficient per℃ (Output Percentage + Offset)
Voltage 0.01%+3 mV
Current 0.02%+3 mA
Stability ±(Output Percentage + Offset)
Voltage 0.02% + 1 mV
Current 0.1% + 1 mA
Voltage Programming Control Speed (1% within the total variation range)
Rise Full Load < 20 ms
No Load < 20 ms
Fall Full Load < 50 ms
No Load < 400 ms
OVP/OCP
Accuracy ±(Output Percentage + Offset) 0.5%+0.5 V / 0.5%+0.5 A
Activation Time 1.5 ms (OVP≥ 3V)
Mechanical <10 ms (OVP<3V and OCP)
General Specifications
Interfaces USB Device, USB Host, LAN, RS232, Digital IO
Power AC Input (50 Hz to 60 Hz)
100 V AC+10%, 115 V AC+10%
230 V AC+10% (maximum 250 V AC)
Dimensions 239 × 157 × 418 mm
Weight 10.3 kg

Package Contents

  • Rigol DP811A Programmable DC Power Supply – 1 pc.
  • Power cord – 1 pc.
  • USB data cable – 1 pc.
  • Fuse (50T-025H 250V 2.5A) – 1 pc.
Specifications
Type
  • transformer
  • programmable
Number of channels
  • single-channel
Max. Current
  • up to 10 A
Indicator type
  • 3.5" color LCD
Max. Voltage
  • up to 40 V
