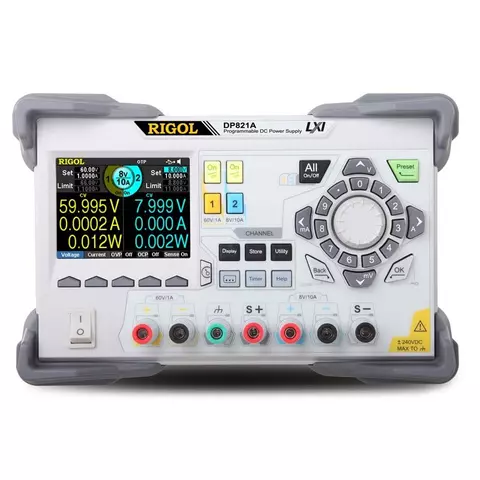

Programmable DC Power Supply Rigol DP821A

id: 844213
12 kg 110, 220 V Warranty: 36 month (s)
Dual channel programmable DC power supply, various analysis functions, low ripple and noise.
USD 790.00
Notify
when in stock
USD 790.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Rigol DP821A is a dual-channel programmable DC power supply.

Features

  • 2 channels, 60 V / 1 A || 8 V / 10 A.
  • Fast transient responce time: < 50 μs.
  • 3.5-inch TFT display.
  • Low Ripple Noise: <350 μVrms / 2 mArms.
  • Fan cooling method.
  • Independent control for each channel.
  • Connectivity including USB Host & Device, LAN, RS232 and Digital IO, USB-GPIB (Opt.).
  • Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.

Manuals

Download Rigol DP800A Series User's Guide.

Download Rigol DP800A Series Quick Guide.

Software

Download UltraSigma communication software.

Technical Specifications

Channels 2
  8 V / 10 A 60 V / 1 A
DC Output (measurement accuracy at 0℃ to 40℃)
Voltage 0 ~ +8 V 0 ~ +60 V
Current 0 ~ 10 A 0 ~ 1 A
OVP 0.1 V ~ 8.8 V 0.1 V ~ 44 V
OCP 0.1 A ~ 10.5 A 0.1 V ~ 1.1 A
Load Regulation Rate ±(Output Percentage + Offset)
Voltage < 0.01%+2 mV
Current <0.01%+250 μA
Linear Regulation Rate ±(Output Percentage + Offset)
Voltage <0.01%+2 mV
Current <0.01%+250 μA
Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage <350 μVrms / 2 mVpp
Normal Mode Current <2 mArms
Annual Accuracy (25℃±5℃) ±(Output Percentage + Offset)
Programming Voltage 8V/10A:<0.05%+10 mV
60V/1A:<0.1%+25 mV
Current 0.2%+10 mA
Readback Voltage 8V/10A:0.05%+5 mV
60V/1A:<0.1%+25 mV
Current 0.15% + 10 mA
Resolution
Programming Voltage 8V/10A:1 mV
60V/1A:10 mV
Current 8V/10A:1 mA
60V/1A:0.1 mA
Readback Voltage 60V/1A:1 mV
8V/10A:1 mV
Current 60V/1A:0.1 mA
8V/10A:1 mA
Display Voltage 60V/1A:10 mV
8V/10A:1 mV
Current 60V/1A:0.1 mA
8V/10A:1 mA
Command Processing Time <100 ms
Temperature Coefficient per℃ (Output Percentage + Offset)
Voltage 0.01%+3 mV
Current 0.02%+3 mA
Stability ±(Output Percentage + Offset)
Voltage 0.02% + 1 mV
Current 0.1% + 1 mA
OVP/OCP
Accuracy ±(Output Percentage + Offset) 0.5%+0.5 V / 0.5%+0.5 A
Activation Time 1.5 ms (OVP≥ 3 V)
<10ms (OVP<3V and OCP)
General Specifications
Interfaces USB Device, USB Host, LAN, RS232, Digital IO, USB-GPIB (opt.).
Power AC Input (50 Hz to 60 Hz)
100 V AC+10%, 115 V AC+10%
230 V AC+10% (maximum 250 V AC)
Dimensions 239 × 157 × 418 mm
Weight 10 kg

Package Contents

  • Rigol DP821A Programmable DC Power Supply – 1 pc.
  • Power cord – 1 pc.
  • USB data cable – 1 pc.
  • Fuse (50T-025H 250V 2.5A) – 1 pc.
Specifications
Type
  • transformer
  • programmable
Number of channels
  • dual-channel
Max. Current
  • up to 10 A
Max. Voltage
  • up to 60 V
Indicator type
  • 3.5" color LCD
