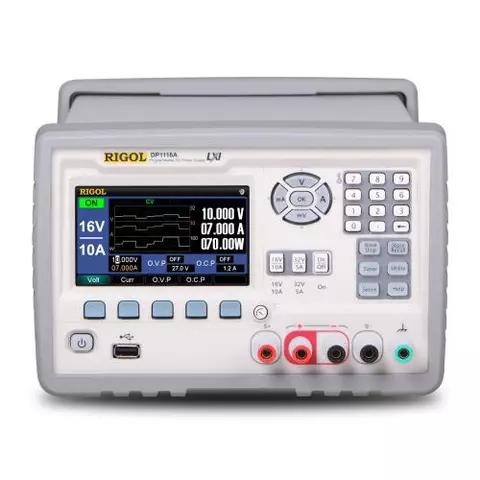

Programmable Power Supply Rigol DP1116A
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
8 kg 220 V Warranty: 36 months
Single channel power supply Rigol DP1116A is designed for supplying up to 32 V and 10 A DC. Voltage and current can be programmed and time dependence can be monitored.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Single channel, 160 Wt power supply Rigol DP1116A is designed for supplying up to 32 V and 10 A DC. Rigol DP1116A is highly precise in programming voltage and current, has low ripple and noise.

Rigol DP1116A Programmable Power Supply User Manuals

Download Rigol DP1116A Programmable power supply user manual

Download additional information about Rigol DP1116A Programmable power supply

Rigol DP1116A Programmable Power Supply Features

  • 4.3" true color LCD display
  • Programmable Power Supply Rigol DP1116A
  • Clean power with low ripple noise
  • Programmable Power Supply Rigol DP1116A
  • Excellent line and load regulation rate
  • Fast transient response time
  • Overcurrent and overvoltage protection function
  • Store and recall system setups
  • Up to 100 timing settings support
  • Programmable Power Supply Rigol DP1116A
  • USB device, USB host, LAN, GPIB interfaces
  • Programmable Power Supply Rigol DP1116A
  • USB flash drive storage support

Rigol DP1116A Programmable Power Supply Technical Specifications

v
Scale 16 V / 10 A 32 V / 5 A
Output ratings Voltage 0 - 16 V 0 - 32 V
Current 0 - 10 A 0 - 5 A
Overvoltage protection 0.1 V - 35.2 V
Overcurrent protection 0.1 A - 11 A
Load regulation ± (output percentage + offset) Voltage
Current
Line regulation ± (output percentage + offset) Voltage
Current
Ripple and noise Normal mode voltage
Normal mode current
Program mind accuracy Voltage 0.05% + 10 mV
Current 0.2% + 10 mA
Read back accuracy Voltage 0.05% + 5 mV
Current 0.15% + 5 mA
Resolution Programming 1 mV/1 mA
Read back
Meter
Transient response time less than 50 µs
Remote sensing up to 1V voltage drop for each load lead
Command processing time
Temperature coefficient Voltage 0.01% + 3 mV
Current 0.02% + 3 mA
Stability Voltage 0.02% + 1 mV
Current 0.1% + 1 mA
OVP/OCP Accuracy 0.5% + 0.5 V / 0.5% + 0.5 A
Activation time 1.5 ms (OVP ≤3 V);
Dimensions, mm 235 × 155 × 384
Weight, kg 11

Rigol DP1116A Programmable Power Supply Package

  • Programmable power supply Rigol DP1116A
  • USB cable
  • Power cord
  • Backup fuse
  • Calibration form
  • Warranty card
Read more
Description

Single channel, 160 Wt power supply Rigol DP1116A is designed for supplying up to 32 V and 10 A DC. Rigol DP1116A is highly precise in programming voltage and current, has low ripple and noise.

Rigol DP1116A Programmable Power Supply User Manuals

Download Rigol DP1116A Programmable power supply user manual

Download additional information about Rigol DP1116A Programmable power supply

Rigol DP1116A Programmable Power Supply Features

  • 4.3" true color LCD display
  • Programmable Power Supply Rigol DP1116A
  • Clean power with low ripple noise
  • Programmable Power Supply Rigol DP1116A
  • Excellent line and load regulation rate
  • Fast transient response time
  • Overcurrent and overvoltage protection function
  • Store and recall system setups
  • Up to 100 timing settings support
  • Programmable Power Supply Rigol DP1116A
  • USB device, USB host, LAN, GPIB interfaces
  • Programmable Power Supply Rigol DP1116A
  • USB flash drive storage support

Rigol DP1116A Programmable Power Supply Technical Specifications

v
Scale 16 V / 10 A 32 V / 5 A
Output ratings Voltage 0 - 16 V 0 - 32 V
Current 0 - 10 A 0 - 5 A
Overvoltage protection 0.1 V - 35.2 V
Overcurrent protection 0.1 A - 11 A
Load regulation ± (output percentage + offset) Voltage < 0.01% + 2 mV
Current < 0.005% + 250 µA
Line regulation ± (output percentage + offset) Voltage < 0.01% + 2 mV
Current < 0.01% + 250 µA
Ripple and noise Normal mode voltage < 350 µVrms/3 mVpp
Normal mode current < 2 mA rms
Program mind accuracy Voltage 0.05% + 10 mV
Current 0.2% + 10 mA
Read back accuracy Voltage 0.05% + 5 mV
Current 0.15% + 5 mA
Resolution Programming 1 mV/1 mA
Read back
Meter
Transient response time less than 50 µs
Remote sensing up to 1V voltage drop for each load lead
Command processing time < 50 ms
Temperature coefficient Voltage 0.01% + 3 mV
Current 0.02% + 3 mA
Stability Voltage 0.02% + 1 mV
Current 0.1% + 1 mA
OVP/OCP Accuracy 0.5% + 0.5 V / 0.5% + 0.5 A
Activation time 1.5 ms (OVP ≤3 V); < 10 ms (OVP < 3 V) < 10 ms (OCP)
Dimensions, mm 235 × 155 × 384
Weight, kg 11

Rigol DP1116A Programmable Power Supply Package

  • Programmable power supply Rigol DP1116A
  • USB cable
  • Power cord
  • Backup fuse
  • Calibration form
  • Warranty card
Specifications
Type
  • pulse
  • programmable
Number of channels
  • single-channel
Max. Current
  • up to 10 A
Max. Voltage
  • up to 32 V
Indicator type
  • 4.3" color LCD display
