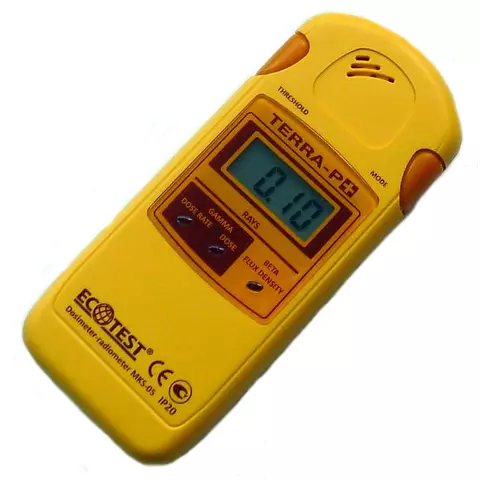

Radiation Detector EcoTest TERRA-P+ MKS-05

id: 840555
0.15 kg Warranty: 12 month (s)
TERRA-P+ is a new version of world-known dosimeter TERRA-P. It can measure surface beta-particles flux density with capability of automatic subtraction of gamma background, has 5 independent measuring channels.
USD 259.00
Notify
when in stock
USD 259.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

In comparison with TERRA-P MKS-05 dosimeter-radiometer, TERRA-P+ has new features::

  • wider measurement range of gamma radiation ambient dose equivalent rate
  • measurement of surface beta-particles flux density
  • measurement of ambient dose equivalent accumulation time
  • automatic subtraction of gamma background at measurement of beta contamination
  • programming of threshold level values:
    • gamma radiation ambient dose equivalent rate
    • gamma radiation ambient dose equivalent
    • surface beta-particles flux density
  • digital display backlight
  • wider operating temperature range.

Technical Specifications

Measurement ranges and main relative errors
Gamma radiation dose equivalent rate (137Cs), µSv/h 0.1…5 000; 25+2/H*(10)
Gamma radiation dose equivalent (137Cs), mSv 0,001-9999
Beta-particles flux density (90Sr+90Y), 1/(cm²)·min) 10-100000; 25 + 200/φβ
Dose equivalent accumulation time and accuracy of measurement, 1min…100h ±0.1s per 24h
Energy ranges of measurement and energy dependence
Gamma radiation, MeV 0.05…3.0;
±25%
Beta radiation, MeV 0.5…3.0
Ranges of threshold level values programming for:
- ambient dose equivalent rate, µSv/h
- ambient dose equivalent, mSv
- flux density, 10³/cm²·min

0-5000
0-9999
0-9 999
Resolution of threshold level programming for:
- ambient dose equivalent rate, µSv/h
- ambient dose equivalent, mSv
- flux density, 10³/cm²·min

0.01
0.001
0.01
General Specifications
Battery life, hours 2000
Operating temperature range, °C -20 ... +50
Dimensions, mm 120 × 52 × 26
Weight, kg 0.15

Package Contents

  • Ecotest TERRA-P+ MKS-05 dosimeter-radiometer — 1 pc.
  • Operating manual — 1 pc.
  • Leather case — 1 pc.
