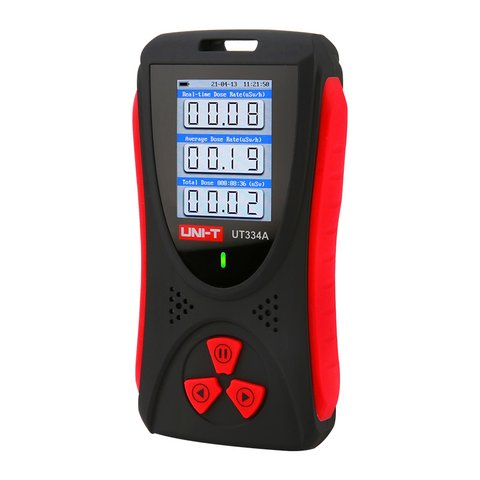

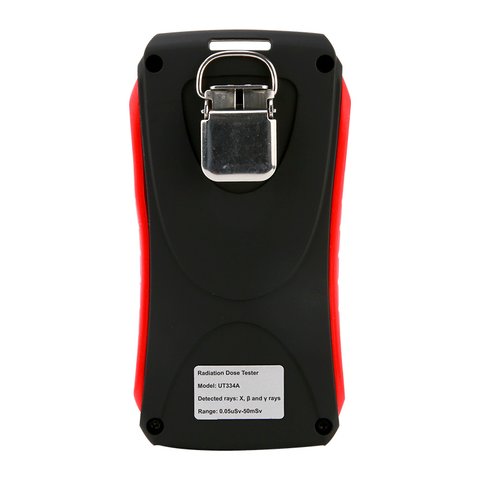

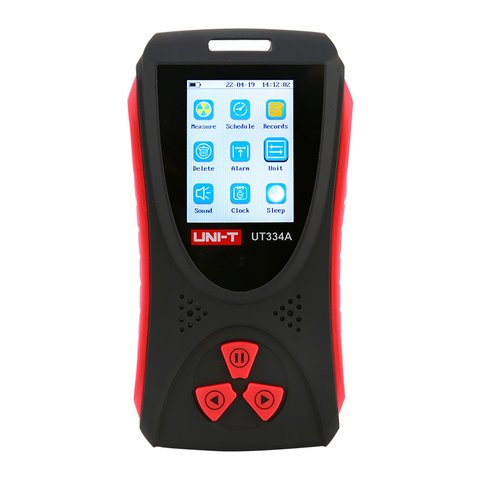

Radiation Dose Tester UNI-T UT334A
Overview
Description
UNI-T UT334A is a handheld radiation dose tester with high sensitive GM counter sensor, combined Beta (β), Gamma (γ), and X-ray radiation detection. It features high sensitivity and measurement accuracy. The device is equipped with a powerful microprocessor and a 2.0" color TFT display. It has two alarm modes (audio and visual) which can be combined arbitrarily, and the alarm threshold can also be set independently. The UT334A raises an alarm when the threshold is reached.
UNI-T UT334A widely used in home decoration, radiation processing enterprise, health and epidemic prevention, radiation therapy, import and export inspection, building materials, petrochemical, geological survey, scrap steel, industrial nondestructive testing and other environments existing ionizing radiation, personal radiation dose supervision and protection occasions.
Features
- Equipped with a highly sensitive GM counter tube.
- Combined Beta (β), Gamma (γ), and X-ray radiation.
- Real-time, average, and cumulative dose display.
- Audible and visual alarms.
- Two monitoring modes.
- Data storage.
- Portable device.
Technical Specifications
| Detected Rays | X, β and γ rays |
| Sensor | GM counter tube |
| Range | 0.05 μSv-50 mSv |
| Accuracy | -17%~+25% based on 137CSγ |
| Charging Interface | Type-C |
| Alarm Response Time | <10 s |
| Alarm Threshold Accuracy | -17%~+25% |
| Alarm Modes | audio and visual alarms |
| Battery Duration | about 20 days (continuous measurement, particle sound off) |
| General Specifications | |
|---|---|
| Display | color TFT 2.0-inch |
| Battery | 3.7 V Li-Ion, 1800 mAh |
| Dimensions | 120 mm × 65 mm × 25 mm |
| Weight | 127 g |
User Manual
Download UNI-T UT334A user manual.
Package Contents
- Radiation Dose Tester UNI-T UT334A — 1 pc.
- Data Cable — 1 pc.
- Hand Strap — 1 pc.
- User Manual — 1 pc.

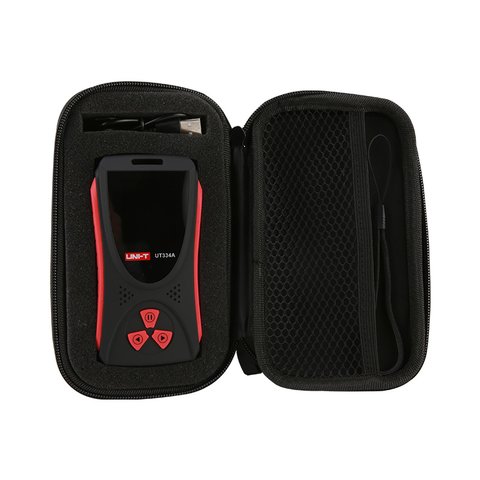

- Carrying Bag — 1 pc.
