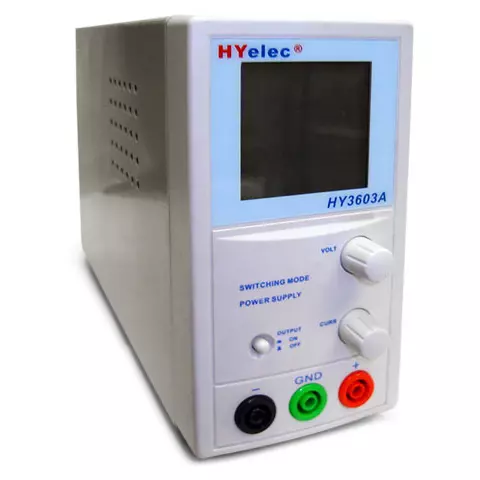

Regulated Power Supply Unit HYelec HY3603A

id: 817687
Regulated Power Supply Unit HYelec HY3603A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 92.00
Contact
sales team
Overview
Brand: HYelec
2.3 kg 110, 220 V Warranty: 6 months
A unit powers electronic devices and circuits with DC voltage between from 0 to 36V and DC current from 0 to 3A. 1 adjustable channel.
USD 92.00
Contact
sales team
Compare
Compare
USD 92.00
Contact
sales team
Impossible to estimate the shipping cost
Description

A linear power supply is designed to stabilize the DC voltage or current, depending on the selected mode. The unit powers electronic devices and circuits with DC voltage between from 0 to 36V and DC current from 0 to 3A.

HY3603A Regulated Power Supply Unit Features

  • LCD with output parameters. Simultaneous display of output voltage and current
  • Parameters adjusted by means of potentiometers. Independent adjustment of current and voltage.
  • Overload and short circuit protection.
  • 1 adjustable channel

HY3603A Regulated Power Supply Unit Technical Specifications

Display LCD
Output Voltage, V 0 - 36
Output Current, A 0 - 3
Output voltage display accuracy 1 % ± 2
Output current display accuracy 2% ± 2
Ripple level current, mA ≤ 3
voltage, mV ≤ 0,5
Load effect, % current, mA 0.2 + 5
voltage, mV 0.01 + 5
Power effect, % current, mA 0.2 + 1
voltage, mV ≤0.01 + 1
Power supply, V ~ 220 / 110V  ± 10 %
Dimensions, mm 206 × 153 × 110
Weight, kg approx. 4.5 kg
Read more
Description

A linear power supply is designed to stabilize the DC voltage or current, depending on the selected mode. The unit powers electronic devices and circuits with DC voltage between from 0 to 36V and DC current from 0 to 3A.

HY3603A Regulated Power Supply Unit Features

  • LCD with output parameters. Simultaneous display of output voltage and current
  • Parameters adjusted by means of potentiometers. Independent adjustment of current and voltage.
  • Overload and short circuit protection.
  • 1 adjustable channel

HY3603A Regulated Power Supply Unit Technical Specifications

Display LCD
Output Voltage, V 0 - 36
Output Current, A 0 - 3
Output voltage display accuracy 1 % ± 2
Output current display accuracy 2% ± 2
Ripple level current, mA ≤ 3
voltage, mV ≤ 0,5
Load effect, % current, mA 0.2 + 5
voltage, mV 0.01 + 5
Power effect, % current, mA 0.2 + 1
voltage, mV ≤0.01 + 1
Power supply, V ~ 220 / 110V  ± 10 %
Dimensions, mm 206 × 153 × 110
Weight, kg approx. 4.5 kg
Specifications
Type
  • pulse
Number of channels
  • single-channel
Max. Current
  • up to 3 A
Indicator type
  • LCD indicators
Max. Voltage
  • up to 36 V
