Repairing System AOYUE 701

id: 8406
Repairing System AOYUE 701
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
6.25 kg 220 V Warranty: 12 months
Soldering and desoldering station built together for maximum performance
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

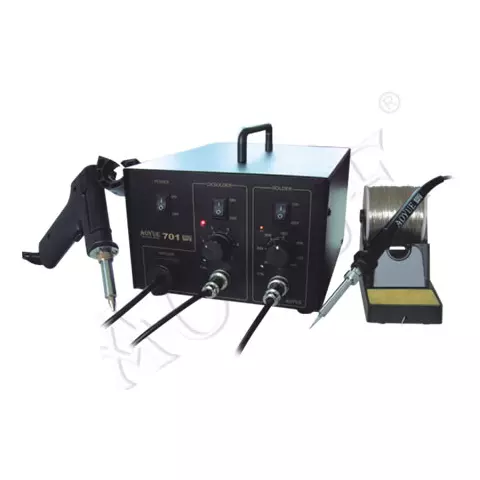

Soldering and desoldering station Aoyue 701  built together for maximum performance. Designed for all types of PCB repair, easy to operate soldering/desoldering functions. The desoldering tool comes with zero crossing circuitry preventing electrical surges. Soldering iron incorporates a ceramic heating element providing long service life.

Features

  • PCU control.
  • Soldering and desoldering station built together.
  • Standard control panel, for quick soldering/desoldering functions.
  • Ergonomic design of handle and desoldering gun.
  • 24V soldering iron voltage ensures user’s security.
  • Economic and effective ceramic heater.
  • Equipped with various tip type.

Specifications

Power Input 220 V
Station Dimensions 188(w) × 126(h) ×250(d) mm
Soldering iron:
Power Consumption 35 W
Temperature Range 200–480 °C
Heating Element with Tip Ceramic Heater
Output Voltage 24 V
Tip to Ground Resistance
Ground Potential
Desoldering iron:
Temperature Range 380–480 °C
Heating Element with Tip Ceramic Heater
Output Voltage 36 V
Air Flow Speed 15 l/min (max)
Vacuum Generator Vacuum Pump
Vacuum Pressure 600 mm Hg

Package Contents

Aoyue 701 Station;
Desoldering gun B1001;
Desoldering gun holder 201412;
Soldering iron holder 2630;
Desoldering tips (S, M, L);
Filter (6 pieces) 3017J;
Silicone Grease H022;
Nozzle cleaning pin 201242;
Soldering iron with nozzle;
Power cord

Compatible Soldering Tips

Read more
Description
Soldering and desoldering station Aoyue 701  built together for maximum performance. Designed for all types of PCB repair, easy to operate soldering/desoldering functions. The desoldering tool comes with zero crossing circuitry preventing electrical surges. Soldering iron incorporates a ceramic heating element providing long service life.

Features

  • PCU control.
  • Soldering and desoldering station built together.
  • Standard control panel, for quick soldering/desoldering functions.
  • Ergonomic design of handle and desoldering gun.
  • 24V soldering iron voltage ensures user’s security.
  • Economic and effective ceramic heater.
  • Equipped with various tip type.

Specifications

Power Input 220 V
Station Dimensions 188(w) × 126(h) ×250(d) mm
Soldering iron:
Power Consumption 35 W
Temperature Range 200–480 °C
Heating Element with Tip Ceramic Heater
Output Voltage 24 V
Tip to Ground Resistance < 2 ohms
Ground Potential < 2 mV
Desoldering iron:
Temperature Range 380–480 °C
Heating Element with Tip Ceramic Heater
Output Voltage 36 V
Air Flow Speed 15 l/min (max)
Vacuum Generator Vacuum Pump
Vacuum Pressure 600 mm Hg

Package Contents

Aoyue 701 Station;
Desoldering gun B1001;
Desoldering gun holder 201412;
Soldering iron holder 2630;
Desoldering tips (S, M, L);
Filter (6 pieces) 3017J;
Silicone Grease H022;
Nozzle cleaning pin 201242;
Soldering iron with nozzle;
Power cord

Compatible Soldering Tips

Specifications
Power
  • 50 W
Design type
  • Desktop
Soldering Iron Power
  • 35 W
Gun power
  • 50 W
