Repairing System AOYUE 701A+

id: 813540
Repairing System AOYUE 701A+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 135.00
Notify
when in stock
Overview
6.9 kg 220 V Warranty: 12 months
Designed for all types of PCB repair, easy to operate soldering/desoldering functions
USD 135.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 135.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Desoldering Station QUICK 201B ESD
Add to wishlist
Desoldering Station QUICK 201B ESD
USD 251.25
Add to wishlist
Add to cart
Desoldering station with 90 W heating power, temperature range from 200°C to 450°C.
Availability in stock: HK
Shipping cost
ID: 838070 6 kg 220
Description

AOYUE 701A+ soldering and desoldering station built together for maximum performance. Designed for all types of PCB repair, easy to operate soldering/desoldering functions. The desoldering tool comes with zero crossing circuitry preventing electrical surges. Soldering iron incorporates a ceramic heating element providing long service life.

Features

  • PCU control
  • Soldering and desoldering station built together
  • Standard control panel, for quick soldering/desoldering functions
  • Ergonomic design of handle and desoldering gun
  • 24V soldering iron voltage ensures user's security
  • Economic and effective ceramic heater
  • Equipped with various tip type

Technical Specifications

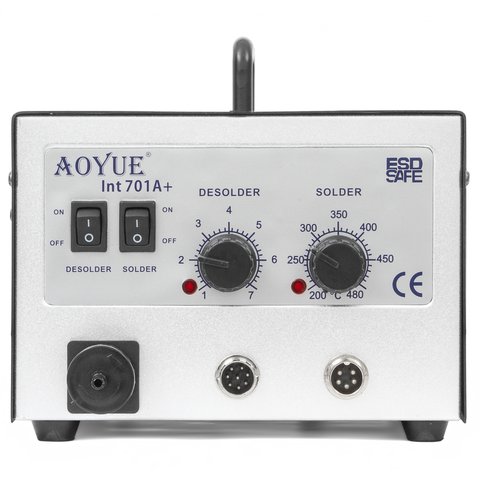

MAIN UNIT
Power consumption 150 W
(Station) Output Voltage 24 V
(Station) Vacuum Generator Vacuum pump, double cylinder type
(Station) Vacuum pressure (Max) 600 mm Hg
SOLDERING IRON
Power consumption 35 W
Output Voltage 24 V
Temperature Range 200°C - 480°C
TemperatureStability ±10°C±18°C of the set temperature
±0.5°C±0.9°C of tolerance at idling time
Tip to Ground Resistance Under 2 Ohm
Top to Ground Potential Under 2 mV
Cord Assembly 1.2 m

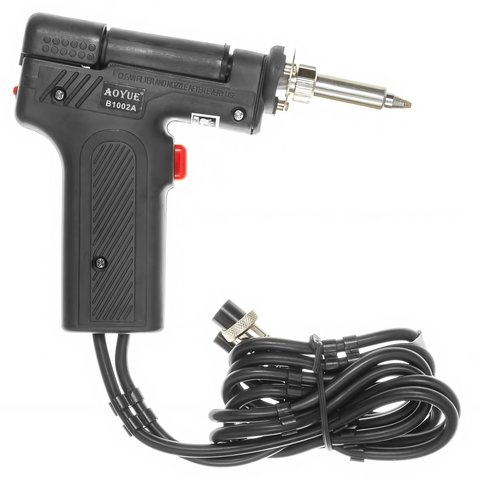

DISOLDERING GUN
Power consumption 50 W
Output Voltage 24 V
Temperature Range 380°C - 480°C
Nozzle to Ground Resistance Under 2 Ohm

Package Contents

  • Soldering Station AOYUE 701A+
  • Desoldering gun B1001
  • Desoldering gun holder 201412
  • Soldering iron holder 2630
  • Filter (2 pieces)
  • Silicone Grease H022
  • Nozzle cleaning pin
  • Soldering iron with nozzle
  • Power cord

Compatible Soldering Tips

Read more
Description

AOYUE 701A+ soldering and desoldering station built together for maximum performance. Designed for all types of PCB repair, easy to operate soldering/desoldering functions. The desoldering tool comes with zero crossing circuitry preventing electrical surges. Soldering iron incorporates a ceramic heating element providing long service life.

Features

  • PCU control
  • Soldering and desoldering station built together
  • Standard control panel, for quick soldering/desoldering functions
  • Ergonomic design of handle and desoldering gun
  • 24V soldering iron voltage ensures user's security
  • Economic and effective ceramic heater
  • Equipped with various tip type

Technical Specifications

MAIN UNIT
Power consumption 150 W
(Station) Output Voltage 24 V
(Station) Vacuum Generator Vacuum pump, double cylinder type
(Station) Vacuum pressure (Max) 600 mm Hg
SOLDERING IRON
Power consumption 35 W
Output Voltage 24 V
Temperature Range 200°C - 480°C
TemperatureStability ±10°C±18°C of the set temperature
±0.5°C±0.9°C of tolerance at idling time
Tip to Ground Resistance Under 2 Ohm
Top to Ground Potential Under 2 mV
Cord Assembly 1.2 m
DISOLDERING GUN
Power consumption 50 W
Output Voltage 24 V
Temperature Range 380°C - 480°C
Nozzle to Ground Resistance Under 2 Ohm

Package Contents

  • Soldering Station AOYUE 701A+
  • Desoldering gun B1001
  • Desoldering gun holder 201412
  • Soldering iron holder 2630
  • Filter (2 pieces)
  • Silicone Grease H022
  • Nozzle cleaning pin
  • Soldering iron with nozzle
  • Power cord

Compatible Soldering Tips

Specifications
Power
  • 50 W
Design type
  • Desktop
Soldering Iron Power
  • 35 W
Gun power
  • 50 W
