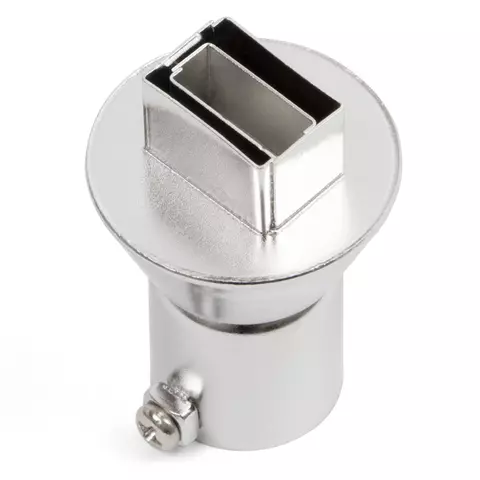

Replacement Air Nozzle AOYUE 1134

id: 8431
Replacement Air Nozzle AOYUE 1134
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 14.00
Notify
when in stock
Overview
Replacement air nozzle for AOYUE 2702, 2702A+, 2738, 2738A+, 6028 Sirocco, 6031 Sirocco, 738, 768, 8032A++, 852A+, 852A++, 857A++, 899A+, 906, 906C, 908+, 909, 968, Pro'sKit SS-601F, SUNKKO 850A, 850D, SOP, 7,5x18 mm
USD 14.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 14.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

AOYUE 1134 – replacement air nozzle for soldering 7,5×18 mm SOP-microschemes.

SOP -  replacement air nozzle

Technical Specifications

Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
Length Width
1131 SOP 4.4x10 10 4,8
1132 SOP 5.6x13 15 5,7
1133 SOP 7.5x15 16 7,2
1134 SOP 7.5x18 19 7,2
1257 SOP 11x21 21 11,7
1258 SOP 7.6x12.7 11,7 8,2
1259 SOP 13x28 29 13,5
1260 SOP 8.6x18 19 8,7
Read more
Description

AOYUE 1134 – replacement air nozzle for soldering 7,5×18 mm SOP-microschemes.

SOP -  replacement air nozzle

Technical Specifications

Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
Length Width
1131 SOP 4.4x10 10 4,8
1132 SOP 5.6x13 15 5,7
1133 SOP 7.5x15 16 7,2
1134 SOP 7.5x18 19 7,2
1257 SOP 11x21 21 11,7
1258 SOP 7.6x12.7 11,7 8,2
1259 SOP 13x28 29 13,5
1260 SOP 8.6x18 19 8,7
Specifications
Replacement Air Nozzle is compatible with the following models of Hot Air Soldering Stations
  • AOYUE 8032A++
  • AOYUE 738
  • AOYUE 906
  • AOYUE 2702
  • AOYUE 908+
  • AOYUE 768
  • AOYUE 2738A+
  • AOYUE 2702A+
  • AOYUE 2702A+
  • AOYUE 909
  • AOYUE 768
  • AOYUE 852A+
  • AOYUE 2738
  • AOYUE 899A+
  • AOYUE 852A++
  • AOYUE 968
  • AOYUE 968
  • AOYUE 906C
  • AOYUE 6028 Sirocco
  • AOYUE 857A++
  • AOYUE 6031 Sirocco
  • AOYUE 909
  • SUNKKO 850D
  • SUNKKO 850A
  • Pro'sKit SS-601F
Type
  • SOP
Type
  • 7.5 × 18 mm
