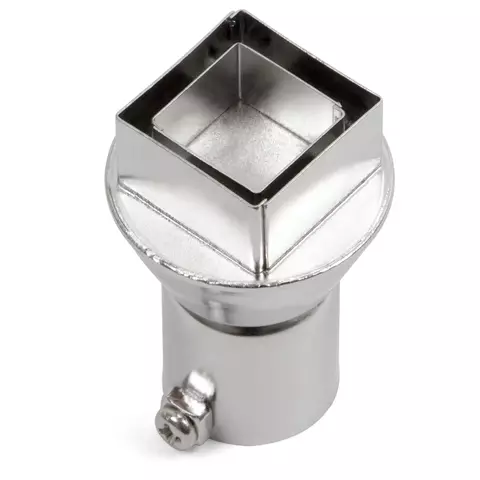

Replacement Air Nozzle AOYUE 1135

id: 8432
Replacement Air Nozzle AOYUE 1135
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 16.50
Notify
when in stock
Overview
Replacement Air Nozzle for AOYUE 2702, 2702A+, 2738, 2738A+, 6028 Sirocco, 6031 Sirocco, 738, 768, 8032A++, 852A+, 852A++, 857A++, 899A+, 906, 906C, 908+, 909, 968, Pro'sKit SS-601F, SUNKKO 850A, 850D, PLCC, 17.5 × 17.5 mm.
USD 16.50
Notify
when in stock
Add to wishlist
Compare
Compare
USD 16.50
Notify
when in stock
Impossible to estimate the shipping cost
Description

AOYUE 1135 – replacement air nozzle for soldering 17,5×17,5 mm PLCC-microschemes.

PLCC - replacement air nozzle

Technical Specifications

Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
A B C D
1135 PLCC 17.5x17.5 (44 pins) 18.5 18.5 15 15
1136 PLCC 20x20 (52 pins) 21 21 19 19
1137 PLCC 25x25 (68 pins) 26 26 24 24
1138 PLCC 30x30 (84 pins) 31 31 29 29
1139 PLCC 7.3x12.5 (18 pins) 9 14 69 69
1140 PLCC 11.5x11.5 (28 pins) 13 13 15 10
1141 PLCC 11.5x14 (32 pins) 15 13 15 10
1188 PLCC 9 x9 (20 pins) 11 11 10 10
1189 PLCC 34x34 (100 pins) 36.5 36.5 33.5 33.5
Read more
Description

AOYUE 1135 – replacement air nozzle for soldering 17,5×17,5 mm PLCC-microschemes.

PLCC - replacement air nozzle

Technical Specifications

Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
A B C D
1135 PLCC 17.5x17.5 (44 pins) 18.5 18.5 15 15
1136 PLCC 20x20 (52 pins) 21 21 19 19
1137 PLCC 25x25 (68 pins) 26 26 24 24
1138 PLCC 30x30 (84 pins) 31 31 29 29
1139 PLCC 7.3x12.5 (18 pins) 9 14 69 69
1140 PLCC 11.5x11.5 (28 pins) 13 13 15 10
1141 PLCC 11.5x14 (32 pins) 15 13 15 10
1188 PLCC 9 x9 (20 pins) 11 11 10 10
1189 PLCC 34x34 (100 pins) 36.5 36.5 33.5 33.5
Specifications
Replacement Air Nozzle is compatible with the following models of Hot Air Soldering Stations
  • AOYUE 8032A++
  • AOYUE 738
  • AOYUE 906
  • AOYUE 2702
  • AOYUE 908+
  • AOYUE 768
  • AOYUE 2738A+
  • AOYUE 2702A+
  • AOYUE 2702A+
  • AOYUE 909
  • AOYUE 768
  • AOYUE 852A+
  • AOYUE 2738
  • AOYUE 899A+
  • AOYUE 852A++
  • AOYUE 968
  • AOYUE 968
  • AOYUE 906C
  • AOYUE 6028 Sirocco
  • AOYUE 857A++
  • AOYUE 6031 Sirocco
  • AOYUE 909
  • SUNKKO 850D
  • SUNKKO 850A
  • Pro'sKit SS-601F
Type
  • PLCC
Type
  • 17.5 × 17.5 mm
