Replacement Air Nozzle AOYUE 1182

id: 8442
Replacement Air Nozzle AOYUE 1182
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 15.00
Notify
when in stock
Overview
Replacement Air Nozzle for AOYUE 2702, 2702A+, 2738, 2738A+, 6028 Sirocco, 6031 Sirocco, 738, 768, 8032A++, 852A+, 852A++, 857A++, 899A+, 906, 908+, 909, 968, Pro'sKit SS-601F, SUNKKO 850A, 850D, 850D+, BQFP, 24 x 24 mm
USD 15.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 15.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

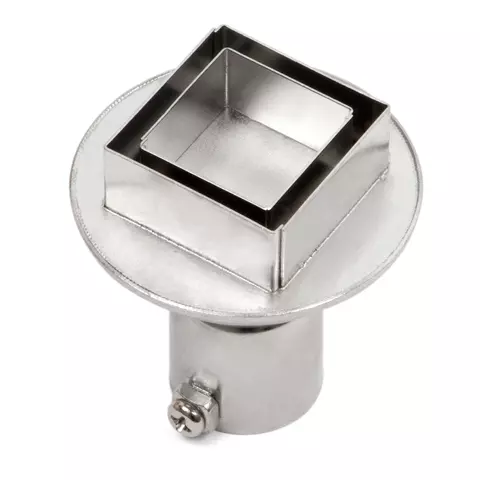

AOYUE 1182 – replacement air nozzle for soldering 24 x 24 mm BQFP-microschemes.

BQFP - replacement air nozzle

Technical Specifications

Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
A B C D
1180 BQFP 17x17 18.2 18.2 13.6 13.6
1181 BQFP 19x19 19.2 19.2 16 16
1203 BQFP 35x35 35.2 35.2 30.6 30.6
1182 BQFP 24x24 24.2 24.2 21 21
Read more
Description

AOYUE 1182 – replacement air nozzle for soldering 24 x 24 mm BQFP-microschemes.

BQFP - replacement air nozzle

Technical Specifications

1203
Air nozzle model Microchip body type and sizes (mm) Air nozzle sizes (mm)
A B C D
1180 BQFP 17x17 18.2 18.2 13.6 13.6
1181 BQFP 19x19 19.2 19.2 16 16
BQFP 35x35 35.2 35.2 30.6 30.6
1182 BQFP 24x24 24.2 24.2 21 21
Specifications
Replacement Air Nozzle is compatible with the following models of Hot Air Soldering Stations
  • AOYUE 8032A++
  • AOYUE 738
  • AOYUE 906
  • AOYUE 2702
  • AOYUE 908+
  • AOYUE 768
  • AOYUE 2738A+
  • AOYUE 2702A+
  • AOYUE 2702A+
  • AOYUE 909
  • AOYUE 768
  • AOYUE 852A+
  • AOYUE 2738
  • AOYUE 899A+
  • AOYUE 852A++
  • AOYUE 968
  • AOYUE 968
  • AOYUE 6028 Sirocco
  • AOYUE 857A++
  • AOYUE 6031 Sirocco
  • AOYUE 909
  • SUNKKO 850D+
  • SUNKKO 850D
  • SUNKKO 850A
  • Pro'sKit SS-601F
Type
  • BQFP
Type
  • 24 × 24 mm
