Ribbon Fusion Splicer INNO Instrument View 12R

id: 912663
Ribbon Fusion Splicer INNO Instrument View 12R
Overview
Description
Delivery
Payment
Warranty
USD 8880.00

Overview

5 (1)
This item is delivered upon order. The current price and delivery time require clarification.
Powerful ribbon splicer with an advanced automatic clamp alignment system for an accurate and dependable ribbon fiber splicing of up to 12 fibers. Read more
USD 8880.00
USD 8880.00
Impossible to estimate the shipping cost

Description

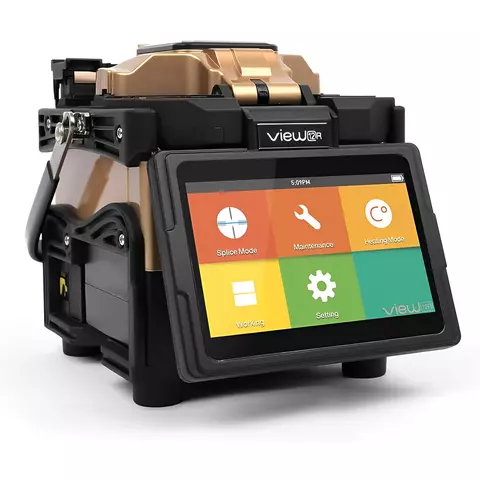

Inno Instrument VIEW 12R is a ribbon splicer equipped with a fully motorized clamp alignment system, making it the most powerful and state-of-the-art ribbon splicer available on the market. Its advanced automatic clamp alignment system offers precise and dependable ribbon fiber splicing for up to 12 fibers. The device allows double-tapping (zoom in & out) and scrolling, achieving the world’s highest magnification of 250x for ribbon splicing.

The View 12R enhances work efficiency significantly with its rapid splicing and heating times, along with an ultra-high battery capacity of 220 splice/heat cycles. It features a universal holder compatible with both 250μm and 900μm single fibers.

The advanced clamp of the View 12R activates automatically based on the fiber's position, ensuring the accurate placement of each core on its designated v-groove. Undoubtedly, this process guarantees precise and reliable splicing.

Inno Instruments' Fusion Splicers are ingeniously crafted using specialized materials, resulting in a compact footprint and remarkable lightweight design.

Features

  • Motorized clamp alignment system.

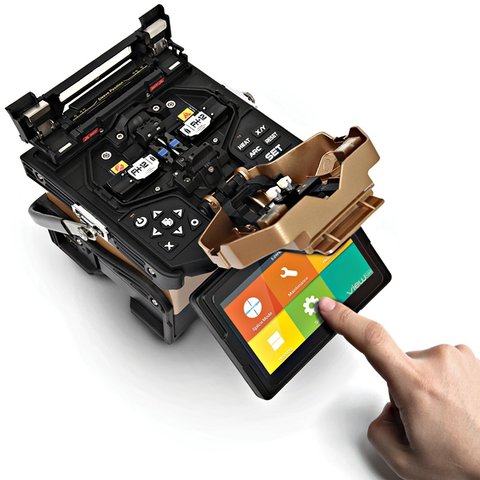

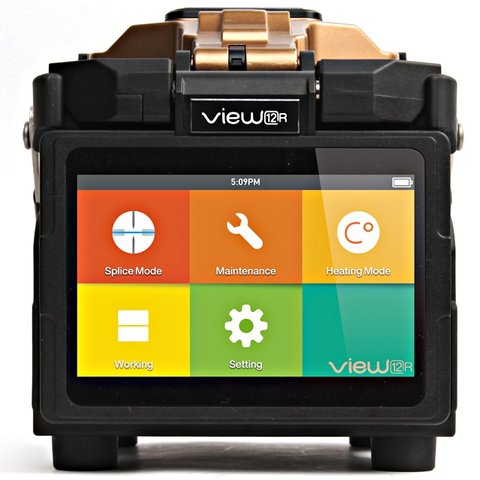

  • 5" colored LCD touchscreen.
  • User-friendly intelligent GUI.
  • Double-tap to zoom in and out.
  • Fast work time.
  • Ultra-high-capacity battery.
  • Universal single-fiber holder.
  • 3 bright LEDs and illuminated keypad for dark environments.
  • Ceramic clamps for improved durability.
  • Protective covering.
  • Adaptability to harsh weather conditions.

Technical Specifications

Number of Fiber 1, 2, 4, 6, 8, 10, 12
Applicable Fibers SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Compatible Fiber / Cable Ribbon : 0.25~0.4 mm / Single: 250 μm & 900 μm
Cleaved Length 10~13 mm
Cladding Diameter 125 μm
Splicing Mode Max 100 modes
Heating Mode Max 32 modes
Typical Splice Loss SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB (ITU-T standard)
Return Loss > 60 dB
Lighting 3 White LEDs
Splicing Time Ribbon fiber : 15 sec / Single fiber : 9 sec
Estimated Splice Loss Available
Heating Sleeve Length 60mm, 50mm, 40mm, Micro
Heating Time Typical 20 sec
Results Storage Last 5,000 results
Tension Test 1.96~2.25N
Operating Condition Operating Altitude: 0~3,660m above sea level / 0~95% relative humidity / -10~50℃ / Max Wind 15m/s
Storage Condition 0~95% relative humidity / -40~80℃
Display 90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification X, Y, XY, X/Y : 250X Magnification
Power Supply AC Input 100-240V, DC Input 9-14V
No. of Splice & Heating with Battery 9800m Ah Battery Capacity / Typical 220 times (Splice + Heat)
Operating Methods Button / Touch Screen
Automatic Calibration Automatic arc calibration by air pressure and temperature
Electrode Life 1500 arcs, can be extended by using an electrode grinder
Terminal DIN / Micro HDMI
Dimensions 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper)
Weight 1.98 KG (without battery) / 2.64 KG (with battery)

User Manual

PDF  Download Inno Instrument VIEW 12R user manual.

Package Contents

  • Ribbon Fusion Splicer Inno Instrument VIEW 12R — 1 pc.

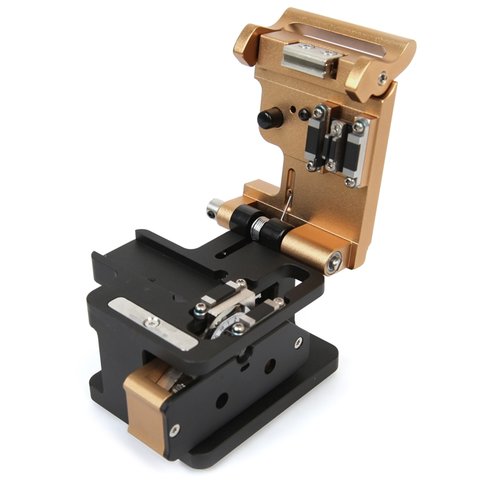

  • V7 High Precision Cleaver — 1 pc.
  • TS-8 Thermal Stripper — 1 pc.
  • Fiber Holder For:
    • 12 Ribbon: FH-12L / FH-12R — 1 pc.
    • 8 Ribbon: FH-8L / FH-8R — 1 pc.
    • 4 Ribbon: FH-4L / FH-4R — 1 pc.
    • 250 & 900μm Single : FH-UL / FH-UR (Universal) — 1 pc.
    • SOC Holder : FH-SOC-R — 1 pc.
  • HTS-SOC Heater Cover — 1 pc.
  • AC Adapter JS-180300 — 1 pc.
  • CG-22 Cooling Tray  — 1 pc.
  • E-50 Electrode — 1 set
  • EG-18 Electrode Grinder — 1 pc.
  • LBT-20 Battery Pack — 1 pc.
  • Power Cable — 1 pc.
  • Micro HDMI to USB Cable — 1 pc.
  • DIN Cable — 1 pc.
  • Protection Sleeves — 1 pc.
  • V-Groove Cleaning Brush — 1 pc.
  • Carrying Case — 1 pc.
