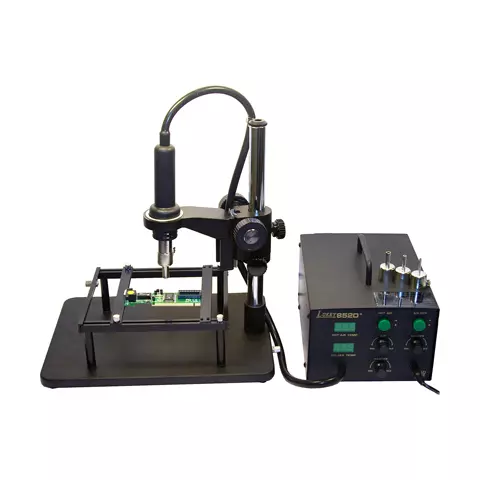

SMD/BGA Rework Station Lukey 852D-300-301

Multipurpose soldering station Lukey 852D-300-301 is a compressor hot air soldering/desoldering station + hot air gun holder + soldering iron + soldering iron holder + repair fixture holder. Improved SMD/BGA working technology.

FEATURES

• The least errors are ensured by the digital indication of the hot air actual temperature.
• The wide range of the working temperatures allows to use the device in a variety of conditions.
• The heating element is made out of ceramics, which allows avoiding the electric components damage by the voltage.

Soldering Iron Holder

• Board protection.
• Hot air gun vertical adjustment.
• The bracket for a heat gun stepless height adjustment.
• Hot air gun fixation by means of one screw.
• Allows to set the minimum level of the nozzle.

Repair Fixture Holder

• Provides steady hot air gun horizontal adjustment.
• Board lifting to a height of up to 6 cm.
• Moving cross bar with a hollow to fix the board by its size.

TECHNICAL SPECIFICATIONS

PACKAGE CONTENTS

• Hot air soldering/desoldering station — 1 pc.
• Hot air gun holder — 1 pc.
• Soldering iron — 1 pc.
• Soldering iron holder — 1 pc.
• Repair fixture holder — 1 pc.

ATTENTION! You need to remove the protective screw M5X10 before you turn on the soldering station for the first time. The screw is set by the manufacturer to lock the compressor inside the station for safe transportation. It is located in the bottom of the station and is marked in red. The warranty will be canceled in case the product is damaged due to the non-fulfillment of the conditions mentioned above.

COMPATIBLE SOLDERING TIPS

Conical Soldering Tips
AOYUE T-0.5C	AOYUE T-0.8C	AOYUE T-B
AOYUE T-I	AOYUE T-LB	AOYUE T-S4
AOYUE T-S8	AOYUE T-SB	AOYUE T-SI
Bevel Type Soldering Tips
AOYUE T-1C	AOYUE T-1.5CF	AOYUE T-1.5CM
AOYUE T-2C	AOYUE T-2CF	AOYUE T-2CM
AOYUE T-3C	AOYUE T-3CF	AOYUE T-3CM
AOYUE T-4C	AOYUE T-4CF	AOYUE T-4CM
AOYUE T-S6	AOYUE T-S7
Chisel Type Soldering Tips
AOYUE T-0.8D	AOYUE T-1.2D	AOYUE T-1.2LD
AOYUE T-1.6D	AOYUE T-2LD	AOYUE T-2.4D
AOYUE T-3.2D	AOYUE T-3.2LD	AOYUE T-S3
AOYUE T-S9
Bent Type Soldering Tips
AOYUE T-0.2RB	AOYUE T-1.8H	AOYUE T-H
Knife Type Soldering Tips
AOYUE T-K
Soldering Tips for SMD
AOYUE T-R	AOYUE T-RT
