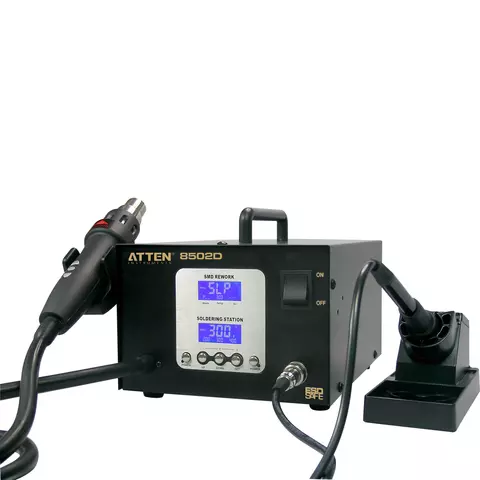

SMD Rework Station ATTEN AT8502D (110 V)

id: 830443
5.4 kg 110 V Warranty: 6 month (s)
Lead-free soldering station combines hot air gun and soldering iron. Microprocessor controlled unit. Diaphragm pump. Hot air gun auto-cool function. 110 V.
USD 140.00
Notify
when in stock
USD 140.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

ATTEN AT8502D SMD rework station is a lead free soldering station. ATTEN AT8502D SMD rework station combines both soldering and rework functions being especially suitable for scientific research, development and production lines.

ATTEN AT8502D SMD Rework Station User Manuals

Download ATTEN AT8502D SMD rework station user manual

ATTEN AT8502D SMD Rework Station Features

  • Dual LCD screen immediately displays working conditions and sets of parameters
  • Rapid temperature rise
  • Convertible temperature units °C/°F
  • Cold air and stopping heating
  • Hot air gun is compatible with various kinds of nozzles
  • Sleep mode, automatic switch-off for energy saving
  • Keys for temperature and air flow adjustment placed right on the handle
  • Three groups of stored data facilitate usage
  • Temperature compensation ensures stable temperature state
  • Malfunction alert (displaying H-E for heating elements and S-E for sensor)

ATTEN AT8502D SMD Rework Station Technical Specifications

Power Total power about 900 W max
Hot air gun about 800 W max
Pump (diaphragm) 40 W
Soldering iron 50 W
Range for temperature controlling Hot air gun 100-500°C
Soldering iron 200-480°C
Setting storage Hot air gun 1. 200°C, 40
2. 300°C, 60
3. 400°C, 80
Soldering iron 1. 200°C
2. 300°C
3. 400°C
Air volume 020-100% from max.

ATTEN AT8502D SMD Rework Station Compatibility

ATTEN AT8502D SMD Rework Station Package

  • Rework station ATTEN AT8502D (1 pc.)
  • Soldering iron ATTEN 907 (1 pc.)
  • Iron holder ATTEN 905 (1 pc.)
  • Twizers (1 set)
  • Nozzle (1 set)
  • Power cord (1 pc.)
  • User manual (1 pc.)
Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • 50 W
Hot Air Gun Power
  • 800 W
Desoldering Gun
  • Non-available
