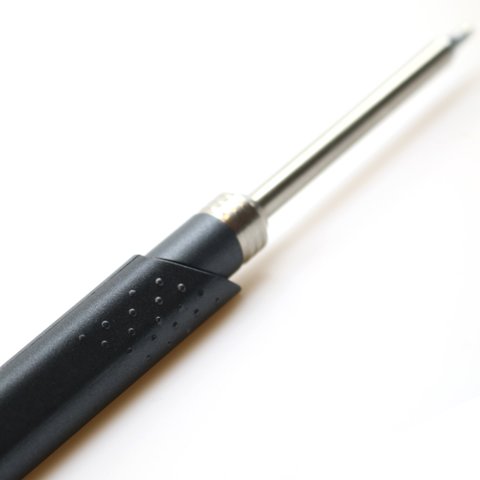

Soldering Iron SH72

SH72 is a compact, ergonomic, and powerful soldering iron with temperature control and a replaceable SH-KU knife-type soldering tip included. The soldering iron has an output power of 65 W and operates within a voltage range of 12V to 24V. The working temperature range is 220-400 °C, and the set temperature is reached within a few seconds. The temperature adjustment wheel on the body allows for an easy and precise selection of the desired settings.

The soldering iron weighs only 28 grams, making it the ideal tool for working in the field. Additionally, it can be powered by a power bank, LiPo battery, lithium battery, or laptop power supply.

Preparing for work:

1. Unscrew the fastening nut.
2. Insert the tip into the soldering iron socket until it stops.
3. Tighten the fastening nut.

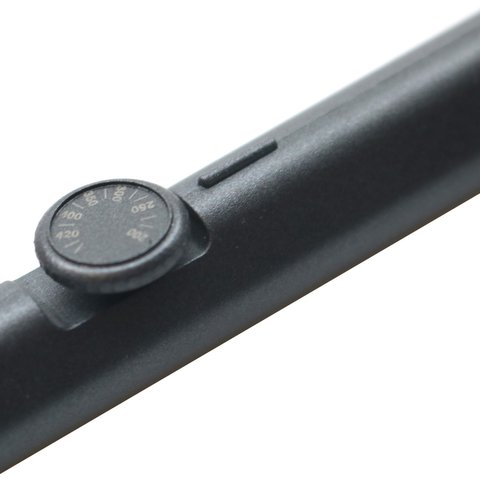

4. Set the desired temperature using the temperature regulator knob (turning the knob clockwise increases the temperature, counterclockwise decreases it).

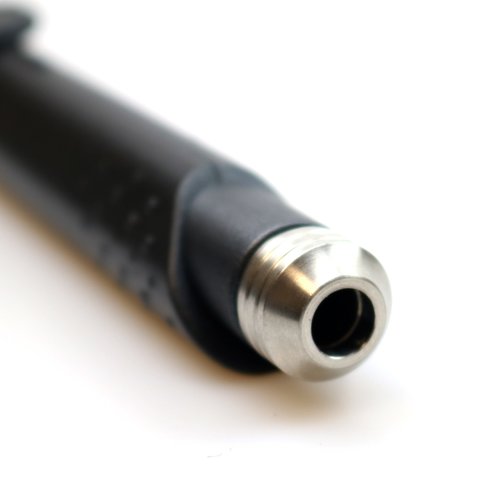

5. Connect the power adapter (DC12-24V) by inserting the DC plug into the soldering iron handle socket.

Tip replacement:

1. Turn off the power supply of the SH72 soldering iron.
2. Unscrew the fastening nut.
3. Install the new tip.
4. Tighten the fastening nut to secure the tip.

Features

• Power 65 W, temperature range 220-400 °C.
• Heats up to the set temperature in a few seconds.
• Thermal stabilization prevents the tip from overheating and ensures quick energy transfer while soldering large components.
• The interchangeable tips can be replaced during operation without the need to wait for them to cool down.

Technical Specifications

Package Contents

• Soldering Iron SH72 — 1 pc.
• Soldering Iron Tip SH-KU — 1 pc.
• Stand — 1 pc.
• User Manual — 1 pc.
