Soldering Station AOYUE 936

id: 8401

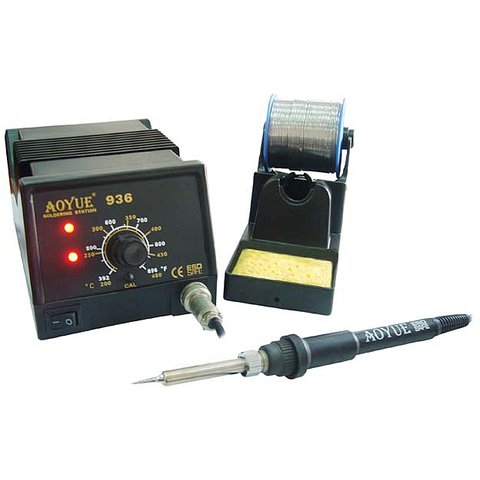

Soldering Station AOYUE 936
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 32.00
Notify
when in stock
Overview
2.3 kg 220 V Warranty: 12 months
Antistatic performed soldering station with analog control meant for electronic and radio equipment repairing.
USD 32.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 32.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

Antistatic soldering station AOYUE 936 with analog control meant for electronic and radio equipment repairing.

Features

  • Ceramic heater provides with quick measure up of specified temperature mode.
  • By means of calibration system accurate outset of soldering iron bit temperature is made.
  • Operating temperature is supported on the fixed level.
  • Assembling of elements with small distance between stands (PLCC, QFP) is possible thanks to the thin tip.
  • Long life tip (multilayer tip).
  • Soldering iron is packed with standard bit Aoyue-I.
  • Antistatic performance enables working with static-sensitive components.

Technical Specifications

Temperature range 200˚C- 480˚C
Temperature adjustment Analogous, smooth
Temperature stabilization +/- 1˚C
Power consumption 35 W
Operating voltage 220 V
Soldering iron plug type 5 pins
Dimensions 120х80х140 mm
Soldering iron
Resistance between grounding and nozzle 2 Ohm
Potential between grounding and nozzle 2 mV
Supply voltage 24 V
Heating element 4-pinned, semiconductor ceramics
Packed with standard bit Aoyue-I
Total length (without cable ) 190 mm

Package Contents

1. Soldering station Aoyue 936 – 1 pc.
2. Soldering iron B004 – 1 pc.
3. Soldering iron stand – 1 pc.
5. Manual  – 1 pc.
6. Packing box with foam protective frame – 1 pc.

Compatible Soldering Tips

Read more
Description

Antistatic soldering station AOYUE 936 with analog control meant for electronic and radio equipment repairing.

Features

  • Ceramic heater provides with quick measure up of specified temperature mode.
  • By means of calibration system accurate outset of soldering iron bit temperature is made.
  • Operating temperature is supported on the fixed level.
  • Assembling of elements with small distance between stands (PLCC, QFP) is possible thanks to the thin tip.
  • Long life tip (multilayer tip).
  • Soldering iron is packed with standard bit Aoyue-I.
  • Antistatic performance enables working with static-sensitive components.

Technical Specifications

Temperature range 200˚C- 480˚C
Temperature adjustment Analogous, smooth
Temperature stabilization +/- 1˚C
Power consumption 35 W
Operating voltage 220 V
Soldering iron plug type 5 pins
Dimensions 120х80х140 mm
Soldering iron
Resistance between grounding and nozzle 2 Ohm
Potential between grounding and nozzle 2 mV
Supply voltage 24 V
Heating element 4-pinned, semiconductor ceramics
Packed with standard bit Aoyue-I
Total length (without cable ) 190 mm

Package Contents

1. Soldering station Aoyue 936 – 1 pc.
2. Soldering iron B004 – 1 pc.
3. Soldering iron stand – 1 pc.
5. Manual  – 1 pc.
6. Packing box with foam protective frame – 1 pc.

Compatible Soldering Tips

Specifications
Power
  • 35 W
Heater type
  • ceramic
Control type
  • analogue
Soldering iron voltage
  • 24 V
