Overview
Brand: Jovy Systems
3.5 kg 110, 220 V Warranty: 12 months
Multipurpose soldering station for any PCB component soldering. Auto power regulation and recovery control for different temperature levels.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Powerful (90 W) ESD safe soldering station with LCD display, temperature adjustment from 80 °C to 480 °C and temperature stability of ±2 °C.
Bestseller
Availability in stock: HK
Shipping cost
ID: 838063 4.5 kg 220
Description

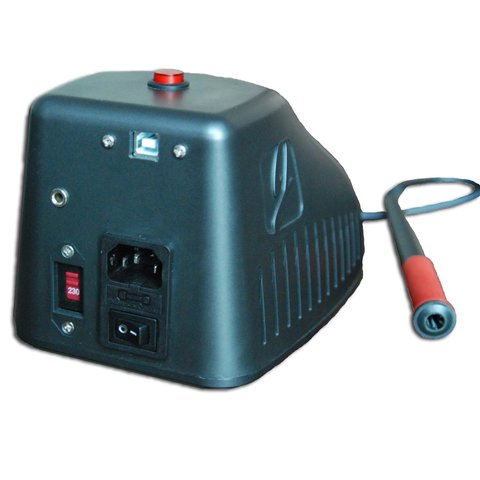

Jovy Systems iSolder-40 Soldering Station is an effective tool for soldering and desoldering of any PCB component. Auto sleep mode and auto standby mode for power saving and longer tip life time are provided in Jovy Systems iSolder-40. Easy control over the soldering process is achieved using 4 operation modes and two-colour led indicators. Auto power regulation and recovery control provides the different temperature levels needed for melting any type of solder material alloys. Jovy Systems iSolder-40 Soldering Station combines easy operation with a fashionable design.

Features

  • Smart conductor heating technology
  • Auto tip detection.
  • 2 programmable modes, iControl mode and user customized mode.
  • Dual color LED indicator.
  • Rapid thermal heating, from room temperature to 350 in 8 seconds.
  • ESD safe.
  • Sleep mode (after 5 minutes timeout).
  • Power saving mode (after 10 minutes in the sleep mode).
  • Soldering iron holder, cleaning sponge, and protective pad included in the package.
  • Compatible with different soldering iron tips.
  • Good for multiple applications.
  • Short circuit protection.
  • PC Software. Firmware upgrade.

User Manual

Download Jovy Systems iSolder-40 Soldering Station User Manual.

Technical Specifications

Maximum Enclosure Temperature 530 °C
Input voltage AC: 115 V/60 Hz – 230 V/50 Hz
Output voltage AC: 24 V
Power Consumption 100 Watts max.
Dimensions 188 × 144 × 120 mm
Power chord length 1.8 m
Soldering Iron
Tip-to-Ground Potential < 2 mV
Tip-to-Ground Resistance < 2 Ohm
Soldering Iron Length 158 mm
Cord Length 1.5 m

Video Review

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Compatible Soldering Tips

JV-TP1 JV-TP1
JV-TP2 JV-TP2
JV-TP3 JV-TP3
JV-TP4 JV-TP4
JV-TP5 JV-TP5
JV-TP6 JV-TP6
JV-TP7 JV-TP7
JV-TP8 JV-TP8
JV-TP9 JV-TP9
JV-TP10 JV-TP10
JV-TP11 JV-TP11
JV-TP12 JV-TP12
JV-TP13 JV-TP13
JV-TP14 JV-TP14
JV-TP15 JV-TP15
JV-TP16 JV-TP16
JV-TP17 JV-TP17
JV-TP18 JV-TP18
JV-TP19 JV-TP19
JV-TP20 JV-TP20

To see the complete list of compatible soldering tips follow this link.

Package Contents

  • Jovy Systems iSolder-40 soldering station — 1 pc.
  • Main soldering iron tip — 1 pc.
  • Soldering iron holder — 1 pc.
  • Cleaning sponge — 1 pc.
  • Protective pad — 1 pc.
  • Power cord — 1 pc.
Read more
Description

Jovy Systems iSolder-40 Soldering Station is an effective tool for soldering and desoldering of any PCB component. Auto sleep mode and auto standby mode for power saving and longer tip life time are provided in Jovy Systems iSolder-40. Easy control over the soldering process is achieved using 4 operation modes and two-colour led indicators. Auto power regulation and recovery control provides the different temperature levels needed for melting any type of solder material alloys. Jovy Systems iSolder-40 Soldering Station combines easy operation with a fashionable design.

Features

  • Smart conductor heating technology
  • Auto tip detection.
  • 2 programmable modes, iControl mode and user customized mode.
  • Dual color LED indicator.
  • Rapid thermal heating, from room temperature to 350 in 8 seconds.
  • ESD safe.
  • Sleep mode (after 5 minutes timeout).
  • Power saving mode (after 10 minutes in the sleep mode).
  • Soldering iron holder, cleaning sponge, and protective pad included in the package.
  • Compatible with different soldering iron tips.
  • Good for multiple applications.
  • Short circuit protection.
  • PC Software. Firmware upgrade.

User Manual

Download Jovy Systems iSolder-40 Soldering Station User Manual.

Technical Specifications

Maximum Enclosure Temperature 530 °C
Input voltage AC: 115 V/60 Hz – 230 V/50 Hz
Output voltage AC: 24 V
Power Consumption 100 Watts max.
Dimensions 188 × 144 × 120 mm
Power chord length 1.8 m
Soldering Iron
Tip-to-Ground Potential < 2 mV
Tip-to-Ground Resistance < 2 Ohm
Soldering Iron Length 158 mm
Cord Length 1.5 m

Video Review

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Compatible Soldering Tips

JV-TP1 JV-TP1
JV-TP2 JV-TP2
JV-TP3 JV-TP3
JV-TP4 JV-TP4
JV-TP5 JV-TP5
JV-TP6 JV-TP6
JV-TP7 JV-TP7
JV-TP8 JV-TP8
JV-TP9 JV-TP9
JV-TP10 JV-TP10
JV-TP11 JV-TP11
JV-TP12 JV-TP12
JV-TP13 JV-TP13
JV-TP14 JV-TP14
JV-TP15 JV-TP15
JV-TP16 JV-TP16
JV-TP17 JV-TP17
JV-TP18 JV-TP18
JV-TP19 JV-TP19
JV-TP20 JV-TP20

To see the complete list of compatible soldering tips follow this link.

Package Contents

  • Jovy Systems iSolder-40 soldering station — 1 pc.
  • Main soldering iron tip — 1 pc.
  • Soldering iron holder — 1 pc.
  • Cleaning sponge — 1 pc.
  • Protective pad — 1 pc.
  • Power cord — 1 pc.
Specifications
Power
  • 100 W
Heater type
  • cartridge
Soldering iron voltage
  • 24 V
Control type
  • automatic
