Spectrum Analyzer Rigol DSA1030A

id: 818253
Spectrum Analyzer Rigol DSA1030A
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued

Overview

9.5 kg 110, 220 V Warranty: 36 months
Compact and lightweight spectrum analyzer for portable applications. The use of digital IF technology ensures reliability and premium performance in most demanding RF applications. Frequency Range: 9kHz to 3GHz. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

Description

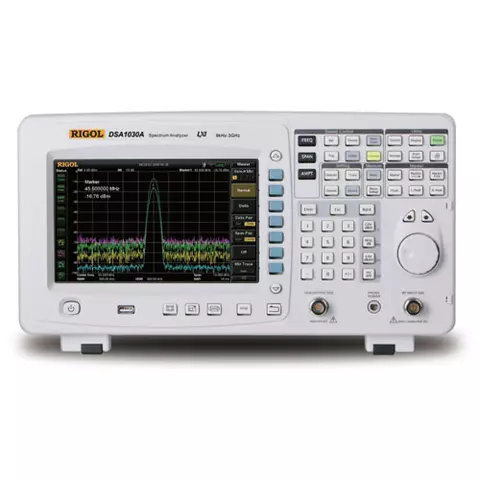

Rigol DSA1030A is a compact and light spectrum analyzer for portable applications. The use of digital IF technology guarantees reliability and premium performance to meet the most demanding RF applications.

Rigol DSA1030A Spectrum Analyzer Features

  • 8,5 inch widescreen LCD display with 800×480 resolution and fine spectral lines for displaying large data sets
  • Clear, vivid, and easy-to-use graphical interface with various options such as LAN/USB host, USB device, VGA or GPIB
  • Compact and rugged designCompact and rugged design, which makes the analyzer ideal for many portable and field applications. Spot tests are easier than ever with this small, lightweight analyzer. Despite the small size, the analyzer has a built-in 3 hour lithium battery, easy carry system, extra storage space (non-volatile memory) onboard and the ability to store data directly to a USB flash device
  • Various measurement functions:
    • Time domain power
    • Channel power
    • Adjacent-channel power
    • Occupied bandwidth
    • Carrier to noise ratio
    • Harmonic distortion
    • Intermodulation distortion
    • Frequency count
    • N dB
    • Noise marker and so on.
    Software displays waterfall curves to expand the measurement capabilities to even more applications.

    Function 1
    Function 2
    Function 3
    Function 4

  • Automatic setting and functions. Auto tune, auto range, auto scale, auto couple enable the analyzer to acquire signals and match parameters automatically, instead of the manual process used by a traditional analyzer.
    Auto functions
    The user and factory settings under the preset function help you to quickly and easily recall previous measurement settings.
  • Digital IF design. Benefits:
    • Ability to measure smaller signals measurements. IF filter enables smaller bandwidth settings and greatly reduces the displayed average noise level
    • Ability to make out signals with frequency difference of only 10 Hz
    • High precision amplitude readings. This technology almost completely eliminates errors generated by filter switching, reference level uncertainty, and scale distortion, as well as errors produced in the process of switching between logarithmic and linear display of amplitude when using a traditional analog design
    • Higher reliability. IF technology greatly reduces the complexity of the hardware, the system instability caused by channel aging, and the temperature sensitivity, which can contribute to parts failure
    • High measurement speed. Improved bandwidth precision, filter selectivity and minimized scanning time

Rigol DSA1030A Spectrum Analyzer Technical Specifications

Frequency

Frequency
Frequency Range 9kHz to 3GHz
Internal Frequency Reference
Reference frequency 10 MHz
Aging Rate <3 ppm/year
Temperature Drift 20 ºC to 30 ºC <3 ppm
Frequency Readout Accuracy
Marker Resolution span / (sweep points-1)
Marker Uncertainty ± (frequency indication × frequency reference uncertainty +1%
× span +10% × resolution bandwidth + marker resolution)
Marker Frequency Counter
Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz
Uncertainty ± (frequency indication × frequency reference uncertainty  + counter resolution)
Frequency Span
Range 0 Hz, 100 Hz to 3 GHz
Uncertainty ± span / (sweep points-1)
SSB Phase Noise
Carrier Offset 10 kHz <-88 dBc / Hz typ.
100 kHz <-100 dBc / Hz typ.
11 MHz <-110 dBc / Hz typ.
Bandwidths
Resolution Bandwidth (-3dB) 10 Hz to 1 MHz, in 1-3-10 sequence
RBW Uncertainty < 5%, nominal
Resolution Filter Shape Factor (60 dB: 3dB) <5, nominal
Video Bandwidth (-3dB) 10 Hz to 3 MHz, in 1-3-10 sequence

Amplitude

Measurement Range
Range DANL to +30 dBm
Maximum Rated Input Level
Dc Voltage 50 V
CW RF Power RF attenuation ≥ 20 dB 33 dBm (1W)
Max. Damage Level 40 dBm (10W)
Displayed Average Noise Level (DANL)
0 dB RF attenuation, RBW=100Hz, VBW=10Hz, sample detector, trace average ≥ 50
DANL (Preamplifier Off) 100 kHz to 10 MHz <-85 dBm - 3 f(MHz)dB, typ. -125 dBm
10 MHz to 2.5 GHz <-127 dBm - 3 × (f/MHz)dB, typ. -130 dBm
2.5 GHz to 3 GHz <-115dBm
DANL (Preamplifier Off) 100 kHz to 10 MHz <-103 dBm - 3 f(MHz)dB, typ. -143 dBm
10 MHz to 2.5 GHz <-145 dBm + 3 ×(f/MHz)dB, typ. -148 dBm
2.5 GHz to 3 GHz <-133dBm
Level Display
Logarithmic Level Axis 1 dB to 200 dB
Linear Level Axis 0 to Reference Level
Number of Display Points Normal 601
Full Screen 751
Number of Traces 3 + math trace
Trace Detectors Normal, Positive-peak, Negative-peak, Sample, RMS, Voltage Average
Trace Functions Clear Write, Max Hold, Min Hold, Average, View, Blank
Units of Level Axis dBm, dBmV, dBµV, nV, µV, mV, V, nW, µW, mW, W
Frequency Response
10 dB RF attenuation, relative to 50 MHz, 20ºC to 30ºC
Frequency Response
(Preamplifier Off)
100 kHz to 3 GHz <0.7 dB
Frequency Response
(Preamplifier On)
1 MHz to 3 GHz <1.0 dB
Input Attenuation Switching Uncertainty
Setting Range 0 to 50 dB, in 1 dB step
Switching Uncertainty fc=50MHz, relative to 10 dB, 20ºC to 30ºC < (0.3 +0.01 × attenuator settings) dB
Absolute Amplitude Uncertainty
Uncertainty fc=50 MHz, peak detector, preamplifier off,
10 dB RF attenuation, input signal = -10 dBm, 20ºC to 30ºC
± 0.4 dB
Reference Level
Range - 100 dBm to + 30 dBm, in 1 dB step
Resolution Log Scale 0.01 dB
Linear Scale 4 digits
Uncertainty <0.1 dB, nominal
Level Measurement Uncertainty
Level Measurement Uncertainty 95% confidence level, S/N > 20 dB, RBW=VBW=1kHz,
preamplifier off, 10 MHz < fc< 3 GHz, 20ºC to 30 ºC
<1.0 dB, nominal
RF Input VSWR
10 dB RF attenuation
VSWR 100 kHz to 10 MHz <1.8
10 MHz to 2.5 GHz <1.5
2.5 GHz to 3 GHz <1.8
Intermodulation
Second Harmonic Intercept (SHI)   +35 dBm
Third-order Intermodulation (TOI) fc > 30 MHz +7 dBm
Spurious Responses
Image Frequency   <-60 dBc
Intermediate Frequency   <-60 dBc
Spurious Responses, Inherent   <-88 dBm, typ.
Spurious Responses, Others referenced to local oscillators,
referenced to A/D conversion,
referenced to subharmonic of first LO
referenced to harmonic of first LO
<-60 dBc
Input Related Spurious Mixer level: -30 dBm <-60 dBc, typ.

Sweep

Sweep Time Range 100 Hz ≤ Span ≤3 GHz 10 ms to 3000 s
Span = 0 20 µs to 3000 s
Sweep Time Uncertainty 100 Hz ≤ Span ≤3 GHz 5%, nominal
Span = 0 0.5%, nominal
Sweep Mode   continuous, single

Trigger Function

Trigger Source Free run, Video, External
External Trigger Level 5 V TTL level

Tracking Generator

TG Output
Frequency Range   10 MHz to 3 GHz
Output Level   - 20 dBm to 0 dBm, in 1 dB step
Output Flatness Referenced to 50 MHz ± 3 dB

Inputs and Outputs

RF Input
Impedance 50Ω
Connector N female
TG Out
Impedance 50Ω
Connector N female
Probe Power
Voltage / Current +15 V, <10% (150 mA)
-12.6 V, <10% (150 mA)
10 MHz REF In / 10 MHz REF Out / External Trigger In
Connector BNC female
10 MHz REF Amplitude 0 dBm to 10 dBm
Trigger Voltage 5 V TTL level
USB
USB Host Connector B plug
Protocol Version 2.0
USB device Connector A plug
Protocol Version 2.0
VGA
Connector VGA compatible, 15-pin mini D-SUB
Resolution 800×600, 60 Hz

General Specifications

Display
Type TFT LCD
Resolution 800 480
Size 8.5"
Colors 65536
Printer Supported
Protocol PictBridge
Remote Control
USB   USB TMC
LAN Interface   10/100 Base-T, RJ-45
IEC/IEEE bus (GIB) with opt. USB-GPIB IEEE488.2
Mass Memory
Mass Memory   Flash disc (internal)
USB Disc (not supplied)
Data Storage Space Flash disc (internal) 2 Gbs
Power Supply
Input Voltage Range, AC 100 V to 240 V, nominal
AC Supply Frequency 45 Hz to 440 Hz
Input Voltage Range, DC 10 V to 18 V, nominal
Power Consumption typ. 35 W, max 60 W with all options
Operation Time at DC Power Supply about 3 hours
Temperature
Operating Temperature Range 5ºC to 40ºC
Storage Temperature Range -20ºC to 70ºC
Dimensions
W × H × D 399 × 223 × 159 mm
15.7 × 8.78 × 6.26 inches
Weight
Without Battery Pack 6,2 kg
13.7 lbs
With Battery Pack 7.4 kg
16.3 lbs

Additional information

Download Rigol DSA1020 Spectrum Analyzer Data Sheet
Download Rigol DSA1020 Spectrum Analyzer Options & Accessories

Specifications

Max. frequency
  • 3 GHz
Additional features
  • with LF preamplifier
  • with test lead set
