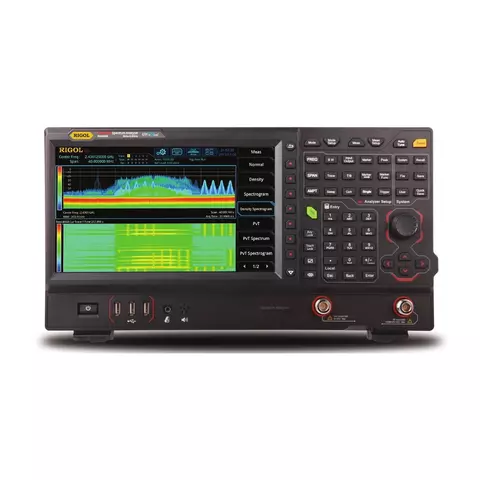

Spectrum Analyzer RIGOL RSA5065-TG

id: 909839
Spectrum Analyzer RIGOL RSA5065-TG
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon

Overview

8 kg Warranty: 24 months
Real-time spectrum analyzer with 9 kHz to 6.5 GHz bandwidth, up to 40 MHz real-time bandwidth. Includes tracking generator 100 kHz - 6.5 GHz. Read more
Price coming soon
Price coming soon
Impossible to estimate the shipping cost

Description

RIGOL RSA5065-TG combines real-time performance, rich data displays, and advanced trigger functions enabling the user to quickly capture, identify, and analyze complex events. The spectrum analyzer can scan the full spectrum ranging between 9 kHz and 6.5 GHz with a maximum throughput of 51.2 Mbps. The device is equipped with a 10.1-inch (25.6 cm) touchscreen display with a resolution of 1024×600 pixels. The built-in tracking generator with a range of 100 kHz - 6.5 GHz makes it possible to use the spectrum analyzer to measure S-parameters.

RIGOL RSA5065-TG is a perfect tool for engineers working with RF technologies (Wi-Fi, Bluetooth, etc).

Features

  • Ultra-Real technology;
  • Frequency: up to 6.5 GHz;
  • Displayed average noise level (DANL): <-165 dBm (typical);
  • Phase noise: <-108 dBc/Hz (typical);
  • Level measurement uncertainty: <0.8 dB;
  • 6.5 GHz tracking generator;
  • Min. RBW 1 Hz;
  • EMC filter and quasi-peak detector;
  • Various measurement functions;
  • Multiple measurement modes;
  • Up to 40 MHz real-time analysis bandwidth;
  • Vector network analyzer application;
  • Multiple trigger modes and trigger masks;
  • Density, spectrogram and other display modes available as software options;
  • 10.1'' (25.6 cm) capacitive multi-touch screen, supporting touch gestures;
  • USB, LAN, HDMI, and other communication and display interfaces

Ultra-Real Technology Features

  • Seamless analysis
    • Seamless I/Q data acquisition in the analysis bandwidth
    • Seamless spectrum analysis
  • FMT
    • Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum
  • Composite displays
    • Spectrogram for gap-free display of the spectrum
    • Density for you to visualize how frequently signals occur

Comparative Specifications

  RSA5032 RSA5032-TG RSA5065 RSA5065-TG
Frequency Range 9 kHz – 3.2 GHz 9 kHz – 6.5 GHz
DANL -165 dBm typ.
Phase Noise -108 dBc/Hz typ.
Real Time Bandwidth Up to 40 MHz
RBW 1 Hz – 10 MHz
Minimum 100% POI 7.45 µs
General Specifications
Power 100 V – 240 V (nominal)
Display 10.1 multi-touch screen LCD, 1024 × 600 pixels
Size 410 mm × 224 mm × 135 mm
Weight 4.95 kg

Technical Specifications

All Measurement Modes

Internal Reference Frequency
Reference Frequency 10 MHz
Accuracy ±[(time since last calibration × aging rate) + temperature stability + calibration accuracy]
Initial Calibration Accuracy Standard: < 1 ppm
Temperature Stability 0 to 50°C , with the reference 25°C, standard: <0.5 ppm
Aging Rate Standard: <1 ppm/year

General-Purpose Spectrum Analyzer (GPSA) Mode

Frequency

Frequency Readout Accuracy
Marker Frequency Resolution span/(number of sweep points - 1)
Marker Frequency Uncertainty ±(marker frequency readout × reference frequency accuracy + 1% × span + 10% × resolution bandwidth + marker frequency resolution)
Frequency Counter
Resolution 1 Hz
Uncertainty ±(marker frequency readout × reference frequency accuracy + counter resolution)
Frequency Span
Range 0 Hz, 10 Hz to maximum frequency
Resolution 2 Hz
Uncertainty ±span/(number of sweep points - 1)
SSB Phase Noise
  20 to 30°C,fc = 500 MHz
Carrier Offset 1 kHz <-95 dBc/Hz (typical)
10 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
100 kHz <-106 dBc/Hz, <-108 dBc/Hz (typical)
1 MHz <-115 dBc/Hz, <-117 dBc/Hz (typical)
RIGOL RSA5000
Residual FM
  20 to 30°C , RBW = VBW = 1 kHz
Residual FM <10 Hz (nominal)
Bandwidth
Resolution Bandwidth (-3 dB) 1 Hz to 10 MHz, in 1-3-10 sequence
RBW Accuracy <5% (nominal)
Resolution Filter Shape Factor (60 dB: 3 dB) <5 (nominal)
Video Bandwidth (-3 dB) 1 Hz to 10 MHz, in 1-3-10 sequence
Resolution Bandwidth (-6 dB) 200 Hz, 9 kHz, 120 kHz, 1 MHz

Amplitude

Measurement Range
Range fc ≥ 10 MHz
DANL to +30 dBm
Maximum Safe Input Level
DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off
-10 dBm, attenuation = 20 dB, preamp on
Maximum Damage Level
CW RF Power +33 dBm (2 W)
RIGOL RSA5000 RIGOL RSA5000
Displayed Average Noise Level (DANL)
  RSA5032 RSA5032-TG RSA5065 RSA5065-TG
Preamp off   attenuation = 0 dB, sample detector, trace averages ≥ 50, tracking generator off, normalized to 1 Hz, 20 to 30°C, input impedance = 50 Ω
9 kHz to 100 kHz <-120 dBm (typical) <-120 dBm (typical)
100 kHz to 20 MHz <-135 dBm, <-140 dBm (typical) <-135 dBm, <-140 dBm (typical)
20 MHz to 1.5 GHz <-142 dBm, <-145 dBm (typical) <-142 dBm, <-145 dBm (typical)
1.5 GHz to 2.7 GHz <-140 dBm, <-143 dBm (typical) <-140 dBm, <-143 dBm (typical)
2.7 GHz to 3.2 GHz <-138 dBm, <-141 dBm (typical) <-138 dBm, <-141 dBm (typical)
3.2 GHz to 5.5 GHz   <-138 dBm, <-143 dBm (typical)
5.5 GHz to 6.5 GHz   <-136 dBm, <-141 dBm (typical)
Preamp on 100 kHz to 20 MHz <-152 dBm, <-160 dBm (typical) <-152 dBm, <-160 dBm (typical)
20 MHz to 1.5 GHz <-162 dBm, <-165 dBm (typical) <-162 dBm, <-165 dBm (typical)
1.5 GHz to 2.7 GHz <-160 dBm, <-163 dBm (typical) <-160 dBm, <-163 dBm (typical)
2.7 GHz to 3.2 GHz <-158 dBm, <-161 dBm (typical) <-158 dBm, <-161 dBm (typical)
3.2 GHz to 5.5 GHz   <-156 dBm, <-161 dBm (typical)
5.5 GHz to 6.5 GHz   <-154 dBm, <-159 dBm (typical)
RIGOL RSA5000 RIGOL RSA5000
Level Display
Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, quasi-peak
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
Frequency Response
  RSA5032 RSA5032-TG RSA5065 RSA5065-TG
  attenuation = 10 dB, relative to 50 MHz, 20 to 30°C
Preamp off 100 kHz to 3.2 GHz <0.5 dB, <0.3 dB (typical) <0.5 dB, <0.3 dB (typical)
3.2 GHz to 6.5 GHz   <0.7 dB, <0.5 dB (typical)
  attenuation = 0 dB, relative to 50 MHz, 20 to 30°C
Preamp on 100 kHz to 3.2 GHz <0.7 dB, <0.3 dB (typical) <0.7 dB, <0.3 dB (typical)
3.2 GHz to 6.5 GHz   <0.9 dB, <0.5 dB (typical)
RIGOL RSA5000 RIGOL RSA5000
Input Attenuation Switching Uncertainty
Setting Range 0 dB to 50 dB, in 1 dB step
Switching Uncertainty fc = 50 MHz, relative to 10 dB, preamp off, 20 to 30°C
<0.3 dB
RIGOL RSA5000 RIGOL RSA5000
Absolute Amplitude Accuracy
Uncertainty fc = 50 MHz, peak detector, preamp off, attenuation = 10 dB, input signal level = -10 dBm, 20 to 30°C
<0.3 dB
Reference Level
Range Logarithmic Scale -170 dBm to +30 dBm, in 0.01 dB step
Linear Scale 707 pV to 7.07 V, 0.11% (0.01 dB) resolution
RBW Switching
Uncertainty 1 Hz to 1 MHz: <0.1 dB
3 MHz, 10 MHz: <0.3 dB
Level Measurement Uncertainty
  95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamp off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20 to 30°C
Level Measurement Uncertainty <0.8 dB (nominal)
RIGOL RSA5000
RF Input VSWR
  RSA5032 RSA5032-TG RSA5065 RSA5065-TG
VSWR 300 kHz to 3.2 GHz <1.6 (nominal) <1.6 (nominal)
3.2 GHz to 6.5 GHz   <1.8 (nominal)
RIGOL RSA5000 RIGOL RSA5000
Distortion
Second Harmonic Intercept (SHI) fc ≥ 50 MHz, input signal level = -20 dBm, attenuation = 0 dB, preamp off
+45 dBm
Third-order Intercept (TOI) fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 0 dB, preamp off
+11 dBm, +15 dBm (typical)
1 dB Gain Compression (P1dB) fc ≥ 50 MHz, attenuation = 0 dB, preamp off
0 dBm (norminal)
RIGOL RSA5000
Spurious Response
Residual Response input terminated with a 50 Ω load, attenuation = 0 dB, 20 to 30°C
<-90 dBm, <-100 dBm (typical)
Intermediate Frequency <-60 dBc
Input-related Spurious mixer level = -30 dBm
<-60 dBc

Sweep

Sweep Time span ≥ 10 Hz 1 ms to 4,000 s
zero span 1 μs to 6,000 s
Sweep Time Uncertainty span ≥ 10 Hz, RBW ≥ 1 kHz 5% (nominal)
zero span (sweep time > 1 ms) 5% (nominal)
Sweep Mode continue, single

Trigger

Trigger Source free run, external 1, external 2, video
Trigger Delay span ≥ 10 Hz 0 to 500 ms
zero span 0 to 500 ms

Tracking Generator

Frequency range 100 kHz to 3.2 GHz
Output level range -40 dBm to 0 dBm
Output level resolution 1 dB
Output flatness relative to 50 MHz
±3 dB (nominal)

Real-time Spectrum Analyzer (RTSA) Mode

Real-time Analysis Bandwidth 25 MHz
Min. Signal Duration for 100% POI at the Full-Scale Accuracy 7.45 μs
Trace Detector pos-peak, neg-peak, sample, average
Number of Traces 6
Window Type Hanning, Blackman-Harris, Rectangular, Flattop, Kaiser, and Gaussian
Resolution Bandwidth Span Min. bandwidth Max. bandwidth
40 MHz 100 kHz 3.21 MHz
25 MHz 62.8 kHz 2.01 MHz
10 MHz 25.1 kHz 804 kHz
1 MHz 2.51 kHz 80.4 kHz
100 kHz 251 Hz 8.04 kHz
Max. Sample Rate 51.2 MSa/s
FFT Rate 146,484/s (norminal)
Number of Markers 8
Amplitude Resolution 0.01 dB
Frequency Point 801
Acquisition Time >156.5 μs (max. sample rate)
Amplitude
Amplitude Flatness <0.5 dB (nominal)
SFDR <-60 dBc (typical)
UltraReal Density
Probability Range 0 to 100% (with a step of 0.1%)
Min. Span 5 kHz
Persistence Duration 32 ms to 10 s
UltraReal Spectrogram
History Depth 8,192
Dynamic Range Covered by Bitmap Color 200 dB
UltraReal PVT
Min. Acquisition Time 187.9 μs
Max. Acquisition Time 40 s
Trigger
Trigger Source free run, external 1, external 2, power, FMT
UltraReal FMT
Trigger Diagram density, spectrogram, normal, PVT
Trigger Resolution 0.5 dB (nominal)
Trigger Criteria enter, leave, inside, outside, enter-leave, leave-enter

Package Contents

  • RIGOL RSA5065-TG real-time spectrum analyzer — 1 pc.
  • Power cable — 1 pc.

Specifications

Additional features
  • with tracking generator
Max. frequency
  • 6,5 GHz
