Brand: Anritsu
9.6 kg 220 V Warranty: 12 months
Handheld spectrum, cable and antenna analyzer with 100 kHz to 4 GHz frequency for Return Loss, VSWR, Cable Loss, Distance-To-Fault (DTF) and other measurements. Read more
USD 11200.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 11200.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

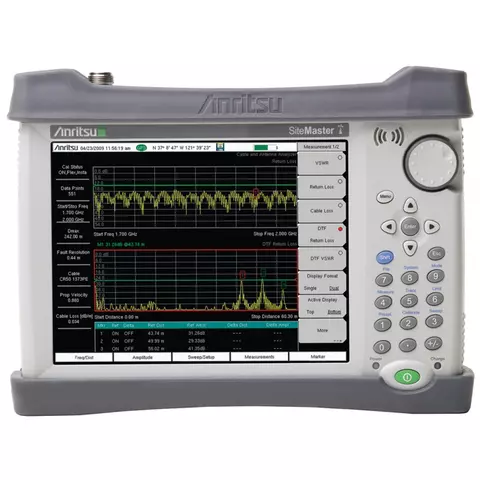

Anritsu S332E Site Master is a handheld spectrum, cable and antenna analyzer which will help in cable and antenna installation and maintenance for wireless service providers, contractors, military, aerospace and defense, and public safety applications.

Spectrum, Cable & Antenna Analyzer Anritsu S332E Site Master Features

  • Measurements: return loss, VSWR, cable loss, Distance-To-Fault, Smith chart
  • Two-port transmission measurement: high/low power
  • Sweep speed: 1 msec/data point, typical
  • Calibration: OSL, InstaCal, and FlexCal
  • Replaceable Li-Ion battery lasts for more than 4 hours
  • Bright 8.4-inch color display
  • Designed specifically for field environments

Spectrum, Cable & Antenna Analyzer Anritsu S332E Site Master Technical Specifications

Cable and antenna analyzer
Frequency 2 MHz to 4 GHz
Sweep time 1 msec/data point, typical
Directivity > 42 dB, OSL calibration, > 38 dB, InstaCal™ calibration
Dynamic range > 95 dB in 10 Hz RBW
Spectrum analyzer
Frequency 100 kHz to 4 GHz
DANL -152 dBm in 10 Hz RBW
Phase noise -100 dBc/Hz max @ 10 kHz offset at 1 GHz
General
Internal trace 2,000 traces, 2,000 setups
External trace Limited by size of USB flash drive
Connectivity Ethernet, USB cable, USB memory stick, and RS-232
Display 8.4-inch color LCD, touchscreen, 800 × 600
Battery Li-Ion, 4 hours, typical
Dimensions 273 × 199 × 91 mm
Weight 3.71 kg

Additional information

Download Download Anritsu S332E User Manual.

Download Download Anritsu S332E Data Sheet.

Spectrum, Cable & Antenna Analyzer Anritsu S332E Site Master Package Contents

  • Anritsu S332E Site Master main unit (1 pc.)
  • Power adapter (1 pc.)
  • Automotive cigarette lighter 12 VDC adapter (1 pc.)
  • USB mini-B cable (1 pc.)
  • Soft carrying case (1 pc.)
  • Anritsu Tool Box with Line Sweep Tools DVD disc (1 pc.)
  • Documentation CD (1 pc.)
  • User manual (1 pc.)
Specifications
Max. frequency
  • 4 GHz
