Stereo Microscope ST-series ST-B-L
id: 863887

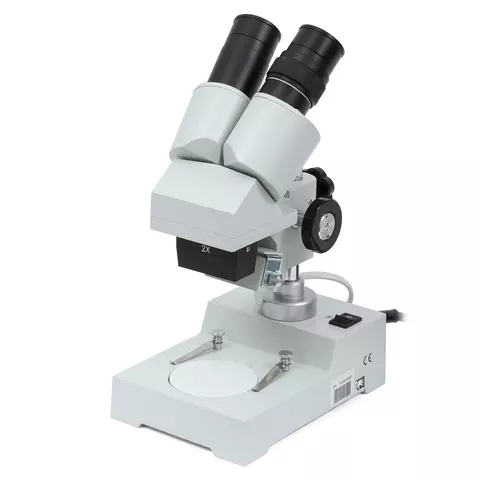

Stereo Microscope ST-series ST-B-L
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
4.5 kg 220 V Warranty: 6 months
Binocular microscope, objective: 2X, eyepiece: 10X. Diopter adjustment: ± 5 mm. The interpupillary distance adjustable between 55-75 mm. Light: top . Read more
Price coming soon
Description
ST-series ST-B-L Stereo Microscope features a 45°inclined binocular head. The magnification may be changed using different objectives between 5X and 120X for different applications.
Features
- 45°inclined binocular head.
- Slide-in objective.
- Diopter adjustment of range ± 5 mm.
- The interpupillary distance adjustable between 55-75 mm.
Technical Specifications
| Eyepiece | WF10X / 20 mm |
| Objective | 2X / 81 mm |
| Head | 45° inclined |
| Stand | top light |
| Plate | Ø 60 mm |
Objective Optics Parameters
| Slide-in objective | Magnification | Field of view | Working distance |
| 1X | 1X | 20 mm | 56 mm |
| 2X | 2X | 10 mm | 81 mm |
| 3X | 3X | 6.7 mm | 61 mm |
| 4X | 4X | 5 mm | 58 mm |
| 6X | 6X | 3.33 mm | 66 mm |
Package Contents
- ST-series ST-B-L Stereo Microscope — 1 pc.
Specifications
| Type |
|
| Maximum Zoom Ratio |
|
| Illumination |
|
| Zoom Rate Control Method |
|
