Overview
2.1 kg 220 V
Wire stripper, punch down tool, modular crimper, multi-modular cable tester, 6-position 4 contact flat stranded, 8-position 8 contact round stranded connectors.
Description
Pro'sKit PK-4016 telecom termination kit consists of wire stripper tool, punch down tool, modular crimping tool, multi-modular cable tester, 6-position 4 contact flat stranded and 8-position 8 contact round stranded connectors.
Pro'sKit PK-4016 Telecom Termination Kit Features
- Wire stripper for stripping shielded (UTP) and unshielded (UTP) cables, and multiconductor cables with max diameter of 3.2-9 mm
- Punch down tool with 110/66 blades
- Modular crimping tool
- Connectors for voice and data cables including DEC and AMP constructions (comply with TIA/EIA 568A requirements for 4 pair application)
- Multi-modular cable tester for RJ45 TIA568A/B (AT&T 258A), 10 Base-T, Token ring, RJ-11/ RJ-12 USOC and coaxial BNC cables
Pro'sKit PK-4016 Telecom Termination Kit Technical Specifications
| Wire stripper | |
|---|---|
| Material | ABS |
| Application | for wire (UTP/STP) and multiconductor cable 3.2-9 mm max |
| Replacement blade | Pro'sKit 5PK-501-BL (6 pcs/pack) |
| Punch down tool | |
| Material | SAE4140 (HRC: 45°) |
| Blade types | w/2 style 110/88 and 66 |
| Overall length | 146 mm (w/o blade) |
| Modular crimping tool | |
| Material | S45C |
| Application | for RJ45/8P, RJ11/6P ratchet type |
| Replacement blade | Pro'sKit 508-376ER-B (2 pcs/pack) |
| HRC | HV 555~650° |

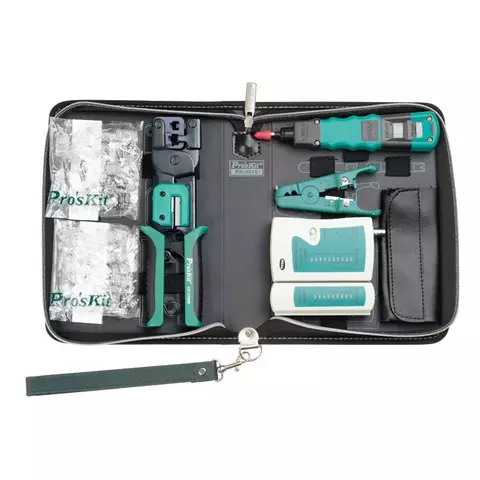

Pro'sKit PK-4016 Telecom Termination Kit Package
- Wire stripper tool Pro'sKit 6PK-501 (1 pc.)
- Punch down tool with 110/66 blades Pro'sKit 8PK-3140N (1 pc.)
- Modular crimping tool Pro'sKit 8PK-376ER (1 pc.)
- 6-position 4 contact flat stranded connectors Pro'sKit 9RJ-11-50 (50 pcs./bag)
- 8-position 8 contact round stranded connectors Pro'sKit 9RJ-45-25(25 pcs./bag)
- Multi-modular cable tester Pro'sKit MT-7051 (1 pc.)
- Zipper case (1 pc.)
Read more
Description
Pro'sKit PK-4016 telecom termination kit consists of wire stripper tool, punch down tool, modular crimping tool, multi-modular cable tester, 6-position 4 contact flat stranded and 8-position 8 contact round stranded connectors.
Pro'sKit PK-4016 Telecom Termination Kit Features
- Wire stripper for stripping shielded (UTP) and unshielded (UTP) cables, and multiconductor cables with max diameter of 3.2-9 mm
- Punch down tool with 110/66 blades
- Modular crimping tool
- Connectors for voice and data cables including DEC and AMP constructions (comply with TIA/EIA 568A requirements for 4 pair application)
- Multi-modular cable tester for RJ45 TIA568A/B (AT&T 258A), 10 Base-T, Token ring, RJ-11/ RJ-12 USOC and coaxial BNC cables
Pro'sKit PK-4016 Telecom Termination Kit Technical Specifications
| Wire stripper | |
|---|---|
| Material | ABS |
| Application | for wire (UTP/STP) and multiconductor cable 3.2-9 mm max |
| Replacement blade | Pro'sKit 5PK-501-BL (6 pcs/pack) |
| Punch down tool | |
| Material | SAE4140 (HRC: 45°) |
| Blade types | w/2 style 110/88 and 66 |
| Overall length | 146 mm (w/o blade) |
| Modular crimping tool | |
| Material | S45C |
| Application | for RJ45/8P, RJ11/6P ratchet type |
| Replacement blade | Pro'sKit 508-376ER-B (2 pcs/pack) |
| HRC | HV 555~650° |
Pro'sKit PK-4016 Telecom Termination Kit Package
- Wire stripper tool Pro'sKit 6PK-501 (1 pc.)
- Punch down tool with 110/66 blades Pro'sKit 8PK-3140N (1 pc.)
- Modular crimping tool Pro'sKit 8PK-376ER (1 pc.)
- 6-position 4 contact flat stranded connectors Pro'sKit 9RJ-11-50 (50 pcs./bag)
- 8-position 8 contact round stranded connectors Pro'sKit 9RJ-45-25(25 pcs./bag)
- Multi-modular cable tester Pro'sKit MT-7051 (1 pc.)
- Zipper case (1 pc.)
