Thermal Imaging Camera FLIR E8
id: 858133
Thermal Imaging Camera FLIR E8
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 6800.00
Overview
5 kg 110, 220 V Warranty: 12 months
Infrared thermal imaging camera with MSX® Thermal Image Enhancement. Temperature range from -20 to 250ºC. IR image resolution: 76,800 pixels (320 x 240). Read more
USD 6800.00
Buy wholesale and save
Description

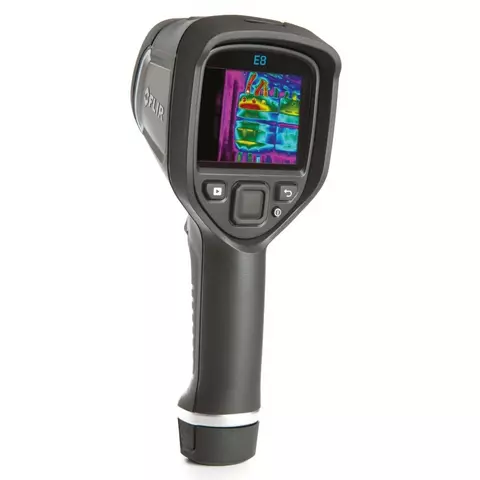

FLIR E8 is an infrared thermal imaging camera with MSX® Thermal Image Enhancement.
Features
- Temperature range from -20 to 250ºC (-4 to 482ºF).
- MSX adds key details from the onboard visible light camera to the entire infrared image in real time to get an all-in-one thermal picture with numbers, labels, and other structural features.
- Simple button navigation.
- Removable Li-ion battery.
- Fast temperature measurement tools.
- Multiple imaging modes.
- Variable emissivity and reflected temperature parameters for detection accuracy.
- PC and Mac compatible.
- Quick re-charge via USB style charger.
- Bright 3" display.
- Encased in rubber - 2 meter drop test.
Technical Specifications
| Features | FLIR E4 | FLIR E5 | FLIR E6 | FLIR E8 |
|---|---|---|---|---|
| IR Pixel Resolution | 4,800 (80 x 60) | 10,800 (120 x 90) | 19,200 (160 x 120) | 76,800 (320 x 240) |
| Thermal Sensitivity | < 0.15°C | < 0.10°C | < 0.06°C | < 0.06°C |
| Temperature Range | -20 to 250ºC (-4 to 482ºF) | |||
| Measurement modes | Centerspot | Centerspot, Area Box, Auto Hot/Cold detection | Centerspot, Area Box, Auto Hot/Cold detection | Centerspot, Area Box, Auto Hot/Cold detection |
| Frame Rate | 9Hz | |||
| Field of View | 45º x 34º | |||
| Focus | Focus free | |||
| Auto Hot/Cold Detection | No | Auto min/max markers within area | Auto min/max markers within area | Auto min/max markers within area |
Additional Information
Download FLIR E8 Data Sheet.
Package Contents
- FLIR E8 Thermal Imaging Camera — 1 pc.
- Replacement battery — 2 pcs.
- Power supply/charger with EU, UK, US and AU plugs — 1 pc.
- External battery charger — 1 pc.
- USB cable — 1 pc.
- Hard Transport Case — 1 pc.
Specifications
| Max. temperature |
|
| Min. temperature |
|
| Refresh rate |
|
