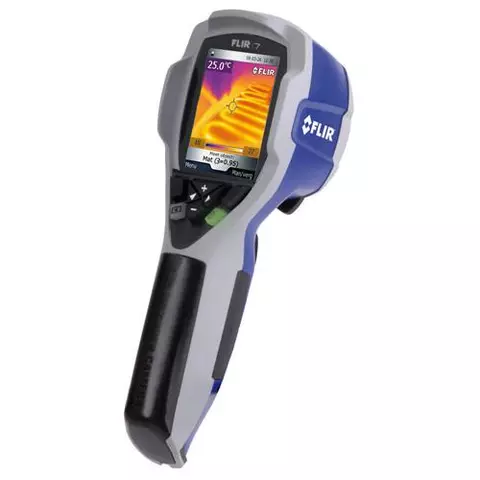

Thermal Imaging Camera FLIR i7
id: 824321
Thermal Imaging Camera FLIR i7
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 2370.00
Overview
1.5 kg 110, 220 V Warranty: 12 months
120 x 120 pix resolution, temperature range -20 to +250°C, working environment -15 to +50°C, 1 GB memory on SD card, fixed focus. Read more
Buy wholesale and save
Description
FLIR i7 thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. FLIR i7 thermal imaging camera would be useful in identifying repairing problems, insurance assessments, avoiding electrical faults, heating and cooling systems defects, car service and medicine. Fully automatic affordable thermal imaging camera can be easily connected to PC. The information about the infrared heating appears immediately on large color LCD and does not require any previous experience with such equipment.
FLIR i7 Thermal Imaging Camera User Manuals
Download additional information about FLIR i7 thermal imaging camera
FLIR i7 Thermal Imaging Camera Features
- High accuracy
- 0.1°C thermal sensitivity for thermally sensitive targets
- light weight, pocket size and fully automated design
- Color LCD with high resolution
- Double molded rugged design
- Easy grip handle construction
- More than 4 hour continuous operation on a single charge
- Storage of up to 5000 radiometric .jpeg images
FLIR i7 Thermal Imaging Camera Technical Specifications
| Optical data and imaging | |
|---|---|
| Minimum focus distance | 0.6 m |
| Field of view | 25° × 25° |
| Spatial resolution | 3.7 mrad |
| Thermal sensitivity | < 0.1°C / 100 mK |
| F-number | 1.5 |
| Focus | fixed |
| Image frequency | 9 Hz |
| Detector data | |
| Spectral range | 7.5 - 13 μm |
| Detector type | focal plane array (FPA), uncooled microbolometer |
| IR resolution | 120 × 120 pixels |
| Measurement | |
| Object temperature range | -20°C to +250°C |
| Measurement | ±2°C or ±2% of reading |
| Spotmeter | center spot |
| Emissivity table | predefined materials |
| Emissivity correction | variable form 0.1 to 1.0 |
| Reflected apparent temperature correction | automatic, depends on reflected temperature input |
| Color palettes | black and white, iron and rainbow |
| Image storage and data communication interfaces | |
| File formats | .jpeg, 14-bit measurement data included |
| Storage medium | microSD card |
| Interfaces | USB mini-B |
| General information | |
| Battery | rechargeable Li-Ion battery, 3.6 V operation time approx. 5 hours AC adapter |
| Display | color LCD, 2.8" |
| Dimentions, mm | 223 × 79 × 83 |
| Weight | 0.34 kg (battery included) |
FLIR i7 Thermal Imaging Camera Package
- Thermal imaging camera FLIR i7
- USB mini-B cable
- MicroSD card (512 MB)
- Hand strap
- Li-Ion rechargeable battery
- 100-240 V AC adaptor /charger with EU, UK, US and Australian plugs
- QuickReport software
- Hard case
