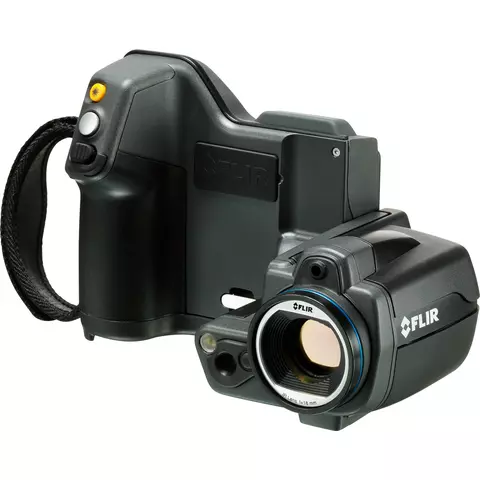

Thermal Imaging Camera FLIR T420

id: 838467
5 kg 110, 220 V Warranty: 12 month (s)
320×240 infrared camera with rotating optical block. Wi-Fi connectivity, voice comments, remote control. Temperature range: -20°C to 650°C.
USD 12000.00
Notify
when in stock
USD 12000.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

FLIR T420 Thermal Imaging Camera is a 320×240 infrared camera characterized by exceptional performance and multiple functions. A rotating optical block delivers ergonomic comfort, plus a new faster frame rate and faster auto focus provide greater performance. Includes a host of onscreen measurement features plus built-in Wi-Fi connectivity to iOS/Android devices for remote control and video streaming.

FLIR T420 Features

  • 320 × 240 infrared detector.
  • Rotating optical block for ergonomic comfort.
  • Accurate temperature measurements (± 2°C or ± 2%)
  • Wi-Fi connectivity. Possibility to send images and data to smart phones and tablets (i.e. iPhone®, iPad®, iPod touch® , or Android™) to share images and critical information quickly using FLIR Tools Mobile app.
  • Possibility to add voice comments via Bluetooth headset and text notes from the touchscreen keypad.
  • Possibility to create PDF document directly from the camera for reporting.
  • Touch-screen 3.5" color LCD.
  • Manual/Automatic camera focus with laser pointer.
  • Remote control option.
  • Interchangeable lens.
  • SD card slot for image storage (more than 1,000 Radiometric JPEG images).

FLIR T420 Technical Specifications

Temperature range -4°F to 1202°F / -20°C to 650°C
Zoom 4X Continuous
Frame Rate 60Hz
Field of view 25° × 19°
Minimum focus distance 1.31 ft / 0.4 m
Focus Manual/Automatic
Thermal sensitivity <0.045°C @ 30°C
Detector 320 × 240 pixels
Spectral range 7.5 to 13μm
Display touch-screen 3.5" color LCD
Image modes Thermal/Visual/Fusion/P-i-P and Thumbnail Gallery
Image Storage 1000 radiometric JPEG images (SD card memory)
Image annotation Voice (60 sec); text comments, Sketch, image markers on IR
Periodic image storage 7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual)
Lens 25° (optional 6°, 15°, 45°, 90°, Close up 100, 50μm lenses available)
Video Lamp Bright LED lamp
Laser Classification/Type Class 2/Semiconductor AlGalnP Diode Laser: 1 mW / 635 nm (red)
Interfaces USB-mini, USB-A, Bluetooth, Wi-Fi, composite video
Power supply Li-lon Battery, AC adapter
Operating time (using battery) >4 hours, Display shows battery status
Shock / Vibration 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6
Dimensions 4.2×7.9×4.9" / 106×201×125 mm
Weight 1.94 lbs / 0.88 kg, including battery

FLIR T420 Video Review

Youtube video

Additional Information

Download FLIR T420 Data Sheet.

FLIR T420 Package Contents

  • FLIR T420 Thermal Imaging Camera unit (1 pc.)
  • SD Memory Card (1 pc.)
  • 100-260V AC adaptor/charger (1 pc.)
  • Li-Ion rechargeable batteries (2 pcs.)
  • 2-bay battery charger (1 pc.)
  • FLIR Tools software (1 pc.)
  • USB cable (1 pc.)
  • Video cable (1 pc.)
  • Sun shield (1 pc.)
  • Bluetooth® headset (1 pc.)
  • Camera lens cap (1 pc.)
  • Neckstrap (1 pc.)
  • Hard case (1 pc.)
Specifications
Max. temperature
  • up to 650 °C
Min. temperature
  • from -20 °C
Refresh rate
  • 60 Hz
Video
Youtube video
Delivery
Payment
Warranty
Thermal Imaging Camera FLIR T420 - Short description
Thermal Imaging Camera FLIR T420
USD 12000.00
