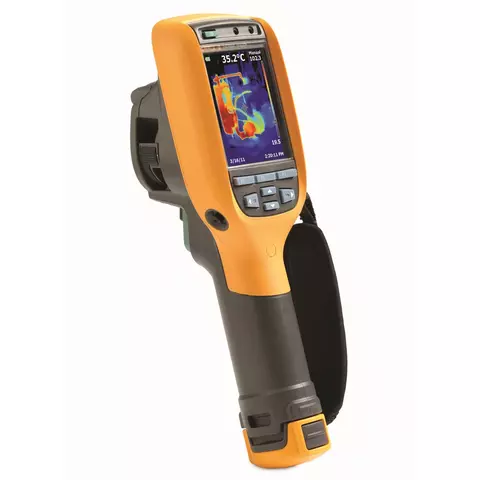

Thermal Imaging Camera Fluke Ti125
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
Brand:
4 kg 110, 220 V Warranty: 12 months
Industrial-commercial thermal imaging camera for preforming infrared inspections faster and more efficiently while thoroughly documenting problem areas. Capture or refresh rate: 9 Hz. Read more
Discontinued
Description
Fluke Ti125 is an industrial-commercial thermal imaging camera for preforming infrared inspections faster and more efficiently while thoroughly documenting problem areas for additional follow-up.
Features
- Exclusive IR-OptiFlex focus system: good focus from 1.2 meters (4 feet) and beyond for optimum image clarity and scanning convenience.
- IR-PhotoNotes annotation system: add up to 3 visible digital images of important information and surrounding areas per file.
- Multi-mode video recording — focus-free video in visible light.
- Capturing an image in portrait or landscape is easy.
- Voice Annotation.
- Wide field of view; with no optional lens.
- Image rotation in SmartView for analysis and reporting purposes.
- Electronic compass: eight-point cardinal compass readings.
- Detector type – Vanadium oxide (Vox).
- Stream live, focus-free video to a PC using SmartView software (or to a display via PC).
- Built-in Laser Pointer/Torch.
- Smart battery system: replaceable, rechargeable lithium-ion batteries.
- Light weight and well balanced.
- Rugged design: designed to pass 2-meter drop test; tested to withstand vibration, electromagnetic, radio frequency interference, temperature extreme, high humidity; recessed protected lens, lens guard, integrated lens cover, durable display, adjustable hand strap.
- SmartView Software: easy to use; free upgrades; free license sharing; advanced analysis features.
Additional Information
Download Fluke Ti125 User Manual.
Download Fluke Ti125 Data Sheet.
Technical Specifications
| IR resolution (FPA size) | 160 x 120 FPA Uncooled Microbolometer |
| Spectral band | 7.5 μm to 14 μm (long wave) |
| Capture or refresh rate | 9 Hz |
| NETD (Thermal sensitivity) | ≤ 0.10°C at 30°C target temp (100 mK) |
| FOV (Field of view) | 22.5 °H x 31 °V |
| IFOV (Spatial resolution) | 3.39 mRad |
| Temperature measurement range (not calibrated below -10°C) |
-20°C to +350°C (-4°F to +662°F) |
| Temperature measurement accuracy | ± 2°C or 2% (at 25°C nominal, whichever is greater) |
| IR-Fusion technology | IR-OptiFlex focus system |
| Focus mechanism | PIP, FULL IR, FULL VISIBLE, AutoBlend |
| Color alarms | High temperature, low temperature, isotherm |
| Standard palettes | Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
| Ultra Contrast palettes | Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
| Hot/cold markers | Yes |
| User definable spot markers | Three on camera and in SmartView |
| Centerbox (MIN/AVG/MAX) | Yes |
| Level and span control | Manual and auto |
| Minimum span in auto mode | 5°C |
| Minimum span in manual mode | 2.5°C |
| Minimum IR focus distance | 15.25 cm (6 in) |
| Weight | 0.726 kg (1.6 lb) |
| Size | 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display | 3.5 inch diagonal (portrait format) |
| Visible camera | 2 megapixel industrial-grade |
| Minimum automatic parallax correction | ~18-22 inches |
| IR-PhotoNotes annotation system | Yes (3 images) |
| Laser pointer | Yes |
| Torch | Yes |
| Electronic (cardinal) compass | Yes |
| Emissivity correction | Yes |
| Transmission correction | Yes |
| Background (reflected) compensation | Yes |
| Voice annotation (audio) | Yes (60 seconds) per image |
| Multi-mode video output | Streaming USB video output (infrared, visible and IR-Fusion modes) |
| Multi-mode video recording (standard avi w/ mpeg encoding) |
Yes (AVI with MPEG encoding, up to 5 minutes) |
| Memory review | Thumbnail review |
| Battery | Two (field-replaceable, rechargeable) |
| Battery life | 4+ hours (each) (Assumes 50% brightness of LCD) |
| External battery charging base | Included |
| Charging power supply | Included |
| Drop test | 2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) | IP 54 |
| Recommended calibration cycle | Two years |
| Multifunction card reader | Included |
| Memory storage | 2 GB SD memory card |
| Direct download capability | mini USB download direct to PC |
| Operating temperature range | -10°C to +50°C (14°F to 122°F) |
| Storage temperature range | -20°C to +50°C (-4°F to 122°F) |
| Operating humidity | Operating and storage 10% to 95%, Non-condensing |
| Vibration and shock | 2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards | CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick | IEC/EN 61326-1 |
| EMI, RFI, EMC | EN61326-1; FCC Part 5 |
Package Contents
- Thermal imager — 1 pc.
- AC power adapter — 1 pc.
- Lithium ion smart battery — 2 pcs.
- USB cable — 1 pc.
- SD memory card — 1 pc.
- Hard carrying case — 1 pc.
- Soft transport bag — 1 pc.
- Adjustable hand strap (left- or right-handed use) — 1 pc.
- Printed users' manual in English, Spanish, French, German and Simplified Chinese, all other manuals on CD — total of 18
- SmartView® software and warranty registration card — 1 pc.
- Two-bay charging base — 1 pc.
- Multi-format USB memory card reader — 1 pc.
