Trinocular Microscope ZTX-3E (1x~4x)

id: 9105
Trinocular Microscope ZTX-3E (1x~4x)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
Contact
sales team
Overview
7.1 kg 220 V Warranty: 6 months
1X-4X objective trinocular zoom stereo microscope supplied with a pillar style stand.
USD 250.00
Contact
sales team
Compare
Compare
USD 250.00
Contact
sales team
Impossible to estimate the shipping cost
Description

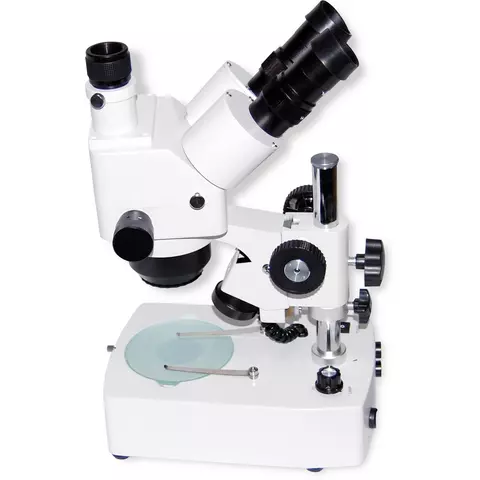

ZTX-3E is a trinocular microscope with rotating 1x/4x zoom objective on a bay. Third ocular is developped especially for USB-cameras. It allow user to conduct a research and simultaneously record data. To achieve this one of the USB-cameras can be used. Precise optic system with an ocular adjustment angle up to 45°. During objective rotation to the 180° point it is possible to switch between 1x/4x zoom options, which provide clear stereo image and wide field of view. ZTX-3Ecan be used in electronic and precise machine-building industry for assembling and inspecting products with irregular surface.

Specifications:
Read more
Description

ZTX-3E is a trinocular microscope with rotating 1x/4x zoom objective on a bay. Third ocular is developped especially for USB-cameras. It allow user to conduct a research and simultaneously record data. To achieve this one of the USB-cameras can be used. Precise optic system with an ocular adjustment angle up to 45°. During objective rotation to the 180° point it is possible to switch between 1x/4x zoom options, which provide clear stereo image and wide field of view. ZTX-3Ecan be used in electronic and precise machine-building industry for assembling and inspecting products with irregular surface.

Specifications:
  • Clear image in a wide field of view
  • During the objective rotation to the 180° point it is possible to switch between two zoom options 1x/4x
  • Backlight Top and low
Technical specifications
  • Ocular space range 55-75 mm
  • Left ocular diopre correction: +- 5 dioptre
  • Top light reflector halogen light (120V/10W)
  • Low light: light bulb (12V/10W)
  • Electric components are CE-certified
  • Power suplly: 220/50 Hz
  • Working distance 85 mm
  • Zoom: 10x-40x
Contents of a package
  • ZTX-3E trinocular microscope
  • 1x/4x objective lens
  • WF 10X ocular lense (2 pcs)
  • Satinated glass plate
  • Protective holster
  • Rubber ocular straps
Specifications
Type
  • maintenance
  • trinocular
Maximum Zoom Ratio
  • up to 40X
Illumination
  • upper light
  • bottom light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
