Overview
0.4 kg Warranty: 6 months
Handheld color digital microscope with video output using TV screen as a viewfinder. Advantageous features and numerous application fields.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

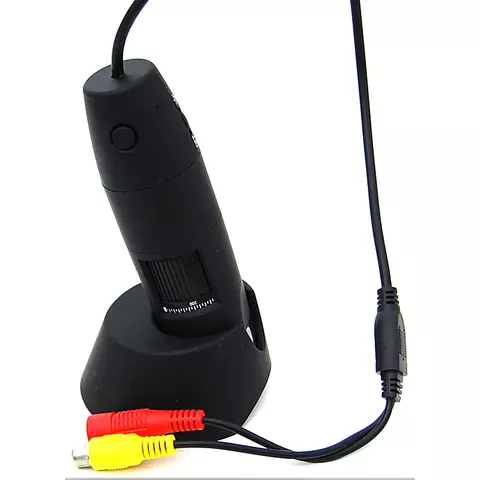

MV1301u TV-Microscope is a handheld color digital microscope with video output able to transform your TV screen into a microscope viewfinder. Due to its advantageous features and outstanding user-friendliness, MiView TV Microscope totally changes the conception of traditional microscope.

Application fields

  • Industrial nspection, electronics/mechanical assembly and quality control
  • Medical analysis, dermatology (skin / scalp) examination
  • Scientific and school research tool
  • Printing inspection
  • Textile inspection
  • Dissection/observing of insects and plant
  • Collections / curio / jewelry inspection
  • Reading aid etc.

Features

  • Small and portable handheld TV digital microscope
  • Easy and user friendly operating
  • Clear high definition images
  • High magnification

Specifications

Camera type Color CMOS camera
Sensor 1/4"Imax CMOS
Array size 656 x 492
Illumination 8 pcs white adjustable LEDs
Frame frequency 60 fps
Optical features Gamma correction: auto
Numerical aperture: auto
Exposure: auto
White balance: auto
Sensitivity boost +42 dB
Flicker cancellation: auto
Defective pixel correction: auto
Color saturation: auto
Signal interface Standard video RCA
Power source DC 5.0 V
Power consumption 0.4 W max
Adjustable magnification 10x ∼ 200x
Object distance 0 ∼ 200 mm
Dimensions 36 mm (diameter) x 120 mm (length)

Package Contains

  • 1 pcs TV Microscope
  • 1 pcs Stand + 2 pcs transparent covers
  • 1 pcs DC 5.0 V power unit
  • User manual
Read more
Description

MV1301u TV-Microscope is a handheld color digital microscope with video output able to transform your TV screen into a microscope viewfinder. Due to its advantageous features and outstanding user-friendliness, MiView TV Microscope totally changes the conception of traditional microscope.

Application fields

  • Industrial nspection, electronics/mechanical assembly and quality control
  • Medical analysis, dermatology (skin / scalp) examination
  • Scientific and school research tool
  • Printing inspection
  • Textile inspection
  • Dissection/observing of insects and plant
  • Collections / curio / jewelry inspection
  • Reading aid etc.

Features

  • Small and portable handheld TV digital microscope
  • Easy and user friendly operating
  • Clear high definition images
  • High magnification

Specifications

Camera type Color CMOS camera
Sensor 1/4"Imax CMOS
Array size 656 x 492
Illumination 8 pcs white adjustable LEDs
Frame frequency 60 fps
Optical features Gamma correction: auto
Numerical aperture: auto
Exposure: auto
White balance: auto
Sensitivity boost +42 dB
Flicker cancellation: auto
Defective pixel correction: auto
Color saturation: auto
Signal interface Standard video RCA
Power source DC 5.0 V
Power consumption 0.4 W max
Adjustable magnification 10x ∼ 200x
Object distance 0 ∼ 200 mm
Dimensions 36 mm (diameter) x 120 mm (length)

Package Contains

  • 1 pcs TV Microscope
  • 1 pcs Stand + 2 pcs transparent covers
  • 1 pcs DC 5.0 V power unit
  • User manual
Specifications
Type
  • TV
Maximum Zoom Ratio
  • up to 200X
Illumination
  • upper light
Zoom Rate Control Method
  • smooth adjustment of multiplicity
Image Sensor Size
  • 0.3 MP
