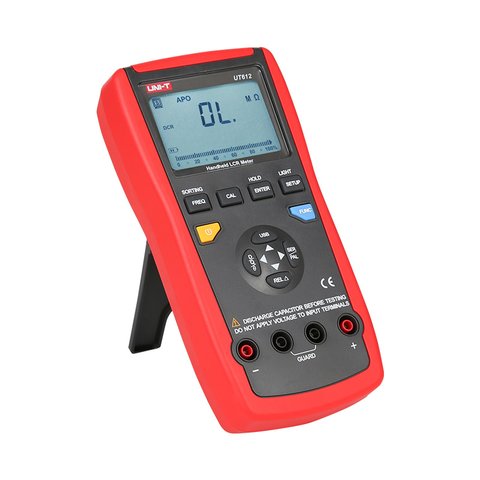

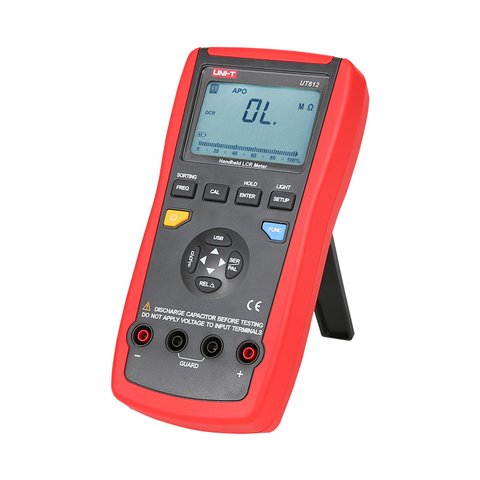

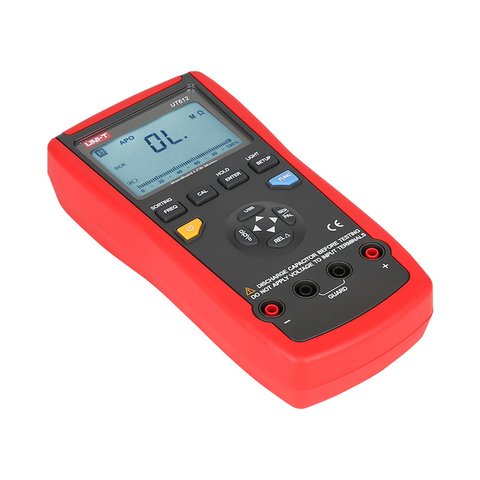

LCR Meter UNI-T UT612

id: 854603
LCR Meter UNI-T UT612
Overview
Description
Delivery
Payment
Warranty
USD 155.77
Notify
when in stock
Overview
Rate product
1.16 kg Warranty: 24 months
Handheld digital LCR meter measures resistance, capacitance and inductance. 19999/1999 digit LCD. Read more
USD 155.77
Notify
when in stock
Add to wishlist
Compare
Compare
USD 155.77
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

LCR Meter UNI T UT603
Bestseller
Add to wishlist
ID: 819447
LCR Meter UNI-T UT603
USD 38.46
Add to wishlist
Add to cart
A digital LCR meter for resistance, capacitance, inductance measurements, and for continuity, diode and transistor tests.
Availability in stock: HK
Shipping cost
ID: 819447 0.53 kg
Description

UNI-T UT612 digital LCR meter measures resistance, capacitance and inductance.

Features

  • Measurement/test functions:
    • resistance
    • capacitance
    • inductance
  • Auto range
  • Real-time display of test frequency
  • Data hold
  • Relative mode
  • Analogue bar graph
  • Deviation ratio measurement
  • Screening function
  • Calibration function
  • USB interface
  • LCD backlight
  • Low battery indication
  • Auto power off

Technical Specifications

Display 19999/1999 digit LCD, 40 × 63 mm
Resistance, Ω Range 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ
Accuracy ±(0.3%+5)
Capacitance, F Range 200 pf / 2000 pF / 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2000 µF / 20 mF
Accuracy ±(0.5%+5)
Inductance, H Range 20 µH / 200 µH / 2 mH / 20 mH / 200 mH / 2 H / 20 H / 200 H / 2000 H / 20 KH
Accuracy ±(0.5%+5)
Test frequency 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz
Power 9 V battery (6F22) or USB
Dimensions 96 × 193 × 47 mm
Weight 374 g

User Manual

Download UNI-T UT612 User Manual.

Sofware

Download UNI-T UT612 Sofware.

Package Contents

  • LCR meter UNI-T UT612
  • Test leads with measurement tweezers
  • USB cable
  • Shorting plate
  • User manual
  • Carrying case

Note! Batteries are not included in the package.
