Description

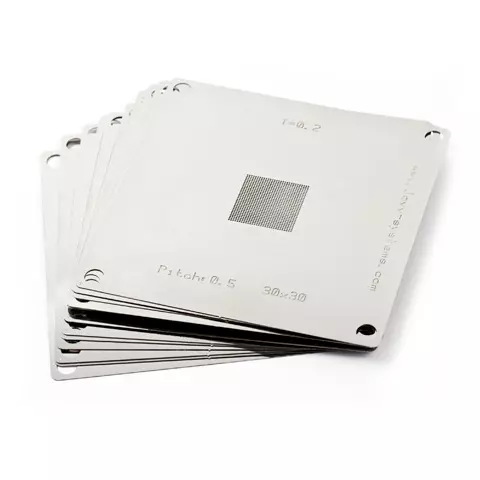

Jovy Systems JV-RMS universal BGA rework stencils for repair of most of the IC types, pitch sizes, ball matrix and patterns.
Warning! Do not use a solder paste for reballing purposes!
Download additional information about Jovy Systems JV-RMS Universal BGA Reballing Stencils.
Features
- BGA stencils are made of stainless steel.
- Compatible with the upper preheater of Jovy Systems RE-7500 infrared BGA rework station and other soldering stations.
- Compatible with Jovy Systems JV-JIG BGA reballing stand.
Technical Specifications
| Diameter | Thickness | Pitch | Number of holes | Ball pattern |
| 0.76mm | 0.25mm | 1.50 | 900 | 30×30 |
| 0.76mm | 0.25mm | 1.27 | 900 | 30×30 |
| 0.76mm | 0.25mm | 1.27 | 1600 | 40×40 |
| 0.65mm | 0.25mm | 1.00 | 1600 | 40×40 |
| 0.65mm | 0.25mm | 1.00 | 900 | 30×30 |
| 0.65mm | 0.25mm | 1.00 | 400 | 20×20 |
| 0.45mm | 0.25mm | 0.80 | 900 | 30×30 |
| 0.45mm | 0.25mm | 0.80 | 400 | 20×20 |
| 0.40mm | 0.20mm | 0.70 | 900 | 30×30 |
| 0.30mm | 0.20mm | 0.60 | 900 | 30×30 |
| 0.30mm | 0.20mm | 0.50 | 900 | 30×30 |
| 0.25mm | 0.15mm | 0.50 | 900 | 30×30 |
Package Contents
- 2 stencils 40×40
- 8 stencils 30×30
- 2 stencils 20×20
