Overview
4 kg Warranty: 6 months
Device for programming EPROM, Paged EPROM, Parallel and serial EEPROM, FPGA Serial PROM, NOR FLASH, BPROM, NVRAM, CPLD, MCU, Firmware HUB, ARM, Standard Logic Devices (TTL/CMOS), etc. USB 2.0, high-speed CPU. Read more
Description

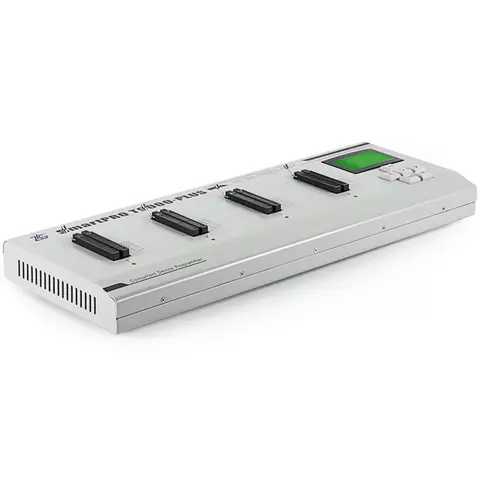

ZLG SmartPRO T9000-PLUS is a device for programming EPROM, Paged EPROM, Parallel and serial EEPROM, FPGA Serial PROM, NOR FLASH, BPROM, NVRAM, CPLD, MCU, Firmware HUB, ARM, Standard Logic Devices (TTL/CMOS), etc.
Compatibility
The programmer supports operation with almost 20.000 devices from more than 100 manufacturers.
Features
- 4 universal 48-pin drivers.
- Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
- Four independent universal programming modules in one, completely asynchronous operation, just as four independent universal programmers.
- High-speed CPU + FPGA architecture.
- Innovative engineering encryption technology.
- CF card storage.
- Built-in 32 MB memory.
- User production control.
- Remote output control function (authorization required).
- 128 × 64 dot matrix LCD display.
- USB 2.0 interface.
- PC connection. Software requirements: Windows NT/2000/XP/7/8.
Application
- Device repair – re-flashing microchips, microcontrollers.
- Flashing new microchips.
- Serial manufacturing - microchips, microcontrollers programming.
- Restoring data from microchips of solid-state drives like memory cards, USB flash drives.
Technical Specifications
| Input/Output | 4 × built-in 48 pin connector |
| Supported Devices | EPROM, Paged EPROM, Parallel and serial EEPROM, FPGA Serial PROM, NOR FLASH, BPROM, NVRAM, CPLD, MCU, Firmware HUB, ARM, Standard Logic Devices (TTL/CMOS), etc. |
| Package Types | DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP |
| Interface | USB 2.0 |
| Storage | built-in 32 MB memory, a Compact-Flash card |
| Power Supply | Input 100 V-240 V AC, output 24 V DC/6 A |
| Size, L × W × H | 564 × 205 × 50 mm |
| Weight | 0.9 kg (without package) |
Package Contents
- ZLG SmartPro T9000-PLUS Universal Programmer — 1 pc.
- Power Adapter — 1 pc.
- USB Cable — 1 pc.
- Software — 1 pc.
- User Manual — 1 pc.
Optional Accessories
- Adapters
- Compact-Flash card
