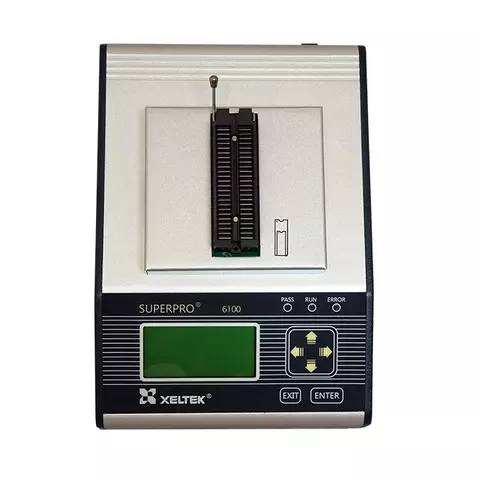

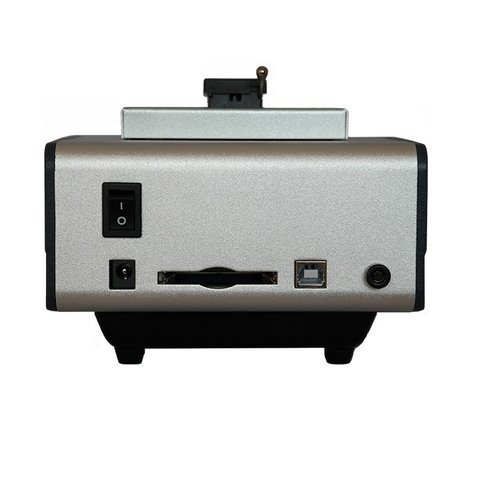

Xeltek SuperPro 6100 is a device for programming EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR, NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, FWH, microcontrollers, standard micrologic circuits.
Compatibility
The programmer supports operation with almost 100.000 devices from more than 350 manufacturers. See the complete list.
Features
- Universal 144-pin driver supports the latest microchips with different package types.
- Possibility to connect 99% of the existing microelectronic circuits in case you buy a corresponding adapter.
- Support devices with Vcc from 1.2V - 5V.
- In-system programming (ISP / ICP) capability.
- Support files up to 256 GB.
- Two operation modes: PC hosted mode for research, stand-alone mode for manufacturing.
- In stand-alone mode the operator may connect multiple units (up to 15 in one cluster) to construct a concurrent multi-programming system.
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
- Software updates.
- RoHS compatible, CE, ISO 9001, ISO 14001 certificates.
Application
- Device repair – re-flashing microchips, microcontrollers.
- Flashing new microchips.
- Serial manufacturing - microchips, microcontrollers programming.
- Restoring data from microchips of solid-state drives like memory cards, USB flash drives.
Technical Specifications
| Input/Output |
built-in 144 pin connector |
| Package Types |
DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP |
| Interface |
USB 2.0 |
| Software compatible OS |
Windows XP, Windows Vista, Windows 7 (32/64 bit) |
| Power Supply |
Input 100 V-250 V AC, output 12 V DC/1.5 A |
| Size, L × W × H |
216 × 148 × 94 mm |
| Weight |
1.6 kg (without package) |
Package Contents
- USB Interfaced Universal Programmer Xeltek SuperPro 6100 — 1 pc.
- Adapter DIP48 — 1 pc.
- AC Power Adapter — 1 pc.
- USB Cable — 1 pc.
- CD with Software — 1 pc.
- User Manual — 1 pc.
Optional Accessories
- Adapters
- Compact-Flash (CF) card
