Victor VC60B+ Insulation Resistance Tester
id: 910969
Victor VC60B+ Insulation Resistance Tester
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 37.87
USD 28.99
Overview
Bestseller
1 kg
Availability in stock:
HK
Warranty: 12 months One-button DC 250/500/1000 V, AC 750 V, 2 GΩ digital insulation resistance meter Read more
USD 37.87
USD 28.99
Description

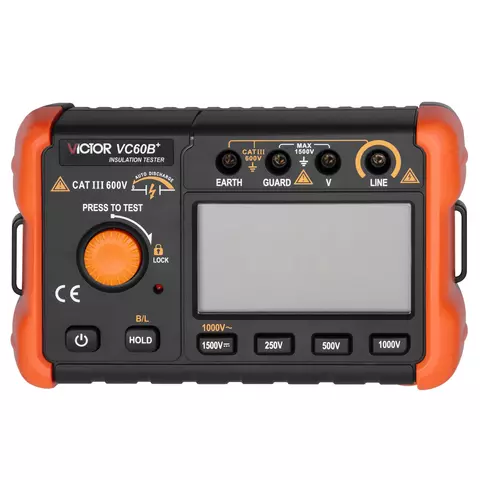

Victor VC60B+ is a digital insulation resistance tester measuring insulation resistance up to 2.0 GΩ. This ohmmeter has a 1999-digit 84.8 x 59.8 mm backlit LCD display, a dual-slope type ADC for insulation resistance measurement, and a low-power, high-efficiency 9 VDC to 250/500/1000 V DC converter. A wide measurement range, a thoughtful ergonomic design, and reliability make Victor VC60B+ a perfect choice for testing insulation resistance in the electrical engineering industry, cable networks, electrical, telecommunications, and mechanical equipment, and power supply systems.
Features
- Automatic/manual ranging;
- 1999-count backlit LCD display;
- Data hold;
- Overrange indication;
- High voltage alarm;
- Low battery indication;
- Auto power off for convenience;
- Neck strap keeps both hands free for work
Technical Specifications
Measurement Functions
| Output voltage | 250 V | ±10% | ||
| 500 V | ||||
| 1000 V | ||||
| Automatic range | Manual range | |||
| Insulation resistance | 250 V | 0.1 ~ 20 MΩ | 20 ~ 500 MΩ | ±4%+2 |
| 500 V | 0.1 ~ 50 MΩ | 50 ~ 1000 MΩ | ||
| 1000 V | 0.1~100 MΩ | 100 ~ 2000 MΩ | ||
| Short circuit current | 250 V | 1.8 mA | ||
| 500 V | 1.8 mA | |||
| 1000 V | 1.6 mA | |||
| AC voltage measurement range | 0 ~ 750 V | ±1%+6 | ||
General Specifications
| Display count | 1999 | ||
| Display type | Backlit LCD display, 84.8 × 59.8 mm | ||
| Frequency range | 50 ~ 200 Hz | ||
| Input impedance | 1 MΩ | ||
| Operating temperature | 0 ~ 40°C | ||
| Power supply | AA 1.5 V battery × 6 pcs | ||
| Size | 175 × 110 × 70 mm | ||
| Weight | 630 g | ||
Package Contents
- Victor VC60B+ insulation resistance tester – 1 pc.
- Measurement cables with clips – 1 pair
- Silicone test cables – 1 pair
- Cardboard storage box – 1 pc.
- Strap – 1 pc.
- User's manual – 1 pc.
Specifications
| Max. measurable resistance |
|
| Max. voltage |
|
