Tester for AC and DC voltage (including the three-phase alternating current) measurements, phase of three-phase AC power indicator, on-off test, RCD test.
Availability in stock:
HK
ID: 864107 0.5 kg

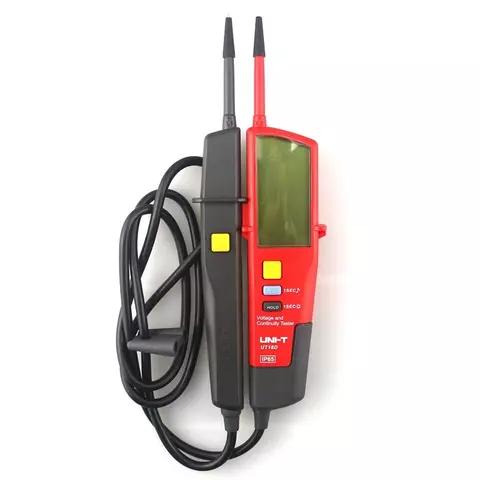

UNI-T UT18D is a tester for AC and DC voltage (including the three-phase alternating current) measurements, phase of three-phase AC power indicator, on-off test, RCD test, self checking and other functions.
Suitable for: smelting, electronics, manufacturing, defense, electric power, petroleum, chemical industry. Also used to solve complex problems of electronic, factory automation, power distribution and electrical equipment.
Function | Range | Accuracy |
---|---|---|
LED AC/DC Voltage Indication | 12 V | 8 V ±2 V |
24 V | 18 V ±2 V | |
50 V | 38 V ±4 V | |
120 V | 92 V ±6 V | |
230 V | 174 V ±8 V | |
400 V | 320 V ±10 V | |
690 V | 550 V ±15 V | |
Phase Rotation Test | Operating Voltage: 100 V ~ 690 V | |
Frequency:50 Hz ~ 60 Hz | ||
Continuity Test | Resistance: 0 ~ 100 KΩ | |
Beeper and LED light indicator | ||
RCD Test | Operating Voltage:230 V (50 Hz ~ 400 Hz) | |
Polarity Detection | Positive & Negative | |
Self-inspection | All LED or LCD indicator | |
General Characteristics | ||
Power | 1.5 V Batteries (R03) × 2 | |
Display | LCD, 31×20 mm | |
Size | 272 × 85 × 31 mm | |
Weight | 280 g |
Note! Batteries are not included in the package.
