Wire Tracer UNI-T UT683KIT

id: 898472
0.9 kg Warranty: 24 month (s)
The wire tracker which consists of the transmitter and receiver. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

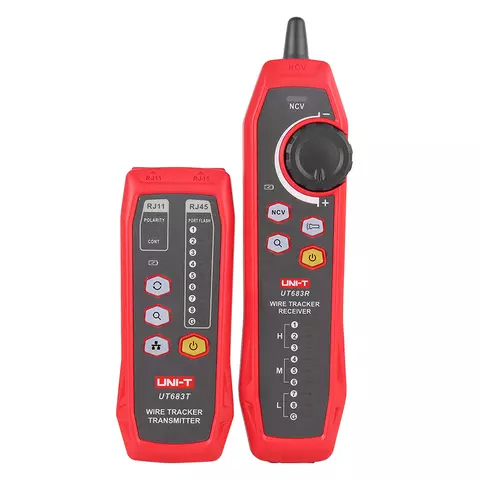

UNI-T UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.

The tester is used for the installation and repair of telecommunication and computer networks, data transmission devices, cable TV, etc.

Features

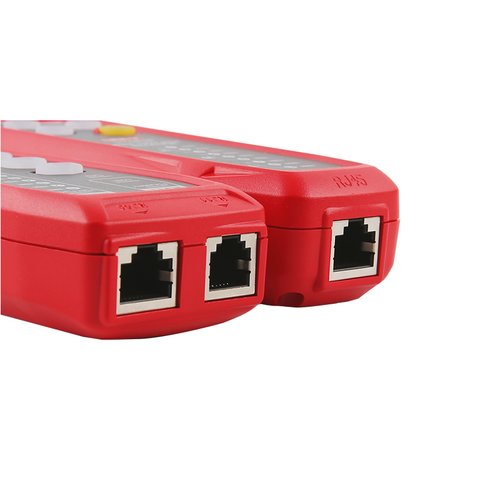

  • Equipped with RJ45 interface for Ethernet cable and RJ11 interface for telephone line testing
  • Low battery indication.
  • Strong anti-interference ability.
  • Non-contact voltage detection (NCV mode).
  • Built-in flashlight.
  • Headset jack.

Technical Specifications

Transmitter
Line alignment +
Open-short test / polarity test +
Operating time >8 hours
Receiver
Wire tracking RJ11 >3000 m; RJ45 >100 m
NCV function +
Headset jack 3.5 mm
Low battery indication +
Operating time >5 hours
General Specifications
Power 1050 mAh rechargeable lithium battery
Dimensions transmitter: 130 mm × 51 mm × 28 mm
receiver: 197 mm × 48 mm × 34 mm
Weight transmitter: around 95 g
receiver: around 127 g

User Manual

PDF  Download UNI-T UT683KIT user manual.

Package Contents

  • Transmitter — 1 pc.
  • Receiver — 1 pc.
  • Micro USB charging cable — 1 pc.
  • RJ11 adapter cable — 1 pc.
  • RJ11 alligator clip adapter cable — 1 pc.
  • RJ45 adapter cable — 1 pc.
  • User manual — 1 pc.
  • Pouch — 1 pc.
Specifications
Cable length measurement
  • not available
USB Cable Testing
  • not available
Twisted pair cable testing
  • available
Coaxial cable testing
  • not available
Locator function
  • available
