AOYUE 2738 Repairing System
id: 7092
AOYUE 2738 Repairing System
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
6.7 kg 220 V Warranty: 12 months
3 in 1 multifunctional repairing system. Combines functions of a hot air gun, a soldering iron and a smoke absorber. Read more
You may also like
Description

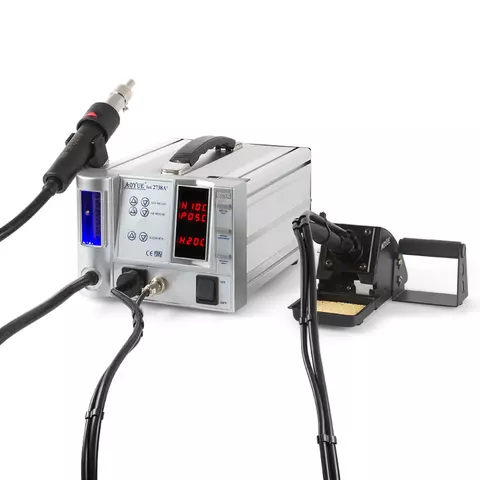

AOYUE 2738 it’s a 3 in 1 multifunctional repairing system for lead-free and smoke free operation. Combines functions of a hot air gun, soldering iron and a smoke absorber. Microprocessor controlled ESD safe unit with digital display of hot air temperature, soldering iron temperature and air pressure with touch panel controls. Unique feature: 15-minute standby auto sleep mode. Returns to previous setting when the handle is held up again. Programmable reworking time from 20 to 9999 seconds. Auto cooling feature. When the unit is turned off, it starts to blow cold air until the device reaches a safe temperature of 85 °C. This ensures safety and prolongs operation life of the heating element. Efficient compound tip design allows to connect the ceramic heater, sensor, control unit and tip as a single unit. Tip replacement with an easy slip in/out method. Built-in smoke extractor that absorbs the fumes produced by the device. Eliminates the view hindering smoke thus creating healthier working environment. Compatible with various types of air nozzles and soldering tips.
SPECIFICATIONS:
MAIN STATION |
|
Power input |
220 V |
Dimensions |
188(W) × 126(H) × 250(D) mm |
SOLDERING IRON |
|
Power consumption |
70 W |
Temperature range |
250–480 °C |
Heating element |
ceramic heater |
Output voltage |
24 V |
HOT AIR GUN |
|
Power consumption |
500 W |
Temperature range |
100–480 °C |
Heating element |
metal heating core |
Pump/motor type |
diaphragm pump |
Air capacity |
23 l/min (max) |
SMOKE ABSORBER |
|
Vacuum pressure |
600 mm Hg |
Package includes:
- Main station with a hot air gun
- Replaceable air nozzles (1124, 1130, 1197, 1313, 1919)
- Z003 hot air gun holder
- Soldering iron with built in smoke absorber
- Soldering iron holder with solder wire stand
- Tip with heater cartridge
- 10094 spare heating element
- Vacuum suction pen
- 2 pcs filter pads
- G001 IC popper
- Power cord
Compatible Soldering Tips
 |
||
| Conical Soldering Tips | ||
|---|---|---|
 AOYUE WQ-LI |
 AOYUE WQ-I |
 AOYUE WQ-LB |
 AOYUE WQ-B |
 AOYUE WQ-2B |
|
| Bevel Type Soldering Tips | ||
 AOYUE WQ-1BC |
 AOYUE WQ-2BC |
 AOYUE WQ-3BC |
 AOYUE WQ-1C |
 AOYUE WQ-4C |
|
| Chisel Type Soldering Tips | ||
 AOYUE WQ-08D |
 AOYUE WQ-12D |
 AOYUE WQ-16D |
 AOYUE WQ-24D |
 AOYUE WQ-4D |
 AOYUE WQ-52D |
 AOYUE WQ-08LD |
 AOYUE WQ-12LD |
|
| Bent Type Soldering Tips | ||
 AOYUE WQ-02J |
||
| Knife Type Soldering Tips | ||
 AOYUE WQ-K |
 AOYUE WQ-KL |
 AOYUE WQ-KU |
| Microwave Type Soldering Tips | ||
 AOYUE WQ-2BCM |
 AOYUE WQ-3BCM |
|
| Tunnel Type Soldering Tips | ||
 AOYUE WQ-1401 |
 AOYUE WQ-1402 |
 AOYUE WQ-1403 |
 AOYUE WQ-1404 |
||
