Arbitrary Waveform / Function Generator Rigol DG3101A
id: 810706
Arbitrary Waveform / Function Generator Rigol DG3101A
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
3 kg 110, 220 V Warranty: 36 months
Mixed signal generator with digital logic output has 16 data channels and 2 clock channels, Sine frequency to 100 MHz, 1 M points waveform length. Read more
Description

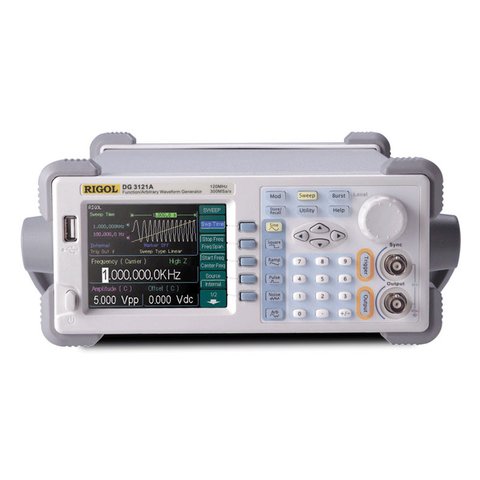

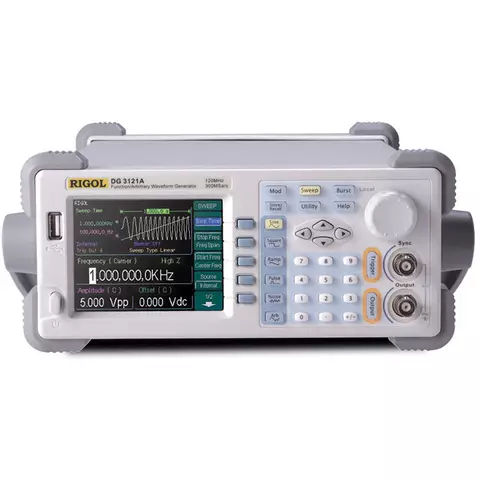

Rigol DG3101A arbitrary waveform / function generator adopts DDS technology which provides stable, high-precision, pure and low distortion sine signals. Rigol DG3101A can generate square waveform with fast rising and falling edges. The excellent system features, user friendliness and versatile functions combination makes this arbitrary waveform / function generator a perfect solution for IC, serial bus and in-circuit function tests, simulation of sensors and natural environment signals. Rigol DG3101A single channel arbitrary waveform / function generator has an intuitive user interface and simple front panel layout and instructions. Versatile terminals, direct graph interface, built-in instructions and help system simplify the operation process. Built-in AM, FM, PM, PWM and FSK modulating functions generate modulated waveforms without the assistance of a separate modulating source.
Rigol DG3101A Arbitrary Waveform / Function Generator User Manuals
Download Rigol DG3101A arbitrary waveform / function generator user manual
Download additional information about Rigol DG3101A arbitrary waveform / function generator
Rigol DG3101A Arbitrary Waveform / Function Generator Features
- 10 standard waveforms
- Sine
- Square
- Ramp
- Pulse
- Noise
- Sin(x)/x
- Exponential rise
- Exponential fall
- Cardiac
- DC
- Colour LCD display
- Multilingual user interface
- Connectivity: USB Host, USB Device, LAN, GPIB and RS-232
- Advanced Direct Digital Synthesis (DDS) technology
- 300 MS/s sample rate
- 14 bits vertical resolution
- 1024 K points waveform length
- 4 waveforms of non-volatile memory
- Multiple modulation functions: AM, FM, PM, PWM, FSK, and output linear/logarithm Sweep and Pulse train waveform outputs
Rigol DG3101A Arbitrary Waveform / Function Generator Technical Specifications
| Standard waveforms | |||
|---|---|---|---|
| Waveforms | Sine, Square, Ramp, Triangle, Pulse, Noise, DC and arbitrary waveforms |
||
| Sine | 1 μHz to 100 MHz | ||
| Square | 1 μHz to 50 MHz | ||
| Pulse | 500 μHz to 25 MHz | ||
| Ramp | 1 μHz to 1 MHz | ||
| White noise | 40 MHz (-3 db) | ||
| Resolution | 1 μHz | ||
| Sine wave spectral purity | |||
| Harmonic distortion | DC | < 1 Vpp | > 1 Vpp |
| to 20 kHz | -70 dBc | -70 dBc | |
| 20 kHz to 100 kHz | -65 dBc | -60 dBc | |
| 100 kHz to 1 MHz | -50 dBc | -45 dBc | |
| 1 MHz to 10 MHz | -40 dBc | -35 dBc | |
| Total harmonic distorion | to 20 kHz | 1 Vpp >0.2% | |
| Spurious (non-harmonic) | DC to 1 MHz | < -70 dBc | |
| 1 MHz to 10 MHz | < -70 dBc + 6 dB/octave | ||
| Phase noise | –115 dBc / Hz, typical | ||
| Square wave characteristic | |||
| Rise/fall time | <5 ns (10% to 90%) | ||
| Overshoot | <2% | ||
| Duty cycle | to 25 MHz | 20% to 80% | |
| to 50 MHz | 40% to 60% | ||
| >50 MHz | 50% | ||
| Assymmetry (below 50% of the duty cycle) | 1% of the period + 5 ns | ||
| Jitter | 300 ns + 100 ppm % of the period | ||
| Pulse wave characteristics | |||
| Pulse bandwidth | 2000 s max, 8 ns min,1 ns min resolution | ||
| Overshoot | <2% | ||
| Jitter | 300 ps + 100 ppm % of the period | ||
| Arbitrary wave characteristics | |||
| Waveform length | 2 to 1024K points | ||
| Amplitude accuracy | 14 bits (including sign) | ||
| Sample rate | 300 MS/s | ||
| Minimum rising /falling time | 35 ns | ||
| Jitter (RMS) | 6 ns + 30 ppm | ||
| Non-volatile storage | 4 waveforms | ||
| Output characteristics | |||
| Amplitude | 10 mVpp to 10 Vpp (50 Ω) 20 mVpp to 20 Vpp (High Z) |
||
| Amplitude accuracy (1 kHz) |
± 1% of setting + 1 mVpp | ||
| Amplitude flatness (sine wave relative to 100 kHz) | <40 MHz 0.20 dB 40 MHz ∼ 80 MHz 0.60 dB 80 MHz ∼ 120 MHz 1.0 dB |
||
| DC offset | |||
| Range (peak AC + DC) |
±5 V (50 Ω) ±10 V (High Z) |
||
| Accuracy | ±( 2% of the offset setting ± 0.5% (| V offset |) of the amplitude ± 2 mV) | ||
| AM modulation | |||
| Carrier waveforms | Sine, Square, Ramp, Arb | ||
| Source | internal/ external | ||
| Modulating waveforms | Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz) | ||
| Depth | 0% to 120% | ||
| FM modulation | |||
| Carrier waveforms | Sine, Square, Ramp, Arb | ||
| Source | internal/ external | ||
| Modulating waveforms | Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz) | ||
| Frequency deviation | DC ∼ 60 MHz | ||
| PM modulation | |||
| Carrier waveforms | Sine, Square, Ramp, Arb | ||
| Source | internal/ external | ||
| Modulating waveforms | Sine, Square, Ramp, Noise, Arb (2 mHz to 20 kHz) | ||
| Phase deviation | 0 ∼ 360° | ||
| FSK modulation | |||
| Carrier waveforms | Sine, Square, Ramp, Arb | ||
| Source | internal/ external | ||
| Modulating waveforms | 50% duty cycle square (2 mHz to 100 kHz) | ||
| Sweep | |||
| Carrier waveforms | Sine, Square, Ramp, Arb | ||
| Type | linear or logarithmic | ||
| Direction | up or down | ||
| Sweep time | 1 ms ∼ 500 s ± 0.1% | ||
| Source | internal/ external/ manual | ||
| Burst | |||
| Waveforms | Sine, Square, Ramp, Pulse, Noise, Arb | ||
| Types | count (1 to 1,000,000 periods), infinite, gated | ||
| Start phase | -360° to +360° | ||
| Internal period | 1 μs to 300 s ± 1% | ||
| Gate source | external trigger | ||
| Trigger source | internal/ external/ manual | ||
| General specification | |||
| Display | 256 horizontal × 64 vertical | ||
| Power | 100 to 240 V AC RMS, 45 to 440 Hz, CAT II, less than 50 W |
||
| Dimentions, mm | 232 × 107.5 × 365 | ||
| Weight | 3.56 kg | ||
Rigol DG3101A Arbitrary Waveform / Function Generator Package
- Waveform generator Rigol DG3101A
- Power cord
- USB cable
- CD with software and manual
- Calibration form, packing list, warranty card and quick guide
Rigol DG3101A Arbitrary Waveform / Function Generator Optional Accessories (are not Included in Package)
- 40 dB attenuator
- BNC cable
- 10 W power amplifier
- RS-232 cable
- Digital logic output module
