Function/Arbitrary Waveform Generator SIGLENT SDG2122X

id: 862793
Function/Arbitrary Waveform Generator SIGLENT SDG2122X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 899.00
Contact
sales team
Overview
6 kg 110, 220 V Warranty: 36 months
Dual-channel function/arbitary waveform generator with 120 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
USD 899.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 899.00
Contact
sales team
Impossible to estimate the shipping cost
Description

SIGLENT SDG2122X is a device of SDG2000X series of dual-channel function/arbitrary waveform generators. SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Features

  • Dual-channel, 120 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
  • High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution.
  • Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 75 MSa/s.
  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • Plenty of analog and digital modulation types: AM、DSB-AM、FM、PM、FSK、ASK and PWM.
  • Sweep and Burst functions.
  • High precision Frequency Counter.
  • Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
  • 4.3” touch screen display for easier operation.

Technical Specifications

Model SDG2042X SDG2082X SDG2122X
Bandwidth 40 MHz 80 MHz 120 MHz
Output channels 2
Sampling rate 1.2 GSa/s (4X Interpolation)
Wave length CH1: 16 Kpts, CH2: 512 Kpts
Frequency resolution 1μHz
Vertical resolution 16 bit
Standard interfaces USB Host, USB Device (USBTMC), LAN (VXI-11)
Dimensions, W×H×D 260.3mm×107.2mm×295.7mm
Weight 3.43 kg

Video

Youtube video

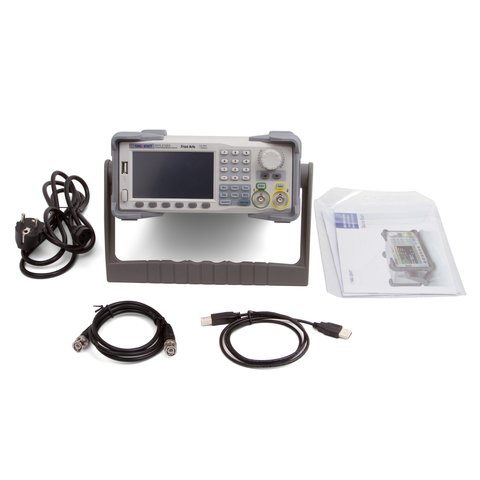

Package Contents

  • Siglent SDG2122X Function/Arbitrary Waveform Generator — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Guarantee Card — 1 pc.
Read more
Description

SIGLENT SDG2122X is a device of SDG2000X series of dual-channel function/arbitrary waveform generators. SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Features

  • Dual-channel, 120 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
  • High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution.
  • Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 75 MSa/s.
  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • Plenty of analog and digital modulation types: AM、DSB-AM、FM、PM、FSK、ASK and PWM.
  • Sweep and Burst functions.
  • High precision Frequency Counter.
  • Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
  • 4.3” touch screen display for easier operation.

Technical Specifications

Model SDG2042X SDG2082X SDG2122X
Bandwidth 40 MHz 80 MHz 120 MHz
Output channels 2
Sampling rate 1.2 GSa/s (4X Interpolation)
Wave length CH1: 16 Kpts, CH2: 512 Kpts
Frequency resolution 1μHz
Vertical resolution 16 bit
Standard interfaces USB Host, USB Device (USBTMC), LAN (VXI-11)
Dimensions, W×H×D 260.3mm×107.2mm×295.7mm
Weight 3.43 kg

Video

Youtube video

Package Contents

  • Siglent SDG2122X Function/Arbitrary Waveform Generator — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Guarantee Card — 1 pc.
Specifications
Max. signal frequency
  • 120 MHz
Channels
  • dual channel
