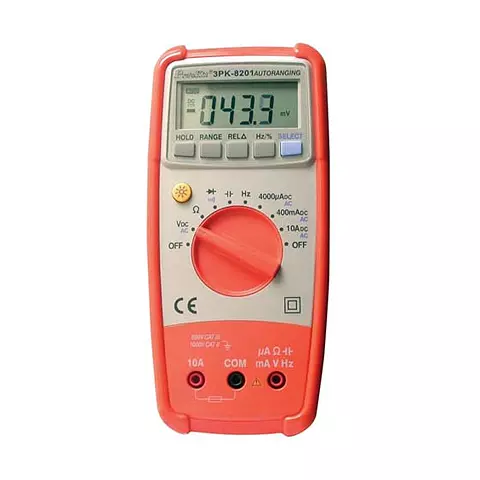

Autoranging Digital Multimeter Pro'sKit 3PK-8201

id: 11203
Autoranging Digital Multimeter Pro'sKit 3PK-8201
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
0.71 kg Warranty: 6 months
High-precision measurement. Capacity measurement. Digit capacity - 3999. Automatic/manual ranging.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT136B+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT136B+
USD 17.59
Add to wishlist
Add to cart
Measures up to 1000 V and 10 A DC/AC voltage and current. Large LCD screen and 4 x/s sampling rate provide users with more accurate readings.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883718 0.5 kg
Digital Multimeter Accta AT 290
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-290
USD 22.00
Add to wishlist
Add to cart
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and can be used for continuity, transistor and diode tests.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891501 0.65 kg
Description

High-precision measurement. Capacity measurement. Digit capacity - 3999. Automatic/manual ranging.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit 3PK-8201 Autoranging Digital Multimeter Technical Specifications

Ranging automatic/manual
Counts 3999
DC voltage 400mV/4/40/400V ±0.7%
1000V ±0.8%
AC voltage 4/40/400V ±0.8%
750V ±1.0%
DC current 4000µA/400mA ±1.2%
10A ±2.0%
AC current 4000µA/400mA ±1.5%
10A ±3.0%
Frequency 10/100/1000Hz/10/100kHz/1MHz ±2.0%
Resistance 400Ω/4/40/400kΩ/4MΩ ±1.2%
40MΩ ±2.0%
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Charge battery indication yes
Display illumination yes
Power source 6F22 (9V) × 1
Dimensions 185 × 84 × 38 mm
Read more
Description

High-precision measurement. Capacity measurement. Digit capacity - 3999. Automatic/manual ranging.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit 3PK-8201 Autoranging Digital Multimeter Technical Specifications

Ranging automatic/manual
Counts 3999
DC voltage 400mV/4/40/400V ±0.7%
1000V ±0.8%
AC voltage 4/40/400V ±0.8%
750V ±1.0%
DC current 4000µA/400mA ±1.2%
10A ±2.0%
AC current 4000µA/400mA ±1.5%
10A ±3.0%
Frequency 10/100/1000Hz/10/100kHz/1MHz ±2.0%
Resistance 400Ω/4/40/400kΩ/4MΩ ±1.2%
40MΩ ±2.0%
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Charge battery indication yes
Display illumination yes
Power source 6F22 (9V) × 1
Dimensions 185 × 84 × 38 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 1 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Capacitance
  • does not measure the capacitance
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
