Digital Multimeter Accta AT-290

id: 891501
Digital Multimeter Accta AT-290
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 13.58
Add to cart
Overview
New
Rate product
0.65 kg
Availability in stock: HK
Warranty: 12 months
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and can be used for continuity, transistor and diode tests. Read more
USD 13.58
Add to cart
Add to wishlist
Compare
Compare
USD 13.58
Add to cart
Impossible to estimate the shipping cost

Frequently bought together

Tweezers Measuring Probe UNI T UT L01
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock: HK
Shipping cost
ID: 834649 0.061 kg
Description

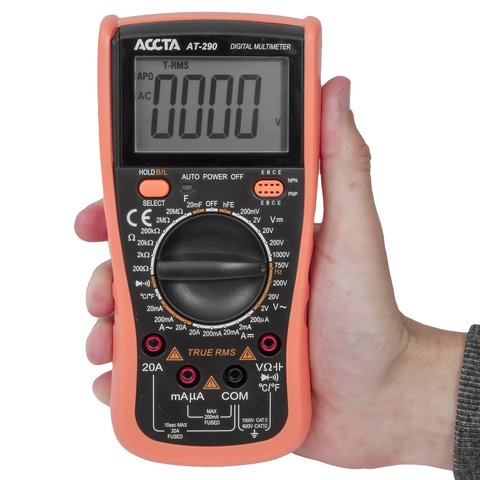

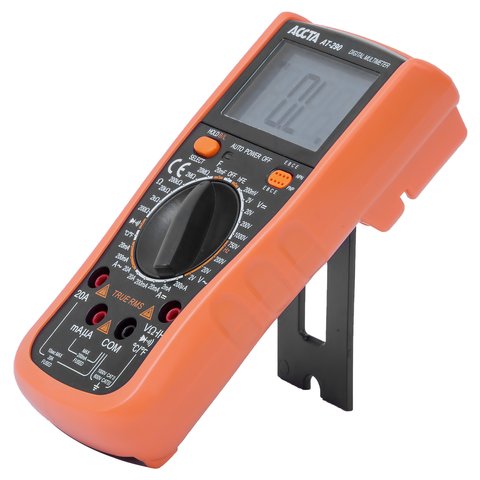

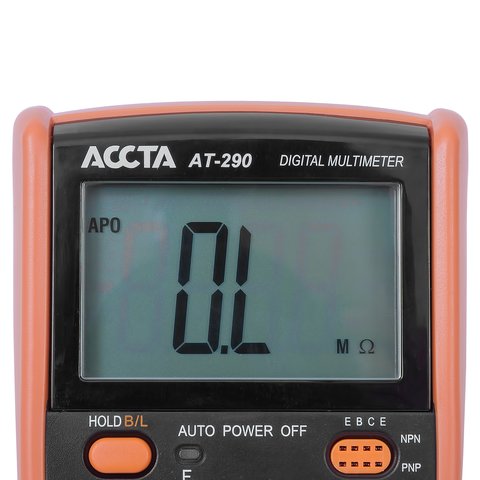

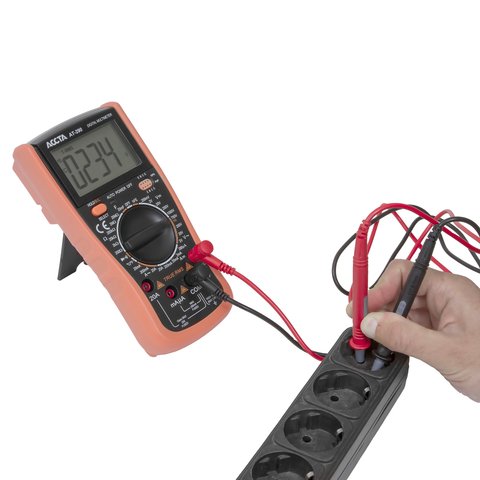

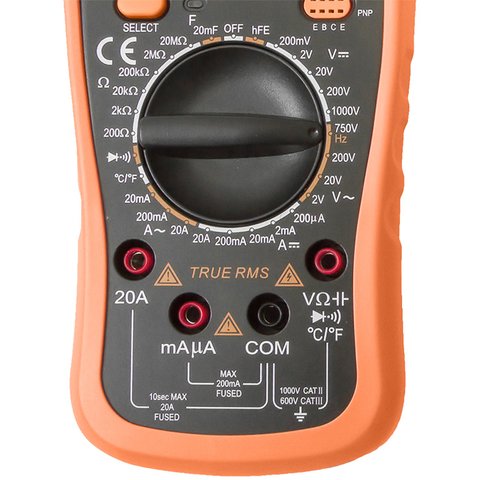

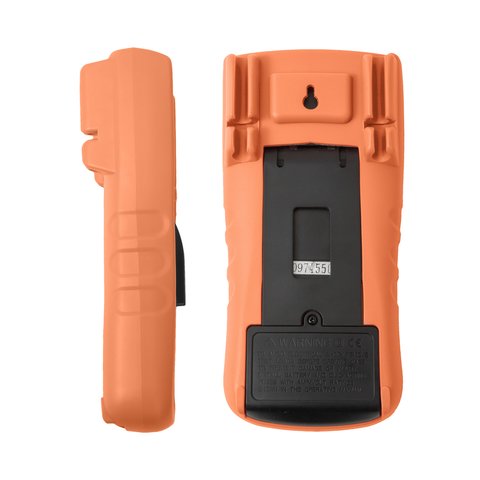

Accta AT-290 is a digital True RMS multimeter that is characterized by multiple measurements (voltage, current, resistance, capacitance, temperature) and tests (diode, transistor, continuity). The device is equipped with LCD with backlight and is powered from a 9 V battery.

Features

  • Multiple measurements:
    • DC/AC voltage;
    • DC/AC current;
    • capacitance;
    • resistance;
    • temperature;
    • transistor testing;
    • diode testing;
    • continuity test.
  • LCD with backlight.
  • Continuity buzzer.
  • 200 mA fuse protection.
  • Shockproof protection.
  • True RMS.
  • Auto power off.
  • Manual ranging.
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Function Range Accuracy
DC Voltage 200 mV / 2 V / 20 V / 200 V ±(0.5%+3)
1000 V ±(0.8%+10)
AC Voltage 2 V / 20 V / 200 V ±(0.8%+5)
750 V ±(1.2%+10)
DC Current 200 µA / 2 mA / 20 mA / 200 mA / 20 A ±(0.8%+10)
AC Current 20 mA / 200 mA / 20 A ±(2.0%+5)
Resistance 200 Ω ±(0.8%+5)
2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ ±(0.8%+3)
20 MΩ ±(1.0%+25)
Capacitance 2 nF ±(5.0%+40)
20 nF / 200 nF /2 µF / 20 µF / 200 µF ±(2.5%+20)
2000 µF / 20 mF ±(5.0%+10)
Temperature -20~1000 °C <400°C±(1.0%+5)
≥400°C±(1.5%+15)
General Specifications
Power 9 V battery (6F22)
Input impedance 10 MΩ
Sampling rate 3 times/s
AC Frequency response 40-1000 Hz
Display LCD, 61 × 36 mm
Dimensions 175 × 93 × 55 mm
Weight 400 g (with battery)

Package Contents

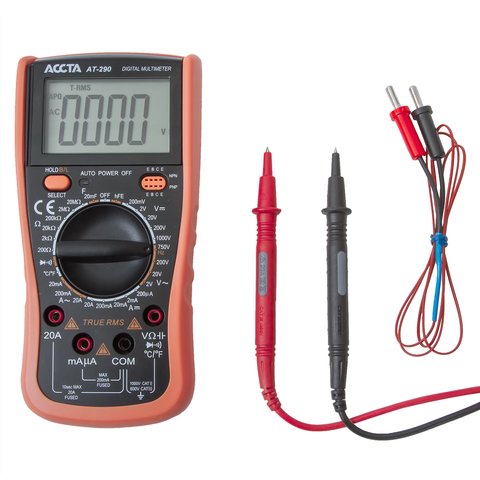

  • Digital Multimeter Accta AT-290 — 1 pc.
  • Test Leads — 1 set.
  • Temperature Probe — 1 pc.
  • User Manual — 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 2000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 20 000 µF
DC
  • up to 20 A
AC
  • up to 20 A
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
