Overview

Replacement die for RG 58,59,62,174. Compatible with Pro'sKit CP-3006FD2, CP-3006FD36, CP-3006FD45, 1PK-3003FD28, CP-3006FS2, CP-3005F, CP-3006FD46. Read more
Price coming soon
Price coming soon
Impossible to estimate the shipping cost

Description

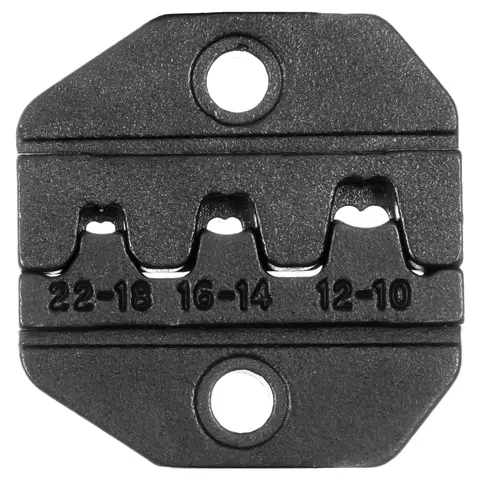

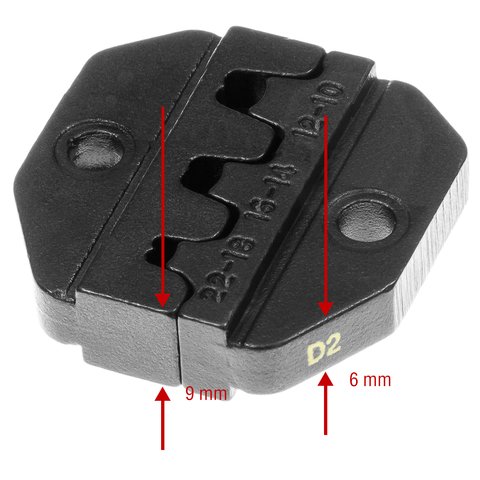

Pro'sKit 1PK-3003D2 is a replacement crimper die for commercial type non-insulated open barrel connectors. Crimper die is made of carbon steel and is suitable for a wide range of Pro'sKit crimpers.

Technical Specifications

Cable types RG 58,59,62,174
Connectors commercial type non-insulated open barrel connectors
Application 0.5 – 6.0 mm²
Material Carbon steel S45C

Compatibility

Comparative Specifications

Model Outline Application Connectors
Pro'sKit 1PK-3003D1 1PK-3003D1 Connectors: ring and fork insulated.
Wire cross section: 0.325-5.261 mm²
insulated
Pro'sKit 1PK-3003D2 1PK-3003D2 Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.325-3.31 mm²
4
Pro'sKit 1PK-3003D4 1PK-3003D4 Connectors: SMA & SFR.
Wire cross section: optical fiber .095"
SMA-SFR
Pro'sKit 1PK-3003D10 1PK-3003D10"" Connectors: BNC-F. Cable type: RG 59,6.
Wire cross section: .255", .320", .350"
BNC-F
Pro'sKit 1PK-3003D11 1PK-3003D11 Connectors: 8P8C/RJ45. 8P8C-RJ45.png
Pro'sKit 1PK-3003D12 1PK-3003D12 Connectors: 6P2C/RJ11-RJ12. 4P4C-RJ22
Pro'sKit 1PK-3003D13 1PK-3003D13 Connectors: DEC MMJ 6P2C/RJ11. DEC_MMJ
Pro'sKit 1PK-3003D14 1PK-3003D14 Connectors: 8P8C/RJ45. 8P8C-RJ45
Pro'sKit 1PK-3003D16 1PK-3003D16 Connectors: 4P4C/RJ22. 4P4C-RJ22
Pro'sKit 1PK-3003D17 1PK-3003D17 Connectors: 10P10C/RJ50. 10P10C-RJ50
Pro'sKit 1PK-3003D17-MA 1PK-3003D17-MA Connectors: shielded 8P8C/RJ48 Hirose-type. Hirose
Pro'sKit 1PK-3003D21 1PK-3003D21 Connectors: mini insulated ring and fork terminals.
Wire cross section: 0.28-1.21 mm²
insulated
Pro'sKit 1PK-3003D36 1PK-3003D36 Connectors: BLS, HU, PHU, MF contacts.
Wire cross section: 0.05-0.25/0.35-0.9 mm²
D-Sub_4
Pro'sKit CP-236DC CP-236DC Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm²
4
Pro'sKit CP-236DE CP-236DE. Connectors: pin terminals (insulated, insulated double, non-insulated).
Wire cross section: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm²
connectors
Pro'sKit CP-236DM5 CP-236DM5 Connectors: Molex.
Wire cross section: round cable up to Ø5.2 mm
Molex
Pro'sKit CP-236DM6 CP-236DM5 Connectors: Molex 8P8C/RJ45.
Wire cross section: round cable up to Ø5.8 mm
Molex
Pro'sKit CP-236DN CP-236DN Connectors: ring and fork non-insulated.
Wire cross section: 1.5 / 2.5 / 6 / 10 mm²
non-insulated
Pro'sKit CP-236DQ CP-236DQ Connectors: short shielded 8P8C/RJ45 Hirose-type. Hirose
Pro'sKit CP-236DQ1 CP-236DQ1 Connectors: shielded 8P8C/RJ45 Hirose-type. Hirose
Pro'sKit CP-236DR CP-236DR Connectors: ring and fork insulated.
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm²
insulated
Pro'sKit CP-336DG CP-336DG Connectors: BNC. Cable type:: RG 58, 59, 62, 174, optical fiber.
Wire cross section: 043", .068", .100", .137", .213", .255"
BNC
Pro'sKit CP-336DH1 CP-336DH1 Connectors: BNC-F. Cable type: RG 59, 6.
Wire cross section: .255", .320", .350"
BNC-F
Pro'sKit CP-336DI CP-336DI Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .255", .213", .093", .068", 0.315"
BNC
Pro'sKit CP-336DK4 CP-336DK4 Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .100", .128", .190", .213"
BNC
Pro'sKit CP-336DV CP-336DV Connectors: SMA, SMB, SMC & MCX.
Wire cross section: .043", .069", .100", .128", .151", .213"
SMA-SMB-SMC-MCX

Specifications

Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Inter-Locking & Non-Insulated Terminal Crimp Tools
  • Pro'sKit CP-3006FD2
  • Pro'sKit CP-3006FD36
  • Pro'sKit CP-3006FD45
  • Pro'sKit 6PK-230C
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Insulated Open Barrel Terminals Crimping Tools
  • Pro'sKit CP-3006FD47
  • Pro'sKit CP-3006FD46
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of MC4 Crimping Tools
  • Pro'sKit CP-3006FS2
  • Pro'sKit CP-371Y
  • Pro'sKit CP-371Y1
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Crimp Tool Frames
  • Pro'sKit CP-371
  • Pro'sKit CP-372
  • Pro'sKit 1PK-3003F
  • Pro'sKit CP-3005F
  • Pro'sKit 9PK-2026A
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Coaxial Cable Crimp Tools
  • Pro'sKit 1PK-3003FD28
  • Pro'sKit 6PK-230PA
  • Pro'sKit CP-371T
  • Pro'sKit CP-371M
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Twisted Pair Crimp Tools
  • Pro'sKit CP-372G
  • Pro'sKit CP-371G
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Pin Terminal Crimp Tools
  • Pro'sKit 6PK-301E
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Heavy Duty Crimping Tools
  • Pro'sKit 6PK-301N
Inter-Locking & Non-Insulated Terminal Crimp Die Set is compatible with the following models of Insulated Terminal Crimp Tools
  • Pro'sKit 6PK-301H
  • Pro'sKit 6PK-301R
Wire section
  • 0.25 - 3.5 sq, mm
