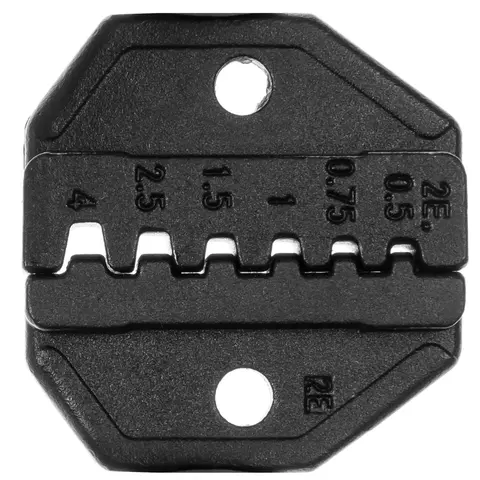

Crimper Die Pro'sKit CP-236DE

id: 813088
0.1 kg
Pin terminal for insulated or non-insulated ferrules (AWG 22/20/18/16/14/12) for Pro'sKit 6PK-301E, 6PK-230C, 6PK-301H, CP-371G, CP-372G, 6PK-230PA, CP-371T, 8PK-301F1, 8PK-301F2, CP-371Y, CP-371, CP-372.
Contact
sales team
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview
Die
die
CP-236DE
Hex size

AWG 22/20/18/16/14/12
DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm ²

Connector description
Connectors
Pin Terminal
Insulated or Non-insulated Ferrules

Interchangeable die Pro'sKit CP-236DE to be fixed with thumbscrews in the frame.
Complete tool with die: CP-372A.

Compatibility

Crimpers without Dies

Crimpers with Replacement Dies

Specifications
Pin Terminal Crimp Die Set is compatible with the following models of Crimp Tool Frames
  • Pro'sKit CP-371
  • Pro'sKit CP-372
  • Pro'sKit 1PK-3003F
  • Pro'sKit CP-3005F
  • Pro'sKit 9PK-2026A
Pin Terminal Crimp Die Set is compatible with the following models of Twisted Pair Crimp Tools
  • Pro'sKit CP-372G
  • Pro'sKit CP-371G
Pin Terminal Crimp Die Set is compatible with the following models of Insulated Terminal Crimp Tools
  • Pro'sKit 6PK-301H
  • Pro'sKit 6PK-301R
Pin Terminal Crimp Die Set is compatible with the following models of Coaxial Cable Crimp Tools
  • Pro'sKit 1PK-3003FD28
  • Pro'sKit 6PK-230PA
  • Pro'sKit CP-371T
  • Pro'sKit CP-371M
Pin Terminal Crimp Die Set is compatible with the following models of Inter-Locking & Non-Insulated Terminal Crimp Tools
  • Pro'sKit CP-3006FD2
  • Pro'sKit CP-3006FD36
  • Pro'sKit CP-3006FD45
  • Pro'sKit 6PK-230C
Pin Terminal Crimp Die Set is compatible with the following models of MC4 Crimping Tools
  • Pro'sKit CP-3006FS2
  • Pro'sKit CP-371Y
  • Pro'sKit CP-371Y1
Pin Terminal Crimp Die Set is compatible with the following models of Pin Terminal Crimp Tools
  • Pro'sKit 6PK-301E
Pin Terminal Crimp Die Set is compatible with the following models of Fiber Cable Connectors Crimp Tools
  • Pro'sKit 8PK-301F1
  • Pro'sKit 8PK-301F2
Pin Terminal Crimp Die Set is compatible with the following models of Heavy Duty Crimping Tools
  • Pro'sKit 6PK-301N
Pin Terminal Crimp Die Set is compatible with the following models of Insulated Open Barrel Terminals Crimping Tools
  • Pro'sKit CP-3006FD47
  • Pro'sKit CP-3006FD46
AWG
  • AWG 12 (2 mm)
  • AWG 14 (1.6 mm)
  • AWG 16 (1.3 mm)
  • AWG 18 (1 mm)
  • AWG 20 (0.8 mm)
  • AWG 22 (0.6 mm)
Wire section
  • 0.5 - 1.0 sq, mm
  • 1.5 - 2.5 sq, mm
