DC Power Supply FNIRSI DC-6006L

id: 899466
DC Power Supply FNIRSI DC-6006L
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 40.00
Add to cart
Overview
0.5 kg
Availability in stock: HK
Warranty: 6 months
Programmable single channel DC step-down power supply buck converter. Input voltage: 6 V-70 V, output voltage: 0-60 V, output current: 0-6 A, output power: 0-360 W.
USD 40.00
Add to cart
Add to wishlist
Compare
Compare
USD 40.00
Add to cart
Impossible to estimate the shipping cost
Description

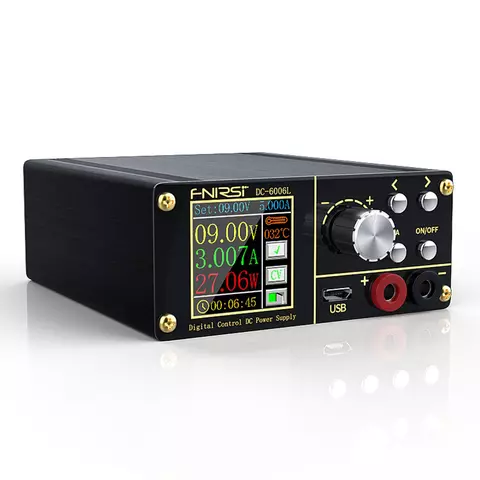

FNIRSI DC-6006L is a programmable single channel DC step-down power supply buck converter. This digital pulse device features compact size, simple operation, high reliability and stable performance.

Features

  • Lightweight, compact and portable device.
  • Equipped with a 1.44-inch high-definition LCD screen.
  • Comprehensive input interface:
    • two banana head interfaces;
    • 5.5 / 2.1 mm socket;
    • USB-C socket.
  • Stable output, accurate, safe and efficient.
  • The screen can be rotated, and the device can be placed horizontally or vertically.
  • Intelligent temperature control, powerful heat dissipation performance: real-time detection of device temperature and power, when the temperature is greater than 40 °C and the output current is greater than 2 A, the fan starts automatically, and automatically turns off when the temperature or current is lower.
  • PC connection control, more convenient control.
  • Comprehensive protection, safe and reliable: input anti-reverse connection, in the protection interface, adjustable over voltage protection (OVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), and overtime protection (OHP).
  • To turn off the device, you need to press and hold the power button.
  • Recover function of parameters to be settled earlier.
  • Software update
  • For remote control, you need to connect the device to a PC and launch the application.

Technical Specifications

Read more
Description

FNIRSI DC-6006L is a programmable single channel DC step-down power supply buck converter. This digital pulse device features compact size, simple operation, high reliability and stable performance.

Features

  • Lightweight, compact and portable device.
  • Equipped with a 1.44-inch high-definition LCD screen.
  • Comprehensive input interface:
    • two banana head interfaces;
    • 5.5 / 2.1 mm socket;
    • USB-C socket.
  • Stable output, accurate, safe and efficient.
  • The screen can be rotated, and the device can be placed horizontally or vertically.
  • Intelligent temperature control, powerful heat dissipation performance: real-time detection of device temperature and power, when the temperature is greater than 40 °C and the output current is greater than 2 A, the fan starts automatically, and automatically turns off when the temperature or current is lower.
  • PC connection control, more convenient control.
  • Comprehensive protection, safe and reliable: input anti-reverse connection, in the protection interface, adjustable over voltage protection (OVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), and overtime protection (OHP).
  • To turn off the device, you need to press and hold the power button.
  • Recover function of parameters to be settled earlier.
  • Software update
  • For remote control, you need to connect the device to a PC and launch the application.

Technical Specifications

Input voltage 6 V-70 V
Output voltage 0-60 V (ensure that the input voltage is greater than 1.1 times the output voltage)
Output current 0-6 A
Output power 0-360 W
Voltage resolution 0.01 V, accuracy: ±0.3%+3
Current resolution 0.001 A, accuracy: ±0.5%+5
Output ripple 100 mV (peak-to-peak)
Display LCD, 1,44"
Dimensions 102 mm × 88 mm × 38 mm
Weight 250 g

Sofware

Download FNIRSI DC-6006L Sofware.

Package Contents

  • DC Power Supply FNIRSI DC-6006L — 1 pc.
  • USB Cable — 1 pc.
Specifications
Type
  • pulse
  • programmable
Number of channels
  • single-channel
Max. Voltage
  • up to 60 V
Max. Current
  • up to 6 A
Indicator type
  • 1.44" color LCD
