Digital Clamp Meter Accta AT-600A
id: 891578
Digital Clamp Meter Accta AT-600A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 13.31
Overview
Video
Video
Video
New
0.6 kg
Availability in stock:
HK
Warranty: 12 months True RMS digital clamp meter designed to measure AC/DC voltage, AC current, resistance, capacitance, NCV, and to perform diode and continuity testing. Read more
USD 13.31
Description
Accta AT-600A is a digital True RMS clamp meter that can be used to measure AC/DC voltage, AC current, resistance, capacitance, and to perform diode and continuity testing. The device is equipped with a large 1999 count backlit LCD.
Features
- Measurement functions:
- True RMS;
- DC/AC voltage;
- resistance;
- AC current;
- capacitance;
- non-contact voltage testing (NCV);
- diode testing;
- continuity testing.
- Data hold ("HOLD/BL").
- Automatic power off after 15 minutes of inactivity
- LCD with backlight.
- "SELECT" button used to select the desired function.
- Maximum / minimum measurement value fixation ("MAX/MIN").
- Low battery indication.
- Over limit indication ("OL").
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,8% + 10) |
| 600 V | ±(1,0% + 10) | |
| AC Voltage | 2 V / 20 V / 200 V | ±(0,8% + 10) |
| 600 V | ±(1,0% + 10) | |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ±(1,0% + 5) |
| 20 MΩ | ±(1,2% + 10) | |
| AC Current | 2 A / 20 A / 200 A / 600 A | ±(2,5% + 8) |
| Capacitance | 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 1000 μF | ±(5,0% + 8) |
| General Specifications | ||
| Display | 1999 digit LCD | |
| Diameter | 32 mm | |
| Sampling rate | 3 times/s | |
| Working temperature | 0..40°C at a humidity no more than 80% | |
| Power | AAA battery 1.5 V × 2 pcs. | |
| Dimensions | 193 × 73 × 37 mm | |
| Weight | 220 g (with batteries) | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

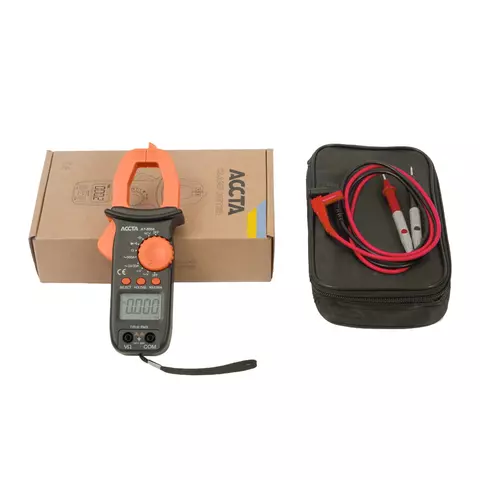

Package Contents
- Digital Clamp Meter Accta AT-600A — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
