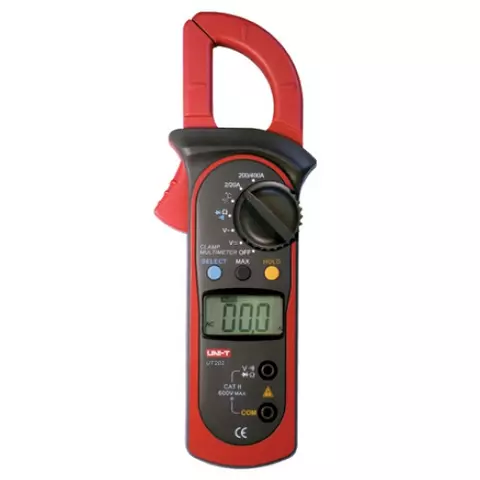

Digital Clamp Meter UNI-T UT202

id: 822358
Digital Clamp Meter UNI-T UT202
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Rate product
1 kg Warranty: 24 months
The clamp multimeter with overload protection measures AC and DC voltage, AC current, resistance and temperature, also performing diode check and continuity test. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter UNI T UT200A
Bestseller
Add to wishlist
ID: 845327
Digital Clamp Meter UNI-T UT200A
5 (1)
USD 15.52
Add to wishlist
Add to cart
The reliable digital clamp meter which measures AC and DC voltage, AC current, resistance and performs diode check and continuity test.
Availability in stock: HK
Shipping cost
ID: 845327 0.415 kg
True RMS digital clamp meter designed to measure AC/DC voltage, AC current, resistance, capacitance, NCV, and to perform diode and continuity testing.
Availability in stock: HK
Shipping cost
ID: 891578 0.6 kg
Description

Digital clamp meter UNI-T UT202 is a reliable and low consumption AC clamp multimeter. Digital clamp meter UNI-T UT202 measures AC and DC voltage, AC current, resistance and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Digital Clamp Meter UNI-T UT202 User Manuals

Download user manual for digital clamp meter UNI-T UT202

Digital Clamp Meter UNI-T UT202 Features

  • Measuring functions:
    • AC/DC voltage
    • AC current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
  • Auto ranging
  • Data hold function
  • Sleep mode
  • Full icon display
  • Low battery display
  • Maximum value hold
  • 28 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC61010, CAT II 600 V / CAT III 300 V

Digital Clamp Meter UNI-T UT202 and UT206A Comparative Specifications

Model UT202 UT206A
Display LCD, max. 1999 digits
35.6 × 18 mm
LCD, max. 3999 digits
37 × 18 mm
DC voltage Range 200 mV / 2 V / 20 V / 200 V / 600 V 400 mV / 4 V / 40 V / 400 V / 600 V
Accuracy ±(0.8%+1)
Input impedance 10 MΩ
Overload protection 600 V rms
AC voltage Range 2 V / 20 V / 200 V / 600 V 4 V / 40 V / 400 V / 600 V
Accuracy ±(1.2%+5)
Input impedance 10 MΩ
Overload protection 600 V rms
AC current Range 2 A / 20 A / 200 A / 400 A 400 A / 1000 A
Accuracy ±(1.5%+5)
Overload protection 400 A rms
Resistance Range 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Input impedance 10 MΩ
Temperature Range -40ºC ~ 1000ºC
Accuracy ±(1%+3) ±(2%+8)
Frequency Range to 10 MHz
Accuracy ±(0.1%+3)
Power supply AAA battery, 2 pcs.(3 V) 6F22 battery (9 V)
Dimensions, mm 210 × 75.6 × 30 236 × 97 × 40
Weight, g 220 350

Video

Youtube video

Youtube video

Digital Clamp Meter UNI-T UT202 Package

  • Clamp meter UNI-T UT202 (1 pc.)
  • Test lead (1 pc.)
  • Point contact temperature probe (1 pc.)
  • Carrying case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Digit Capacity
  • 1999
Type
  • for AC
Jaw diameter
  • diameter 28 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 20 MOhm
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
AC
  • up to 200 A
Frequency
  • up to 60 kHz
NCV
  • no
