Overview
0.85 kg Warranty: 24 months
Digital clamp meter measures AC current, AC/DC voltage, resistance, frequency, and temperature and can be used for diode checks and continuity testing.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 1000E
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 51.00
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 891581 0.9 kg
Digital Clamp Meter UNI T UT206B
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT206B
USD 53.19
Add to wishlist
Add to cart
True RMS clamp meter measures AC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898468 1 kg
Digital Clamp Meter UNI T UT205A
Bestseller
Add to wishlist

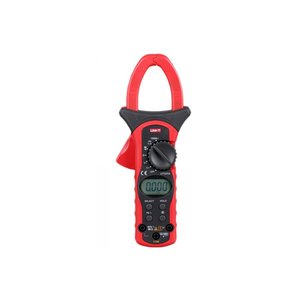

Digital Clamp Meter UNI-T UT205A
USD 37.30
Add to wishlist
Add to cart
Reliable clamp used for measuring current, voltage, resistance, frequency, duty cycle, and performing diode check and continuity test.
Bestseller
Availability in stock: HK
Shipping cost
ID: 886867 0.85 kg
Description

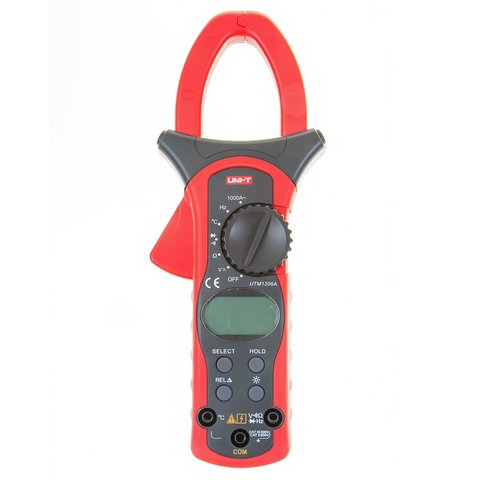

Digital clamp meter UNI-T UT206A is a reliable AC clamp multimeter. Digital clamp meter UNI-T UT206A measures AC current, AC/DC voltage, resistance, frequency, and temperature and can be used to perform diode checks and continuity tests.

Features

Read more
Description

Digital clamp meter UNI-T UT206A is a reliable AC clamp multimeter. Digital clamp meter UNI-T UT206A measures AC current, AC/DC voltage, resistance, frequency, and temperature and can be used to perform diode checks and continuity tests.

Features

  • Measuring functions:
    • AC/DC voltage
    • AC current
    • Resistance
    • Temperature
    • Frequency
    • Diode check
    • Continuity test
  • Auto ranging
  • Data hold function
  • Sleep mode
  • Full icon display
  • Low battery display
  • Display backlight
  • 40 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC61010, CAT II 600 V / CAT III 300 V

UNI-T UT202 & UT206A Comparative Specifications

Model UT202 UT206A
Display LCD, max. 1999 digits
35.6 × 18 mm
LCD, max. 3999 digits
37 × 18 mm
DC voltage Range 200 mV / 2 V / 20 V / 200 V / 600 V 400 mV / 4 V / 40 V / 400 V / 600 V
Accuracy ±(0.8%+1)
Input impedance 10 MΩ
Overload protection 600 V rms
AC voltage Range 2 V / 20 V / 200 V / 600 V 4 V / 40 V / 400 V / 600 V
Accuracy ±(1.2%+5)
Input impedance 10 MΩ
Overload protection 600 V rms
AC current Range 2 A / 20 A / 200 A / 400 A 400 A / 1000 A
Accuracy ±(1.5%+5)
Overload protection 400 A rms
Resistance Range 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Input impedance 10 MΩ
Temperature Range -40ºC ~ 1000ºC
Accuracy ±(1%+3) ±(2%+8)
Frequency Range to 10 MHz
Accuracy ±(0.1%+3)
Power supply AAA battery, 2 pcs.(3 V) 6F22 battery (9 V)
Dimensions, mm 210 × 75.6 × 30 236 × 97 × 40
Weight, g 220 350

User Manuals

Download user manual for digital clamp meter UNI-T UT206A

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

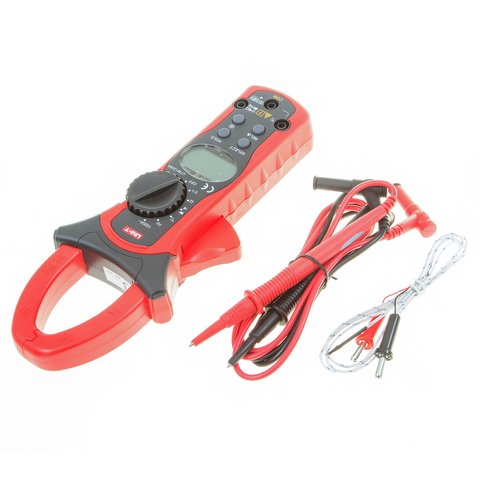

Package Contents

  • Digital Clamp Meter UNI-T UT206A (1 pc.)
  • Test lead (1 pc.)
  • Point contact temperature probe (1 pc.)
  • Vinil case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • resistance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
Type
  • for AC
Jaw diameter
  • diameter 40 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 10 MHz
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
