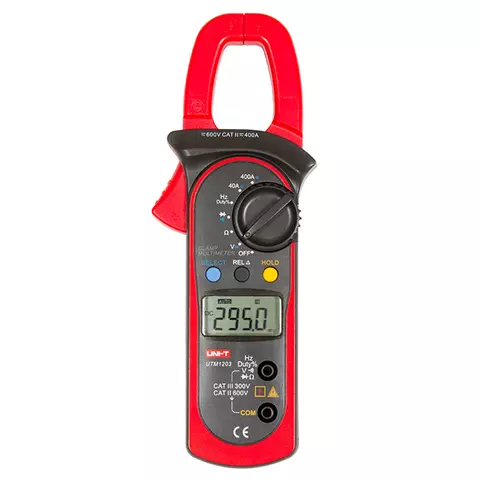

Digital Clamp Meter UNI-T UT203

id: 822362
0.8 kg Warranty: 24 month (s)
The reliable clamp multimeter measures AC/DC voltage and current, resistance, frequency, duty cycle and performes diode check and continuity test.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Digital clamp meter UNI-T UT203 is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT203 measures AC/DC voltage and current, resistance, frequency, duty cycle, also performing diode check and continuity test. This clamp meter has overload protection.

Digital Clamp Meter UNI-T UT203 User Manuals

Download user manual for digital clamp meter UNI-T UT203

Digital Clamp Meter UNI-T UT203 Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
    • Duty cycle
  • Auto ranging
  • Data hold function
  • Display "REL" mode
  • Sleep mode
  • Low battery display
  • 28 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Digital Clamp Meter UNI-T UT203 and UT207A Comparative Specifications

Model UT203 UT207A
Display LED, max. 3999 digits
36 × 18 mm
LED, max. 3999 digits
47 × 30 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
AC voltage Range 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1%+5) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
DC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2%+3) ±(1.5%+5)
Overload protection 400 A DC/AC 1000 A DC/AC
AC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2.5%+5) ±(2%+2)
Overload protection 400 A DC/AC 1000 A DC/AC
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Frequency Range 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Temperature -40ºC ~ 1000ºC
Capacitance 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 100 µF
Power supply 6F22 battery (9 V)
Dimensions, mm 208 × 76 × 30 285.3 × 105 × 44.5
Weight, g 260 533

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Digital Clamp Meter UNI-T UT203 Package

  • Clamp meter UNI-T UT203 (1 pc.)
  • Test lead (1 pair)
  • Carrying case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
Range Selection
  • auto range
  • manual range
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 28 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 1 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
DC
  • up to 400 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
AC
  • up to 400 A
NCV
  • no
